Pinpoint Tests

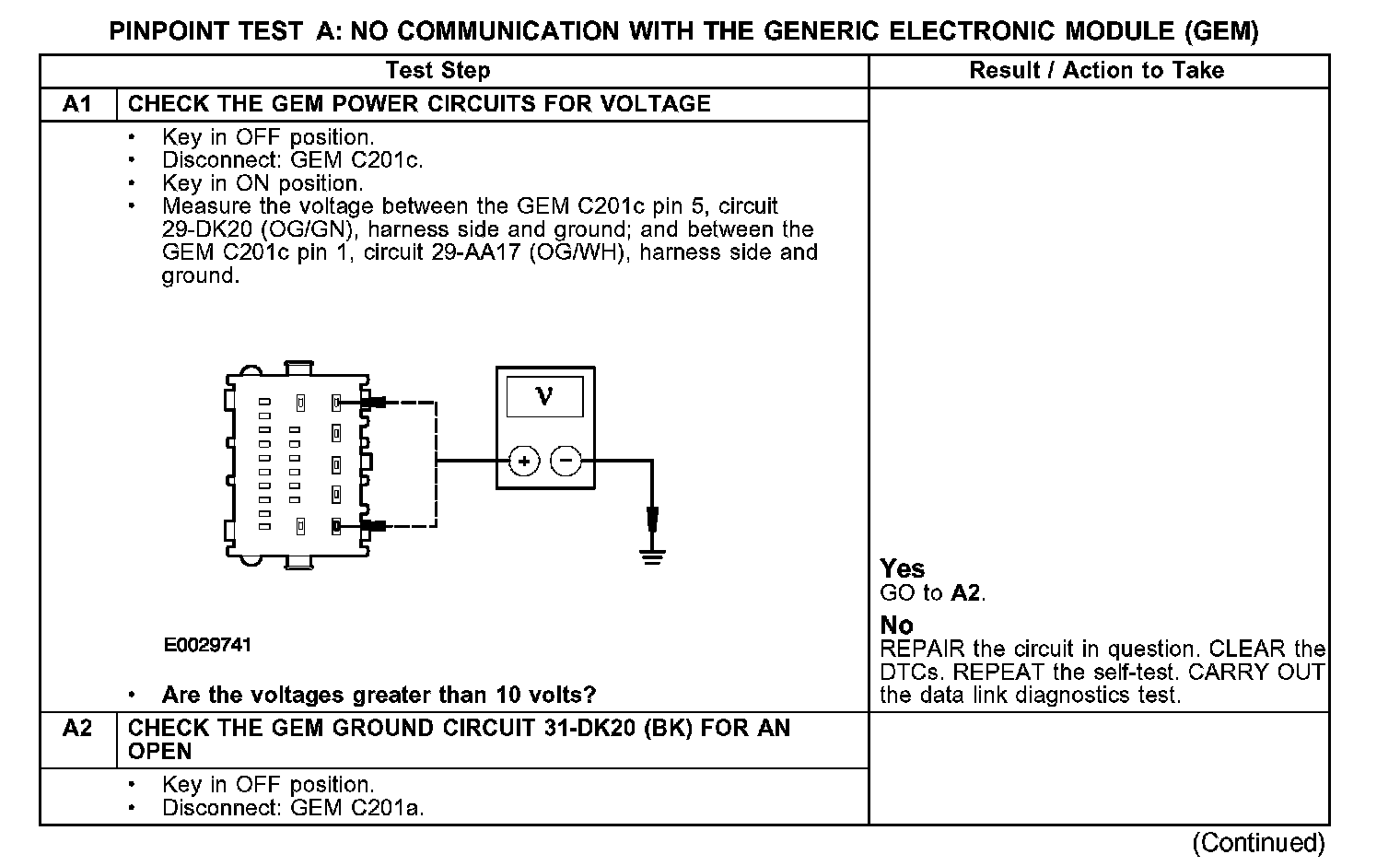

PINPOINT TEST A: NO COMMUNICATION WITH THE GENERIC ELECTRONIC MODULE (GEM)


A1-A2:

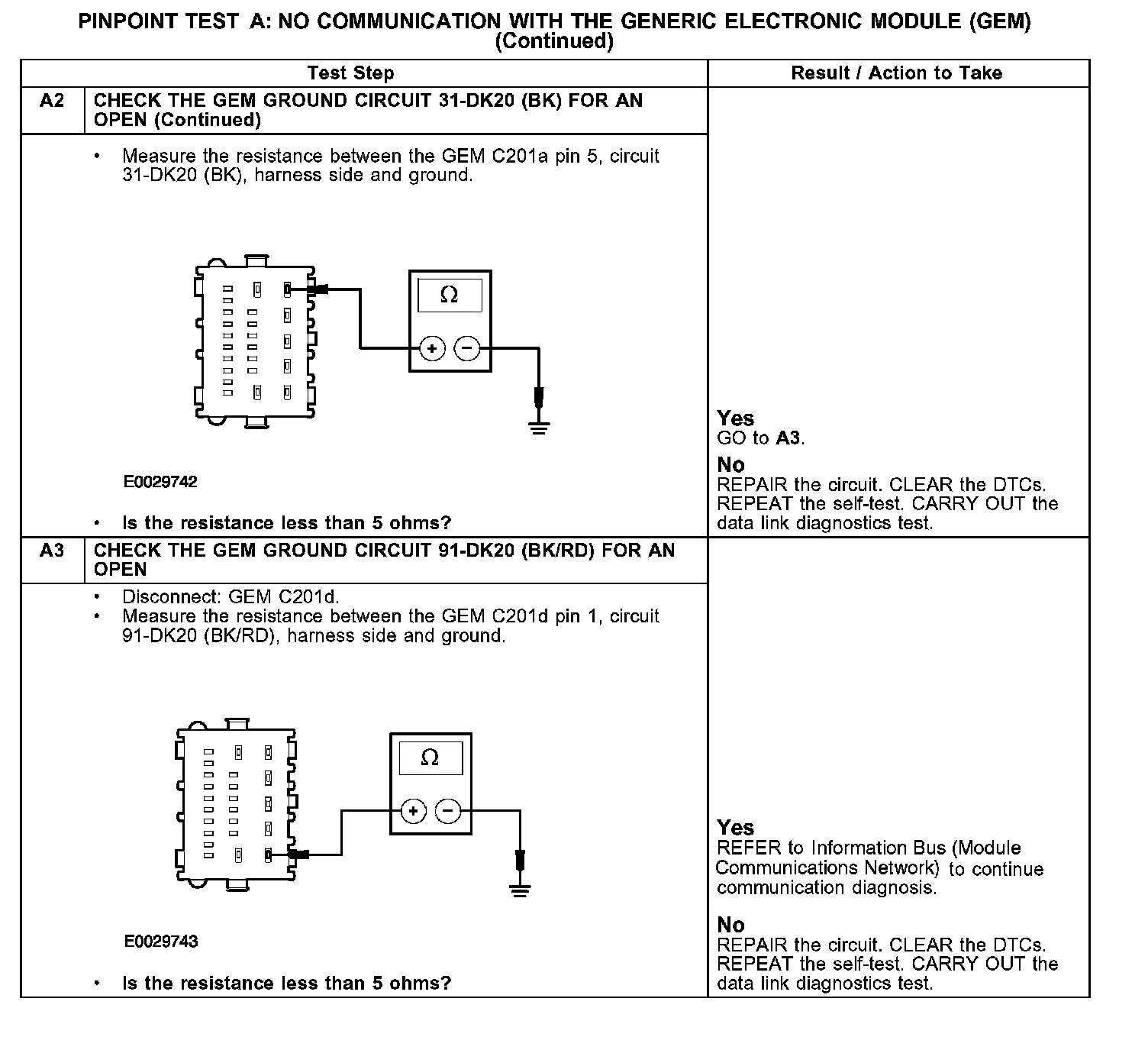

A2-A3:
