Component Location Index

PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

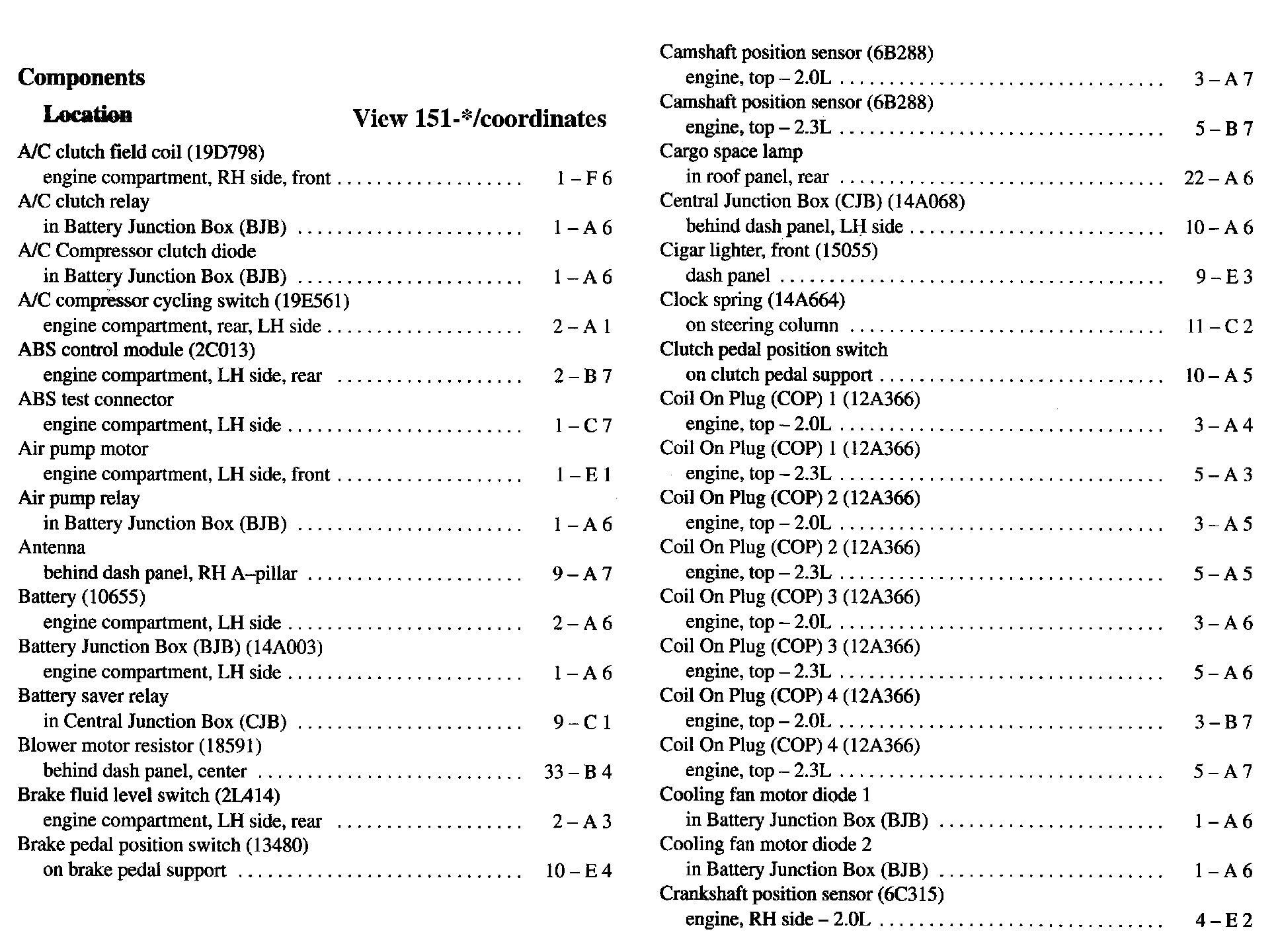

A/C-Cr:

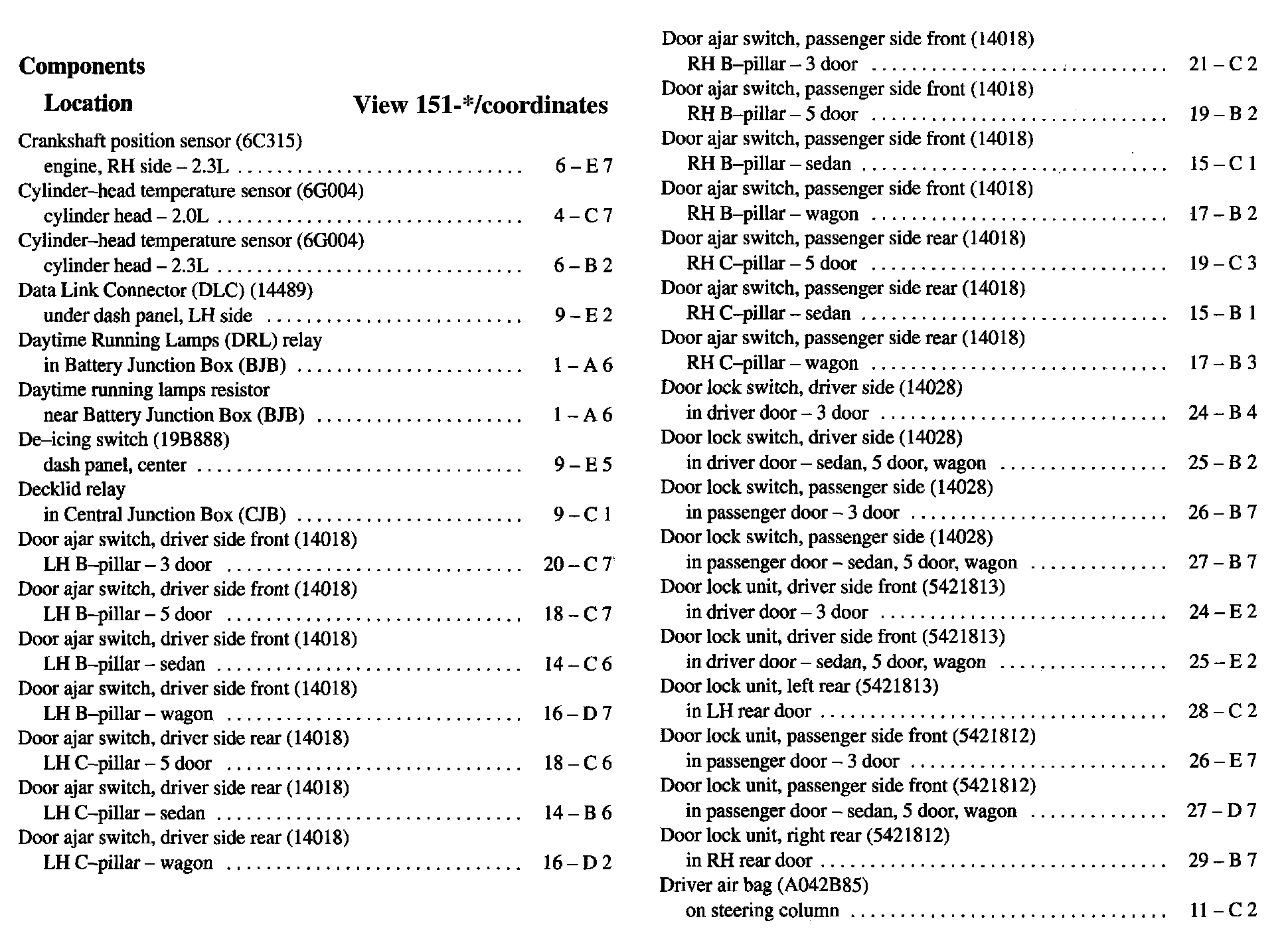

Cr-Dr:

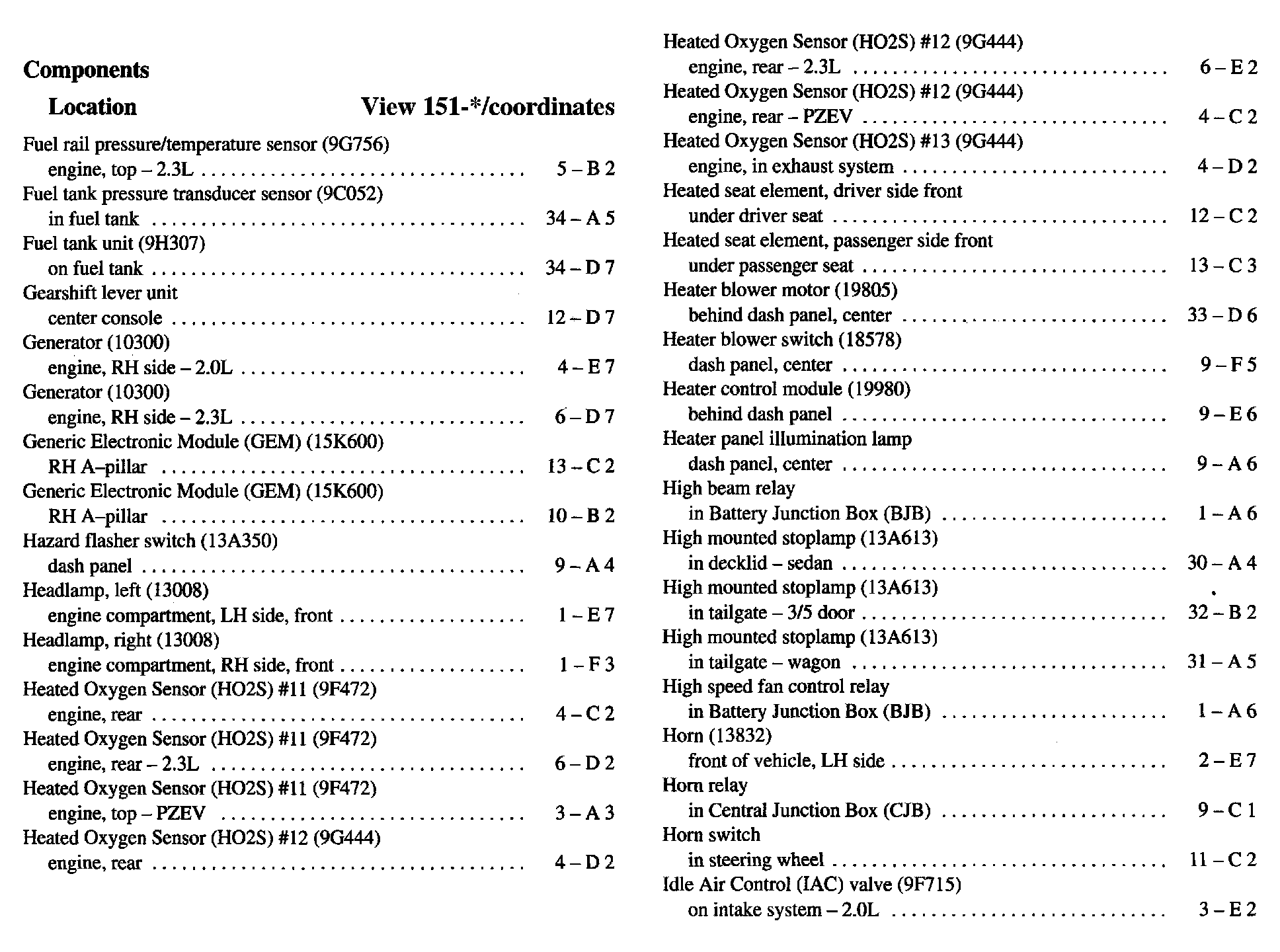

Dr-Fu:

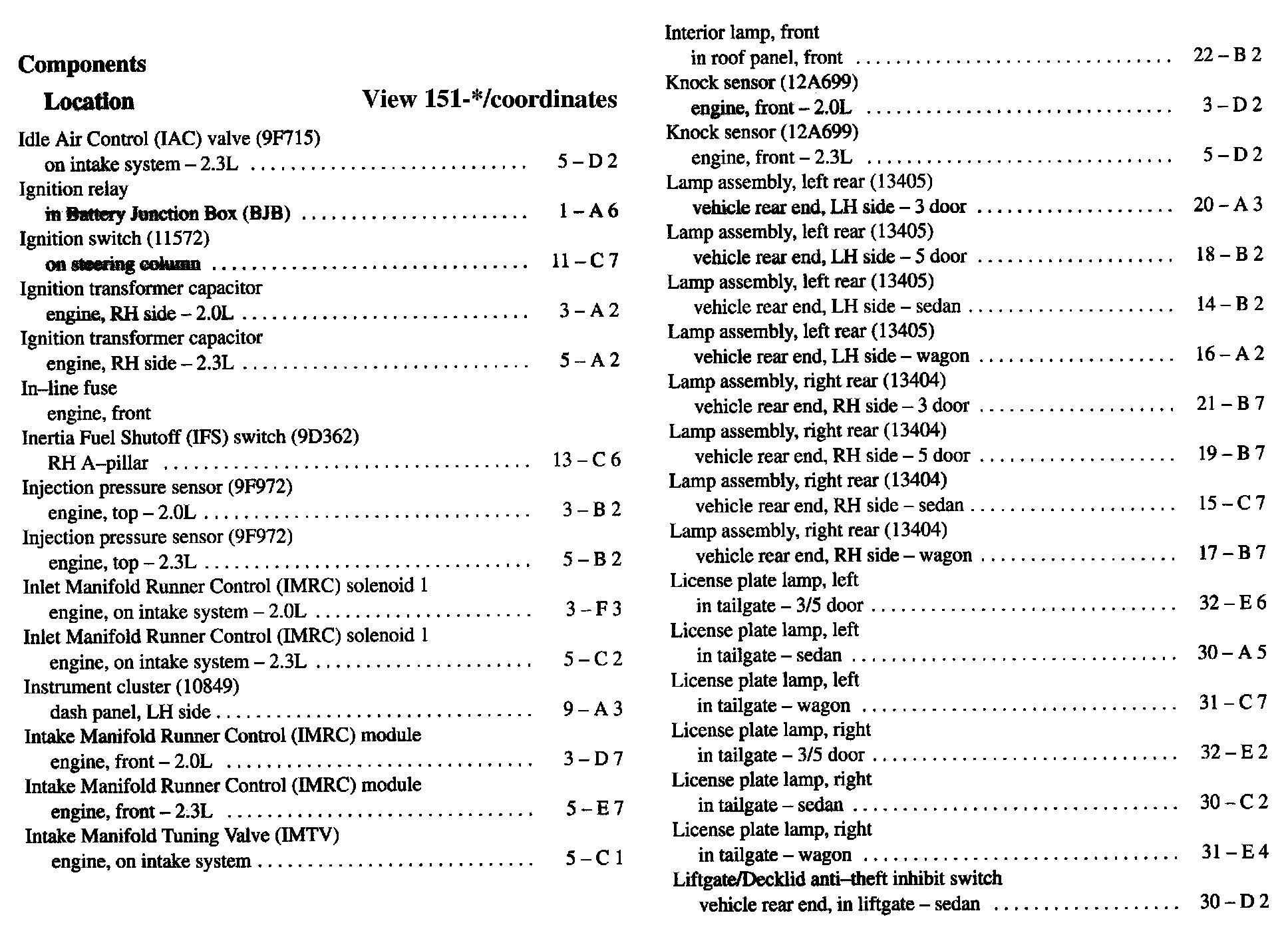

Fu-Id:

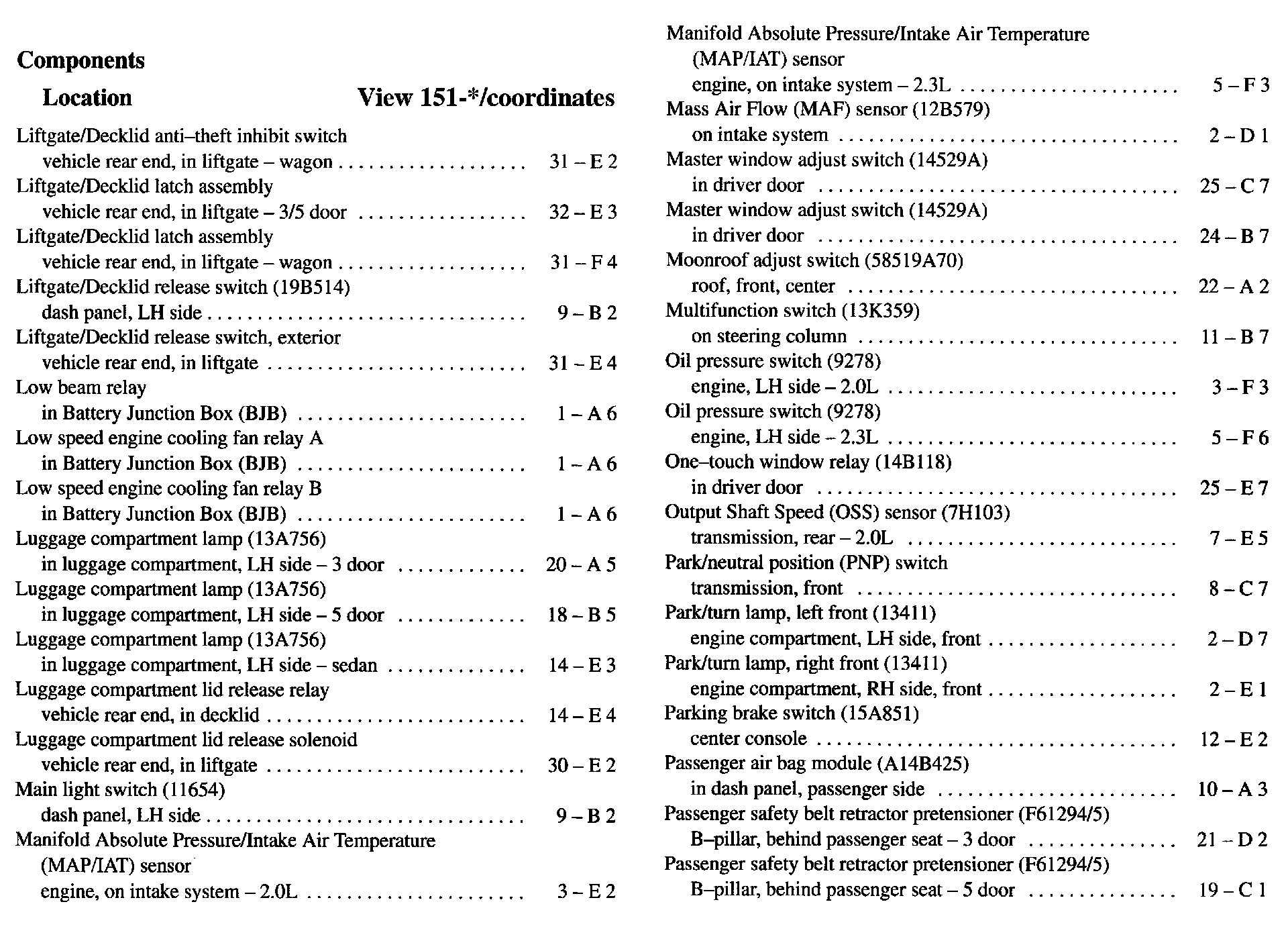

Id-Li:

Li-Pa:

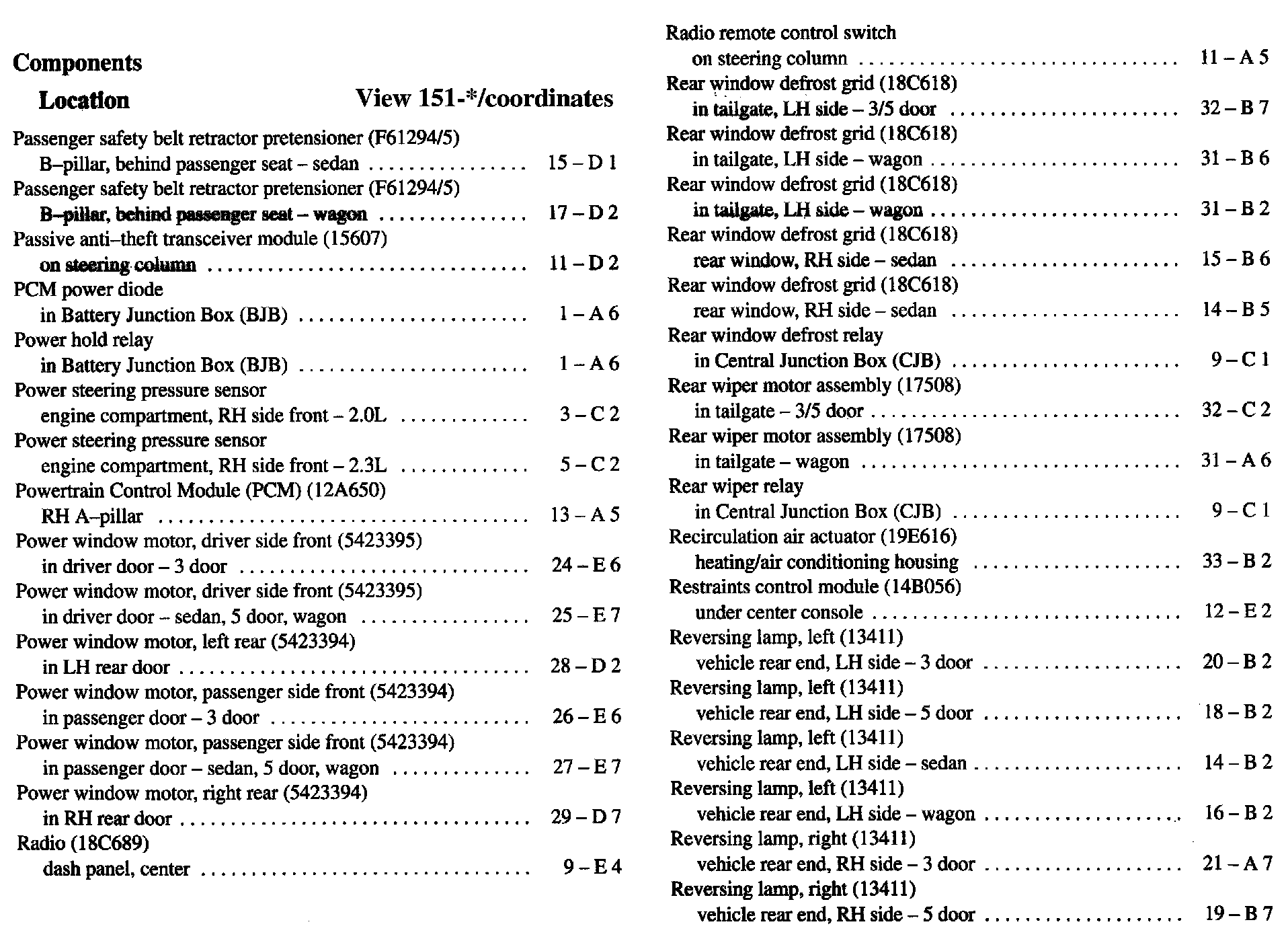

Pa-Re:

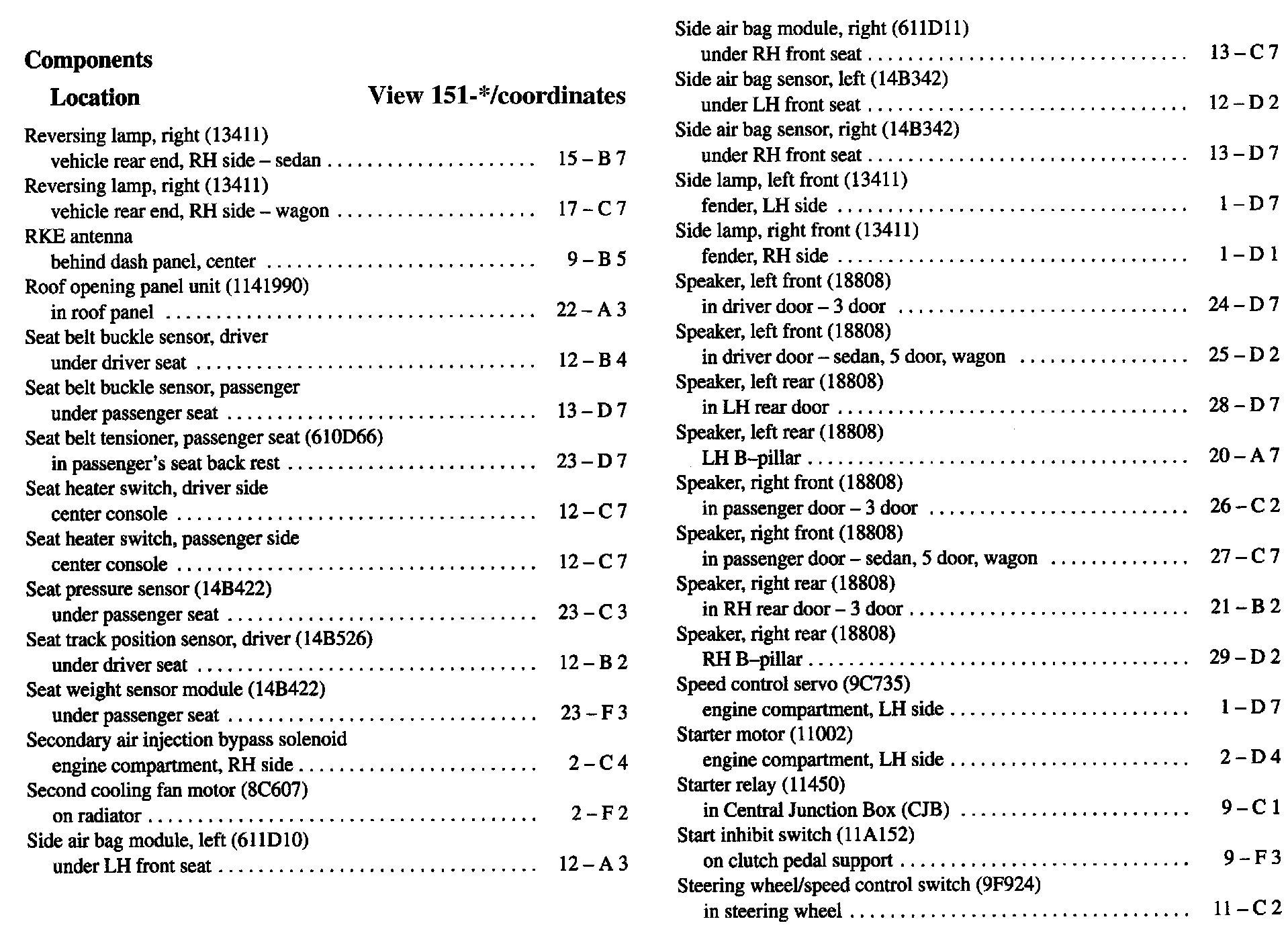

Re-St:

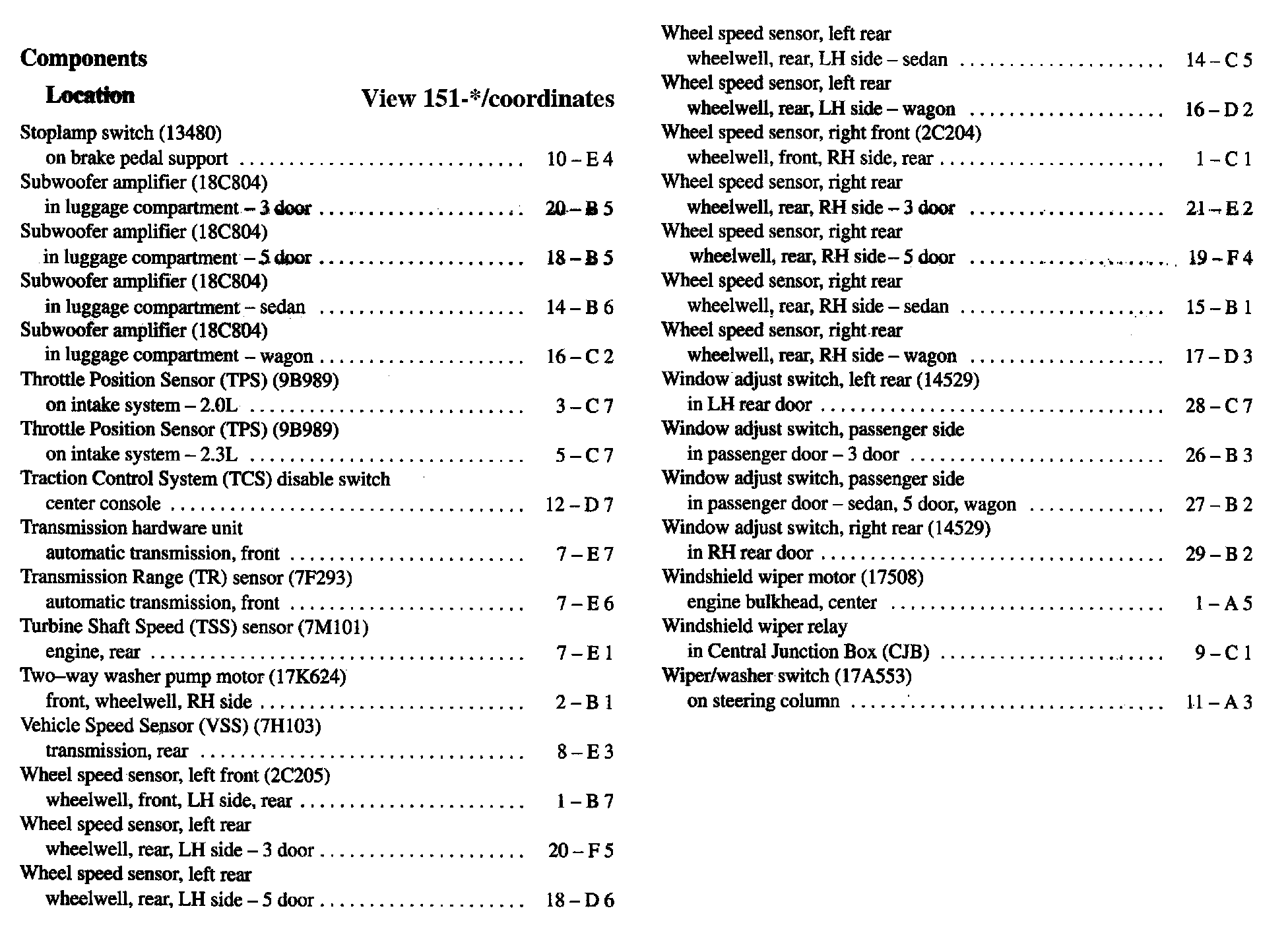

St-Wi:
