Connector Location Index

PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

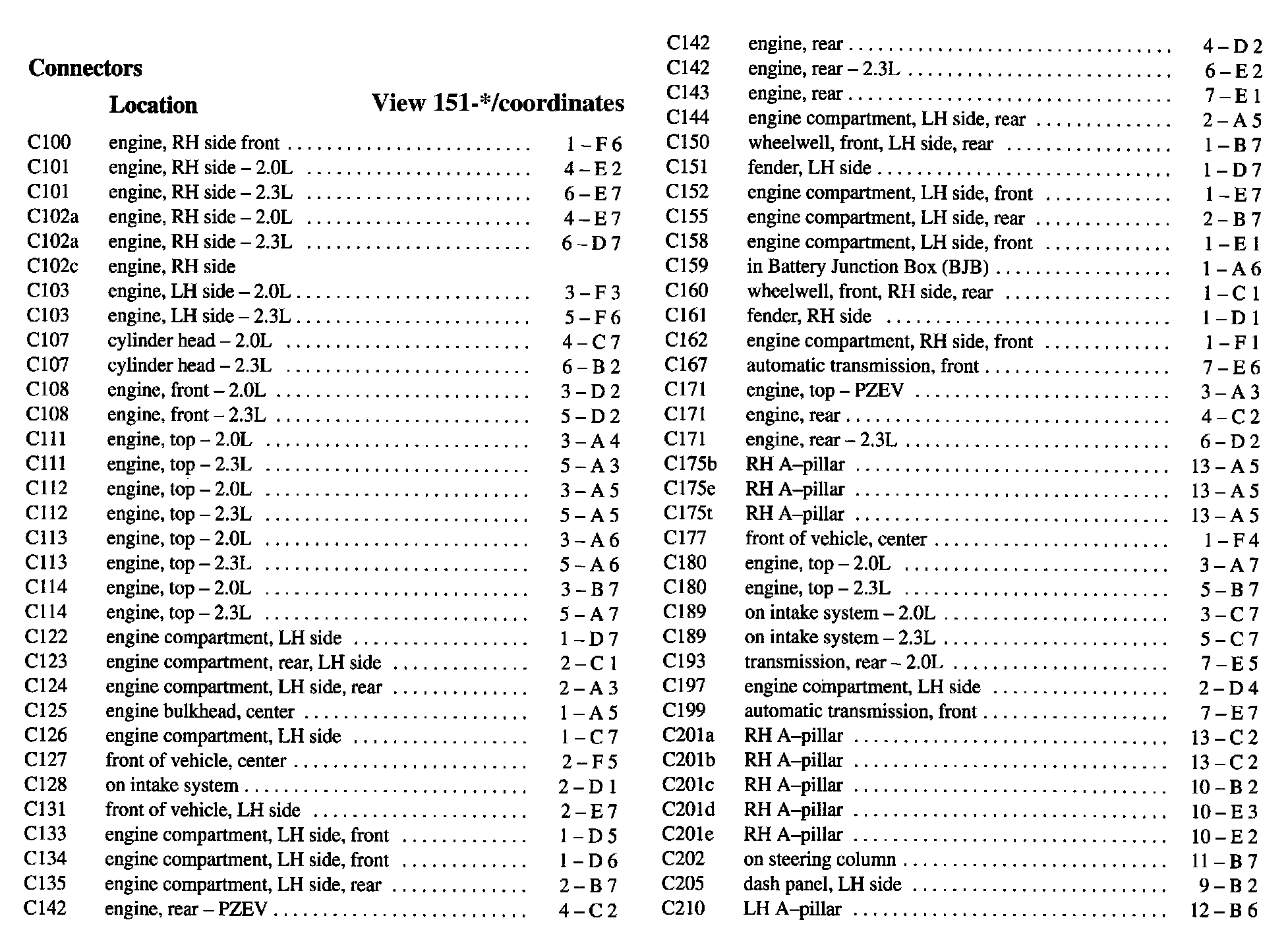

C100-C210:

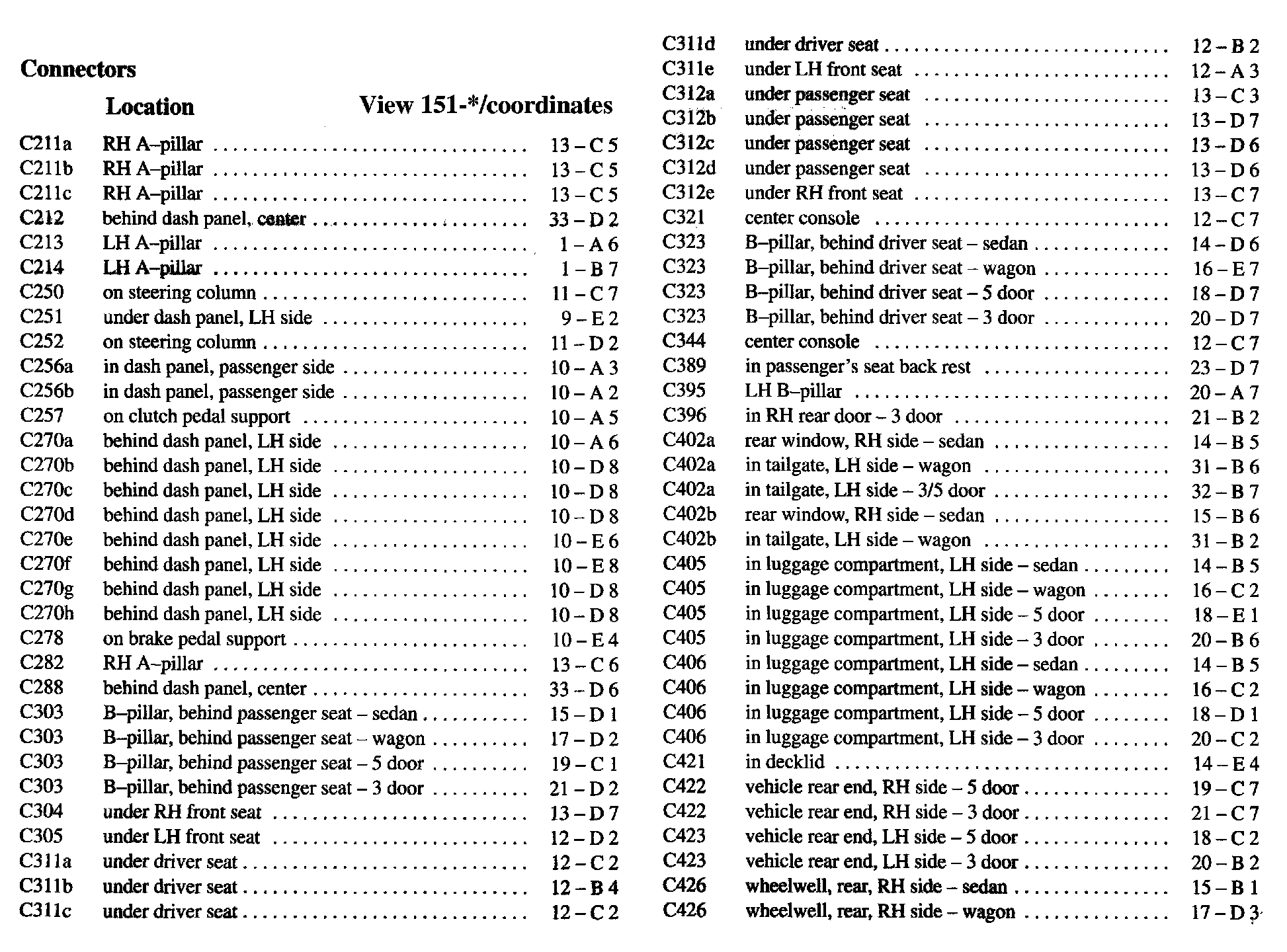

C211a-C426:

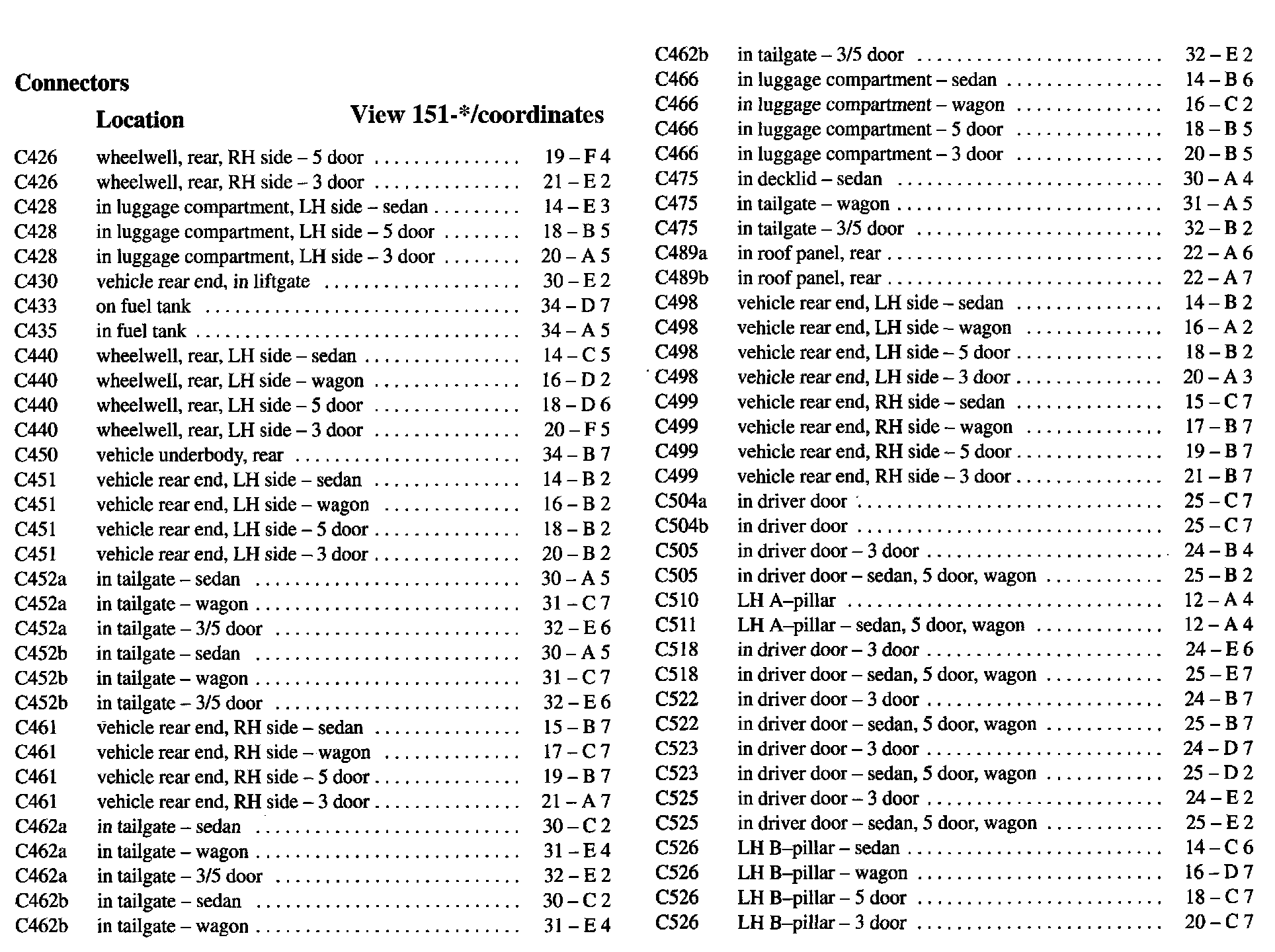

C426-C526:

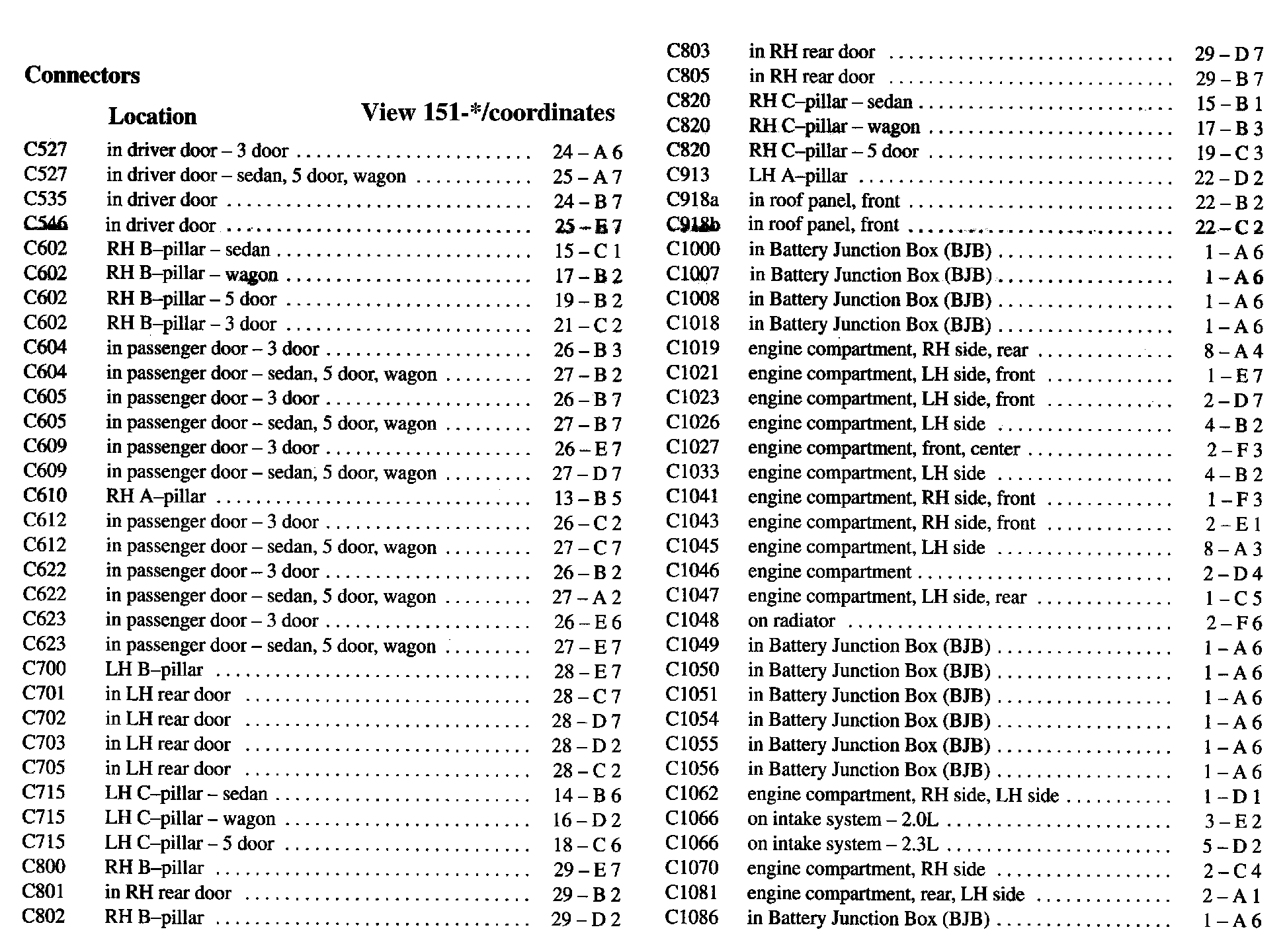

C527-C1086:

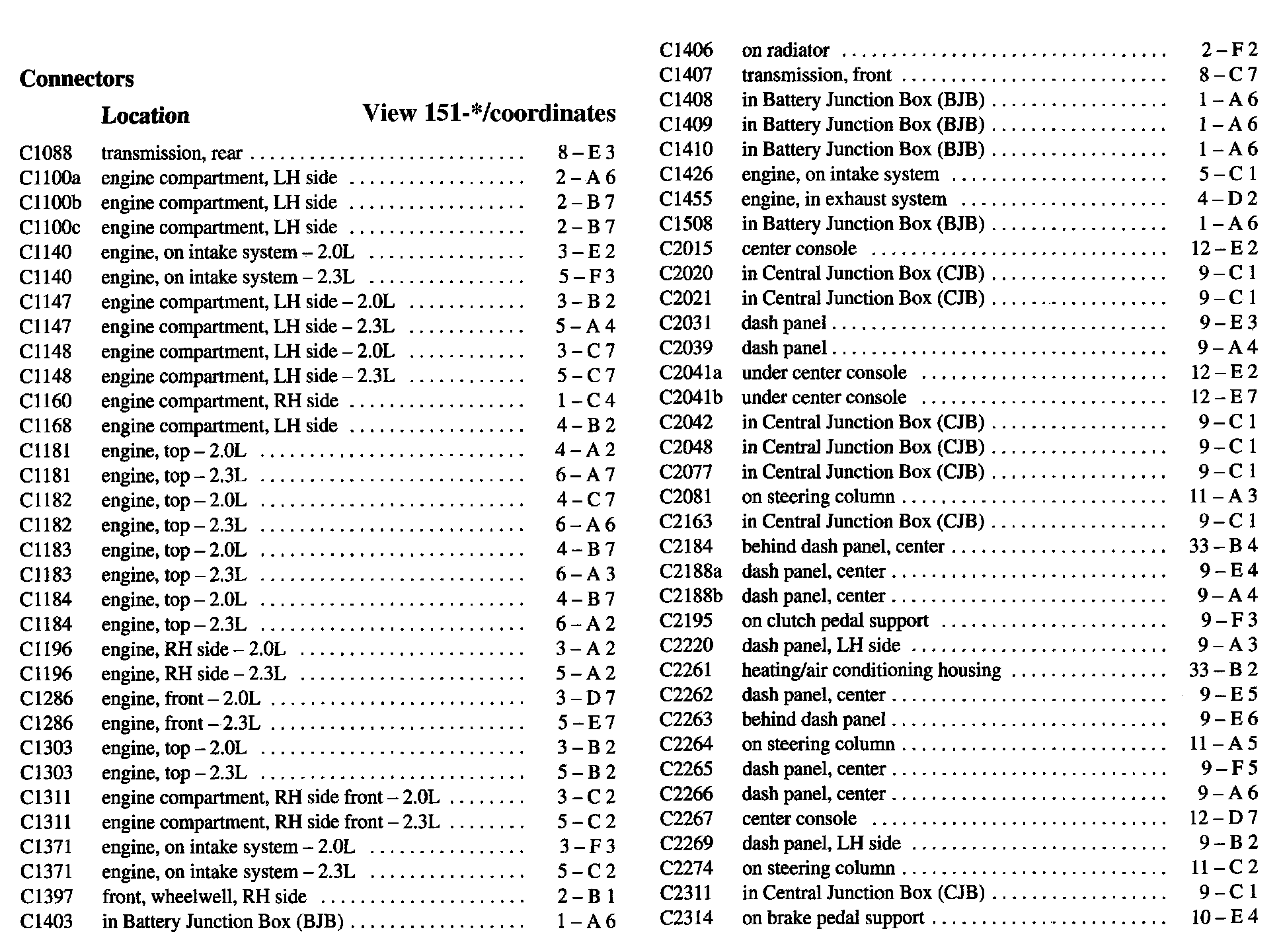

C1088-C2314:

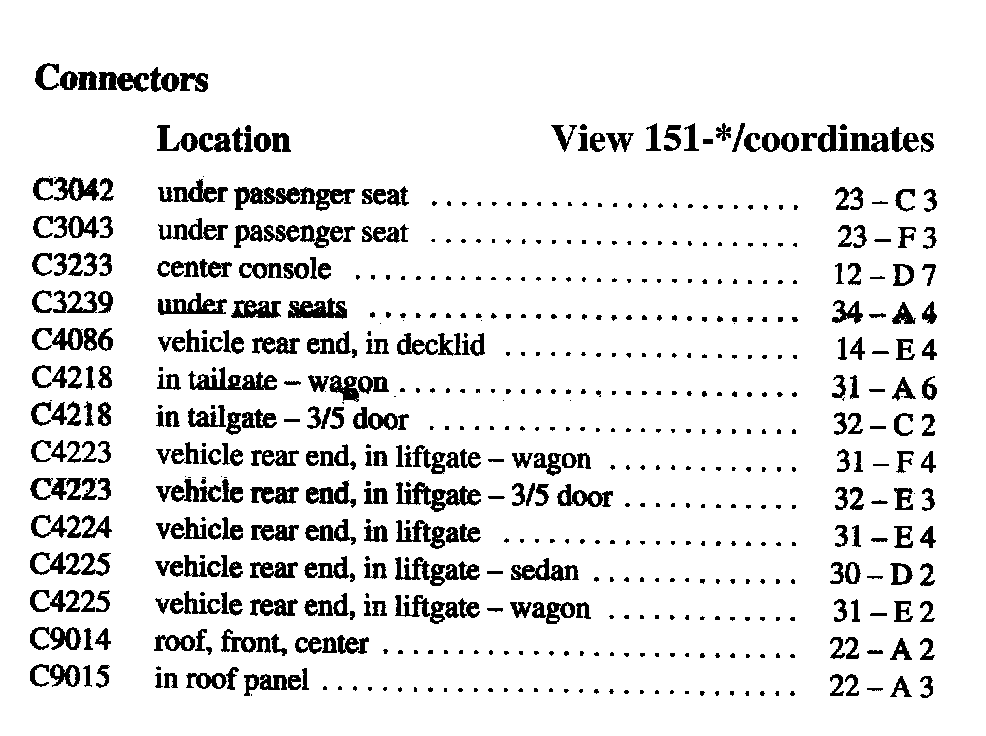

C3042-C9015:
