Rear Toe Adjustment

General Equipment

Adjustment

1. NOTE: This operation should be carried out on a flat surface and in accordance with the manufacturer's instructions for the particular wheel alignment equipment used.

Inspect all suspension components for signs of damage or wear.

2. Check and, if necessary, adjust the tire pressures to specification.

3. Make sure the vehicle is at curb weight and that the spare wheel, jack and vehicle tools are stowed in their designated positions. Additional items should be removed from the vehicle.

4. Bounce the vehicle to make sure that the suspension is in its normal resting position.

5. Using suitable Four wheel alignment equipment, check the toe setting.

6. Raise and support the vehicle.

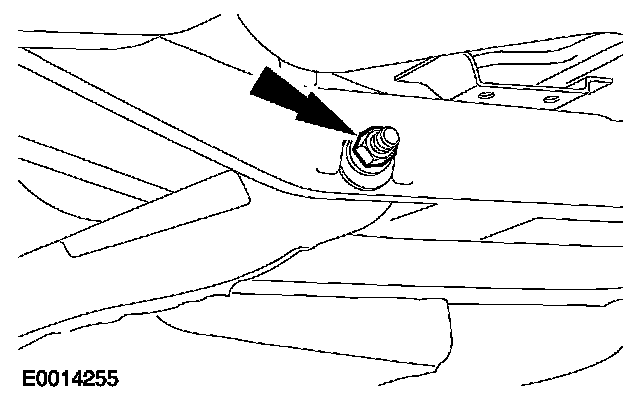

7. Loosen the nut.





8. Adjust the toe setting.

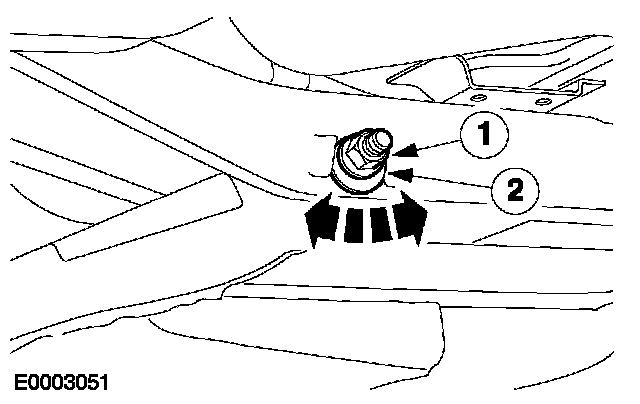

^ Rotate the bolt and eccentric washer to achieve the required setting.

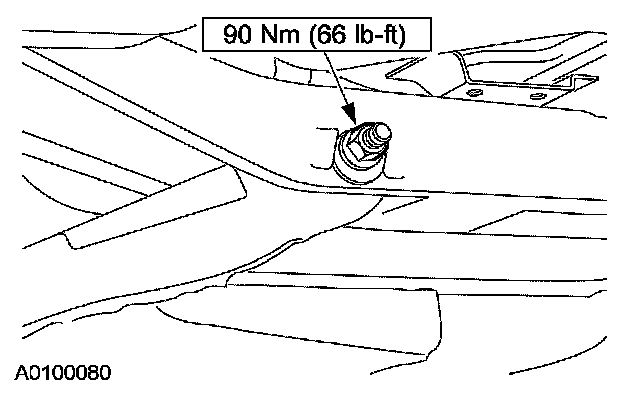

9. Tighten the nut.
