Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR

Removal and Installation
1. Disconnect the battery ground cable.

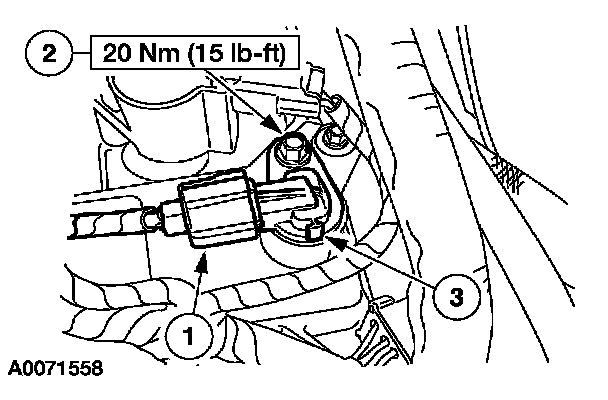

2. Remove the camshaft position (CMP) sensor.
1. Disconnect the CMP sensor electrical connector.
2. Remove the bolt retaining the CMP sensor.
3. Remove the CMP sensor.

3. NOTE: Lubricate the O-ring with clean engine oil.

To install, reverse the removal procedure.
