Output Shaft Speed (OSS) Sensor: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Place a drain pan beneath the output shaft speed (OSS) sensor.
  3. Remove the OSS sensor.
    • Disconnect the electrical connector.
    • Remove the bolt.
    • Inspect the OSS bore.

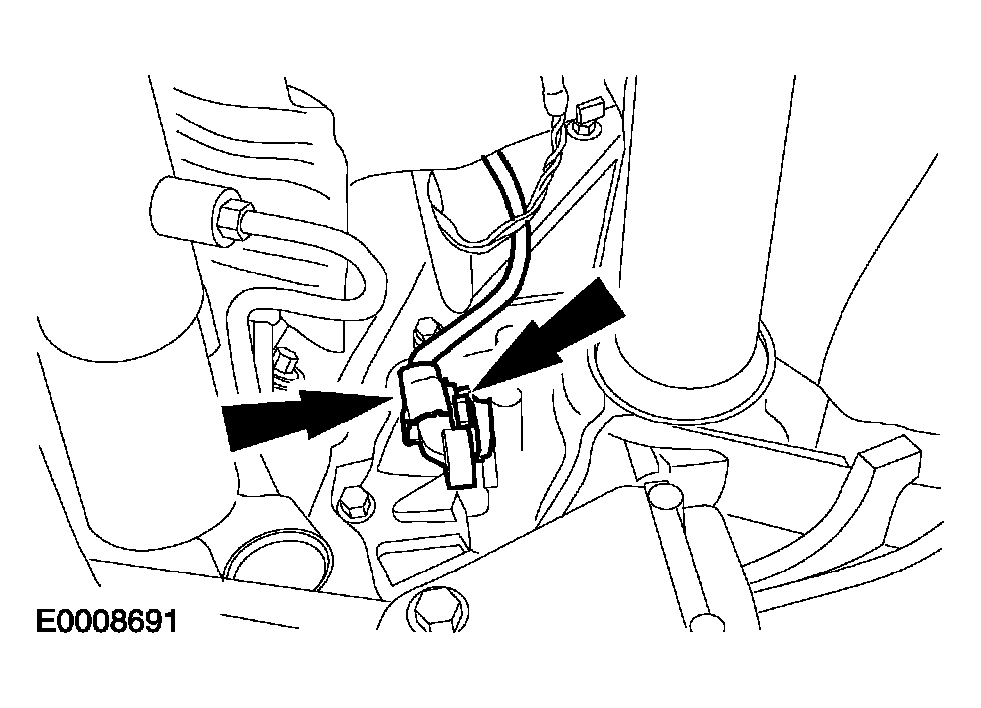

    Fig 1: Removing OSS Sensor
    G03951297Courtesy of FORD MOTOR CO.
  4. Inspect the O-ring seal for nicks or cuts; install a new O-ring if necessary.

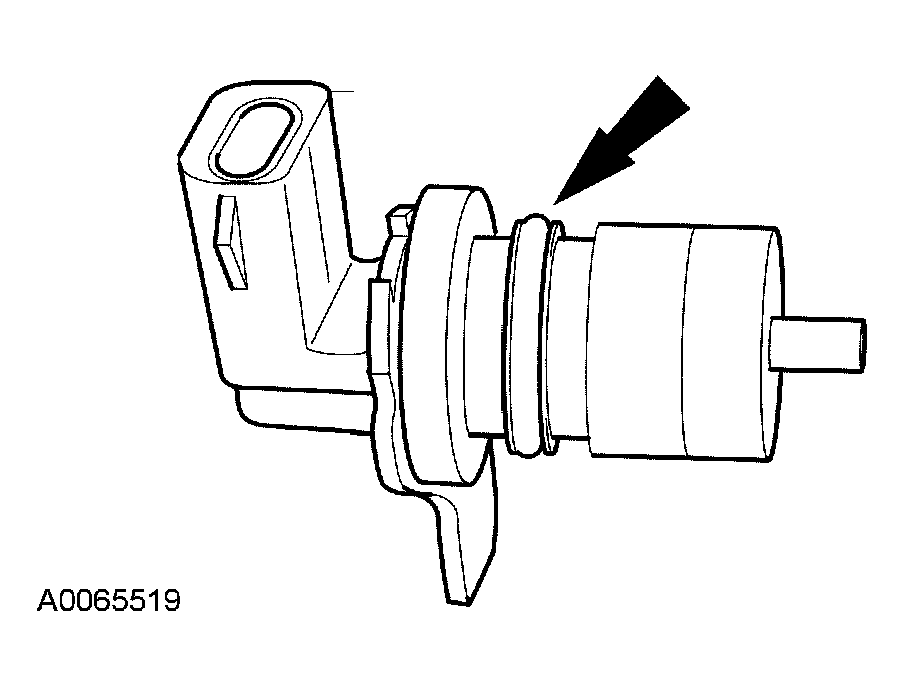

Fig 2: Inspecting O-Ring Seal For Nicks Or Cuts
G03951298Courtesy of FORD MOTOR CO.
