Steering Column: Assembly

    Vehicles with telescoping column

    NOTE: Make sure the steering column shafts are aligned correctly.

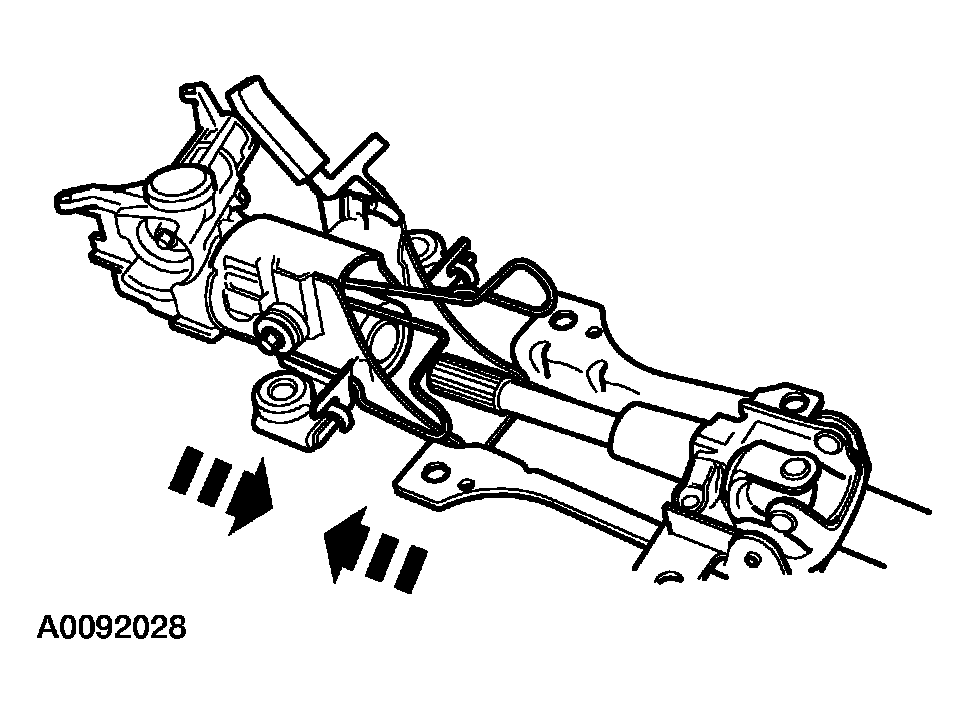

    Fig 1: Connecting Halves Of Steering Column
    G03950257Courtesy of FORD MOTOR CO.
  1. Connect the two halves of the steering column.
  2. WARNING: Make sure the breakaway capsules are located in the holes in the bracket. Failure to follow these instructions may result in personal injury.
    WARNING: Make sure the bolt is not over tightened. Failure to follow these instructions may result in personal injury.

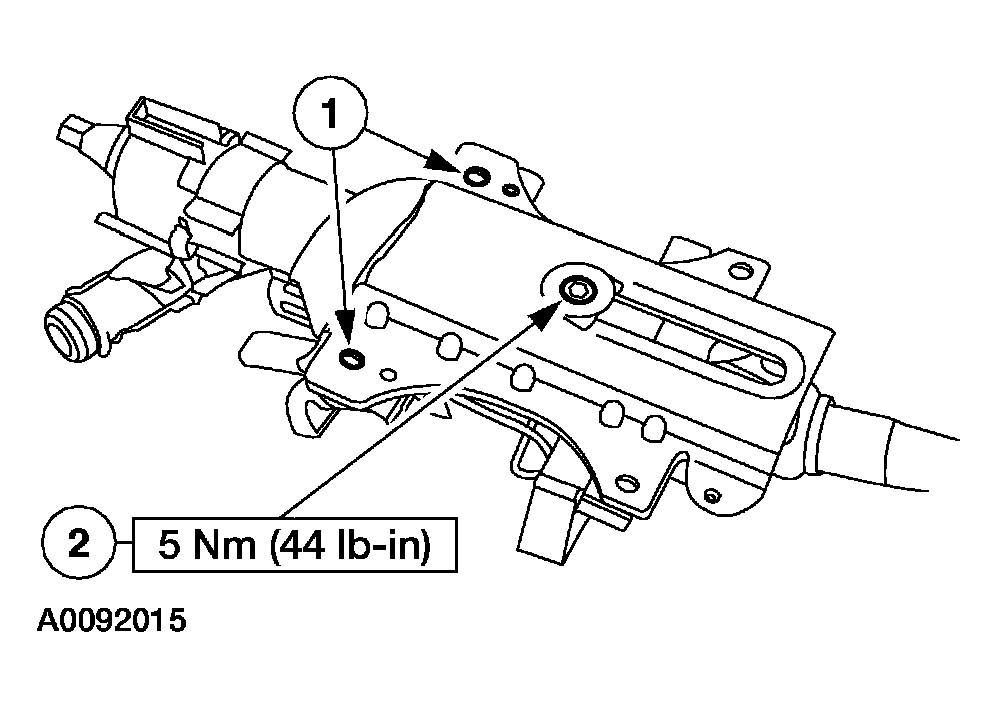

    Fig 2: Installing Steering Column Sliding Bolt
    G03950258Courtesy of FORD MOTOR CO.
  3. Install the steering column sliding bolt.
    1. Align the breakaway capsules.
    2. Tighten the steering column sliding bolt.
  4. All vehicles

  5. Install the ignition lock cylinder.
    • Rotate the ignition key.

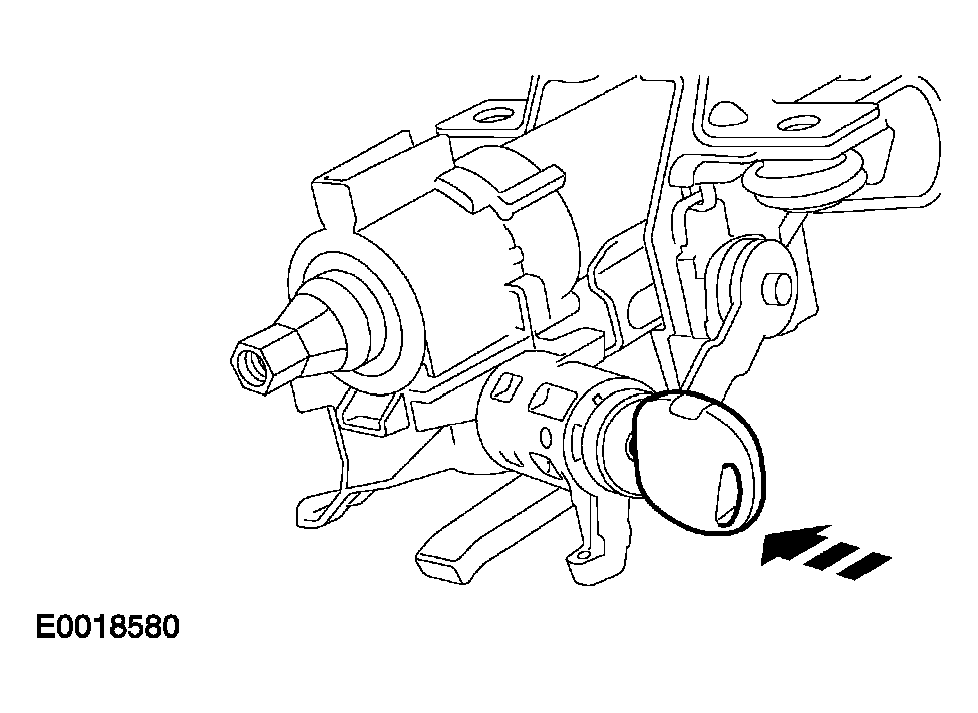

    Fig 3: Installing Ignition Lock Cylinder
    G03950259Courtesy of FORD MOTOR CO.
  6. Install the ignition switch.

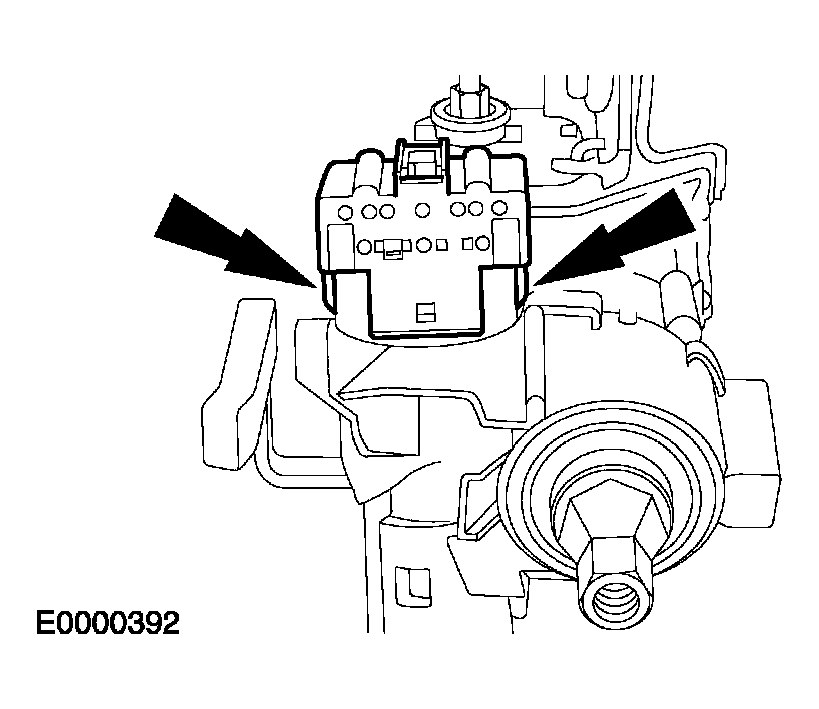

    Fig 4: Installing Ignition Switch
    G03950260Courtesy of FORD MOTOR CO.
  7. Install the PATS transceiver.
    Fig 5: Installing PATS Transceiver
    G03950250Courtesy of FORD MOTOR CO.
  8. Install the clockspring.
    • Make sure both the retaining tabs lock into position on the steering column.

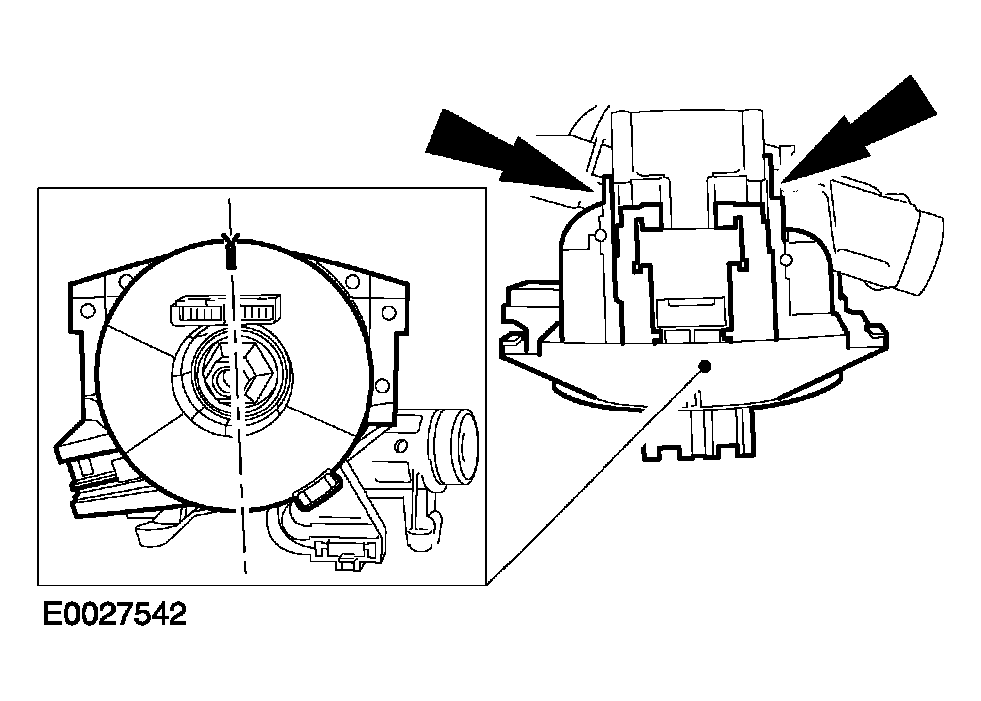

    Fig 6: Identifying Both Retaining Tabs Lock Into Position On Steering Column
    G03950262Courtesy of FORD MOTOR CO.
  9. CAUTION: Make sure the spacing collar is correctly located. Do not assemble if the spacing collar is missing.

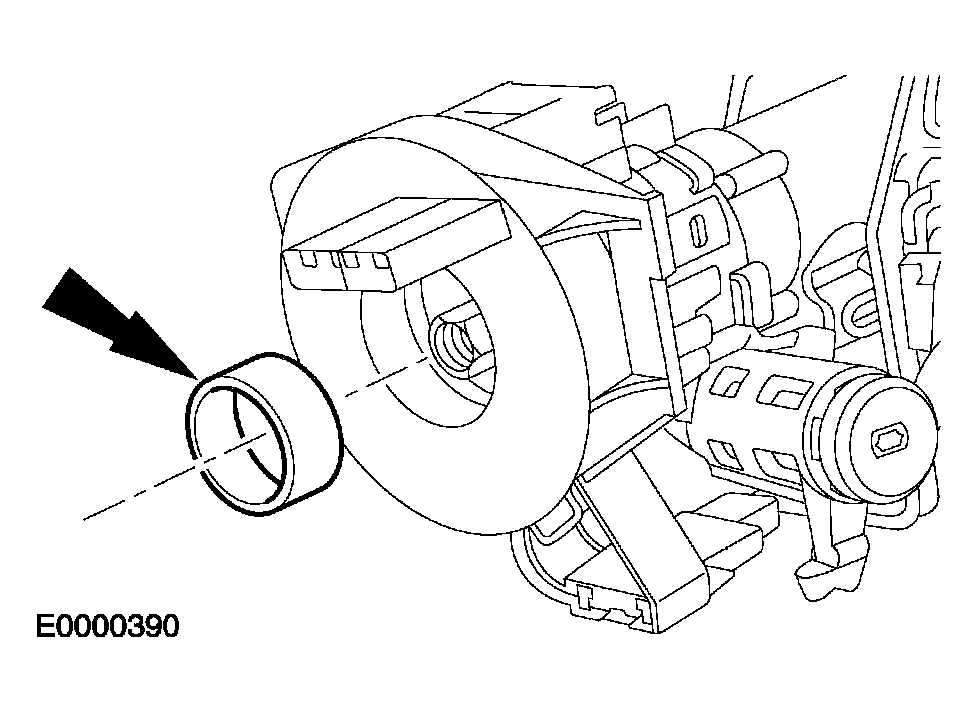

    Fig 7: Installing Spacing Collar
    G03950263Courtesy of FORD MOTOR CO.
  10. Install the spacing collar.
  11. Install the steering column LH and RH multifunction switches.

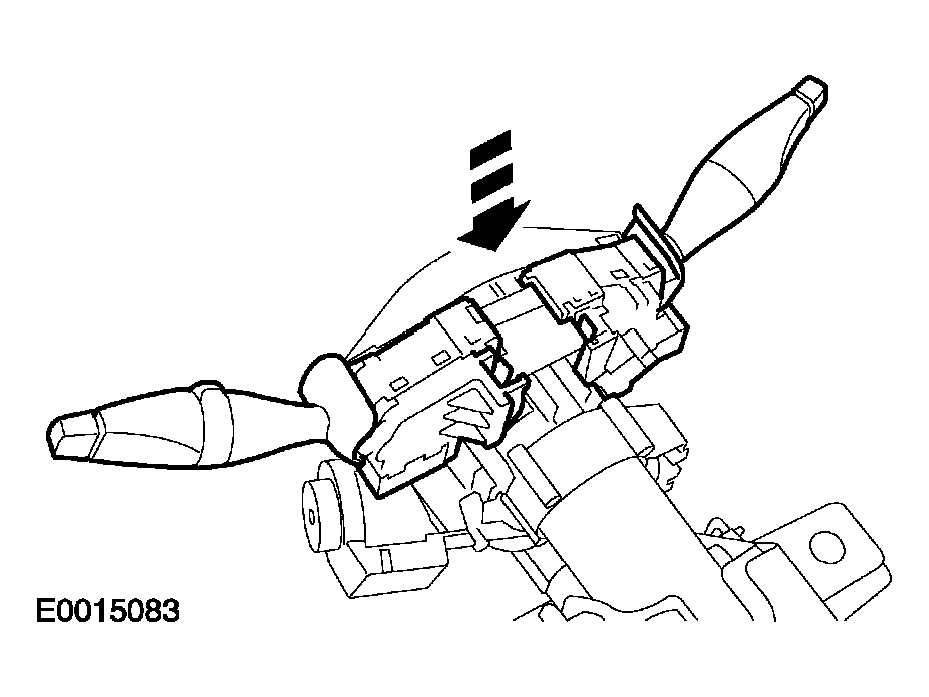

    Fig 8: Installing Steering Column LH And RH Multifunction Switches
    G03950264Courtesy of FORD MOTOR CO.
  12. Remove the tape from the clockspring.
  13. Install the steering wheel.
    1. Connect the speed control electrical connector (if equipped).
    2. Install the bolt.

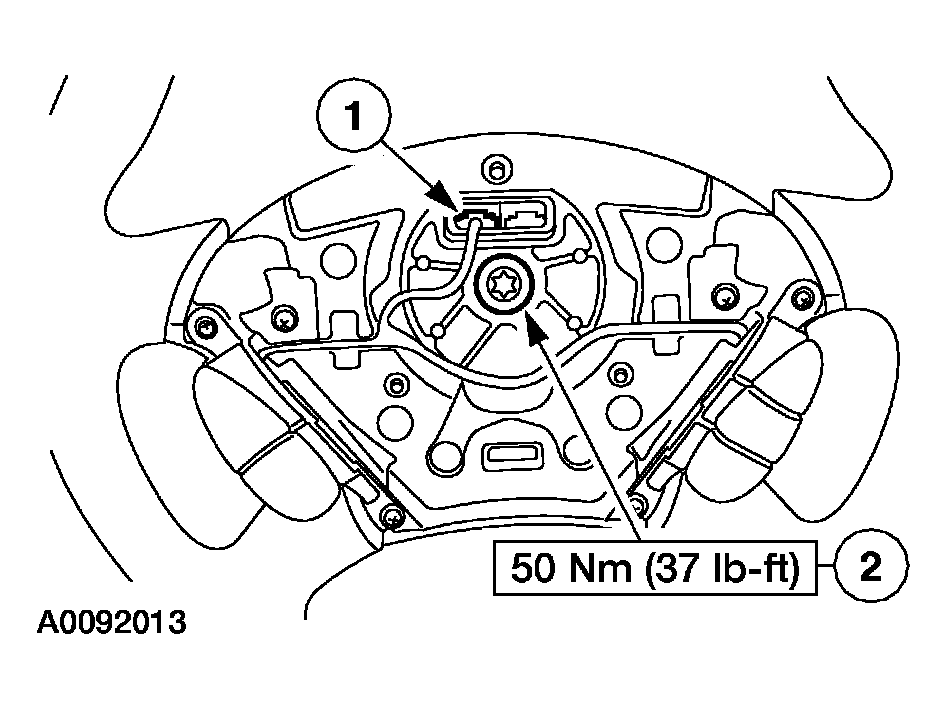

    Fig 9: Connecting Speed Control Electrical Connector And Installing Bolt
    G03950242Courtesy of FORD MOTOR CO.
  14. Install the driver air bag module.
    • Connect the electrical connector.

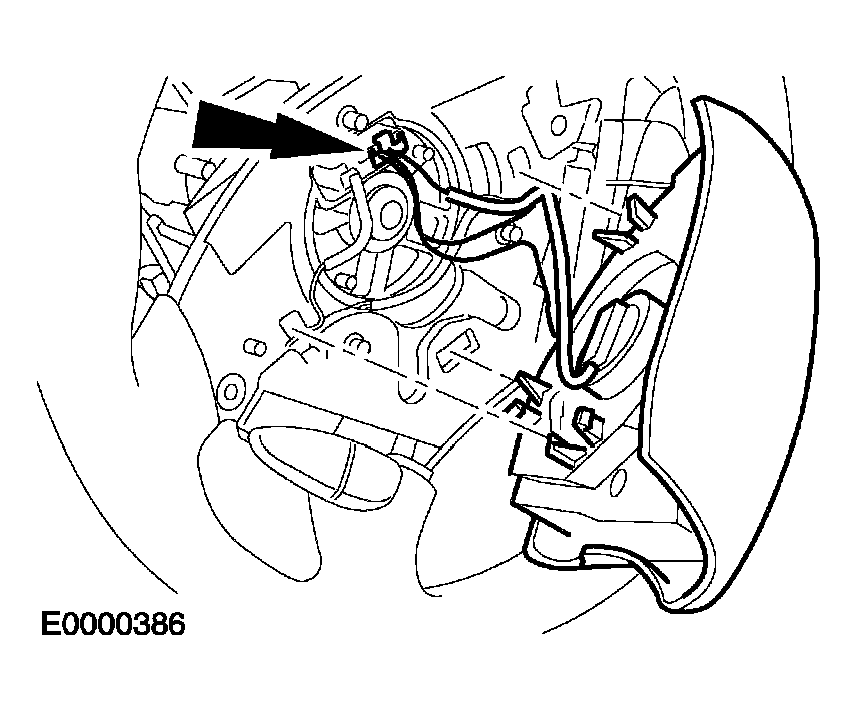

    Fig 10: Installing Driver Air Bag Module
    G03950266Courtesy of FORD MOTOR CO.
  15. Install the driver air bag module screws.

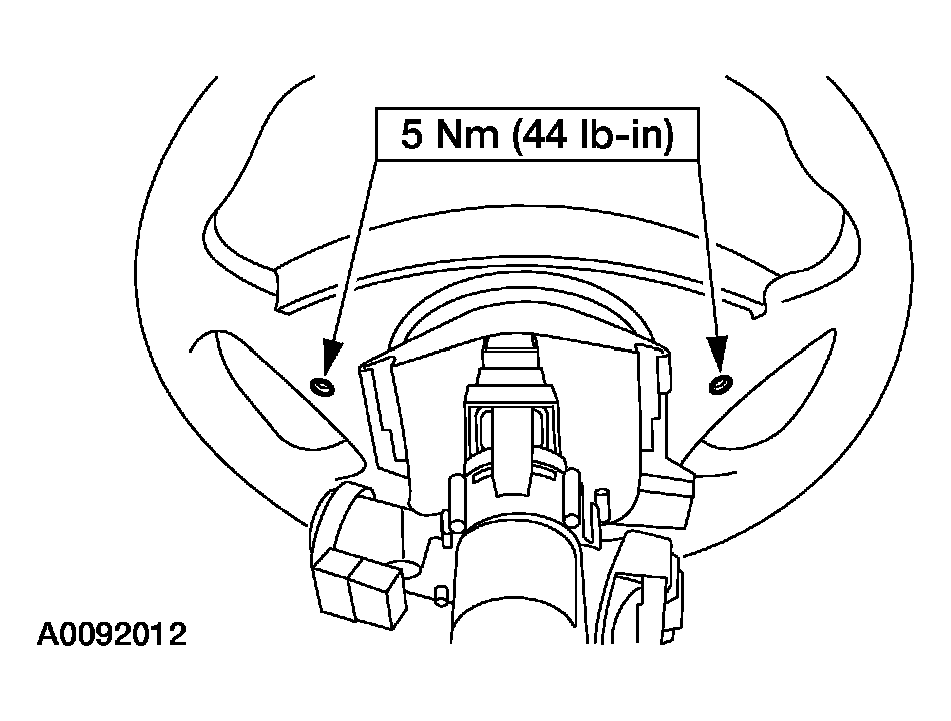

Fig 11: Installing Driver Air Bag Module Screws
G03950267Courtesy of FORD MOTOR CO.
