Powertrain Calibration Information: Notes

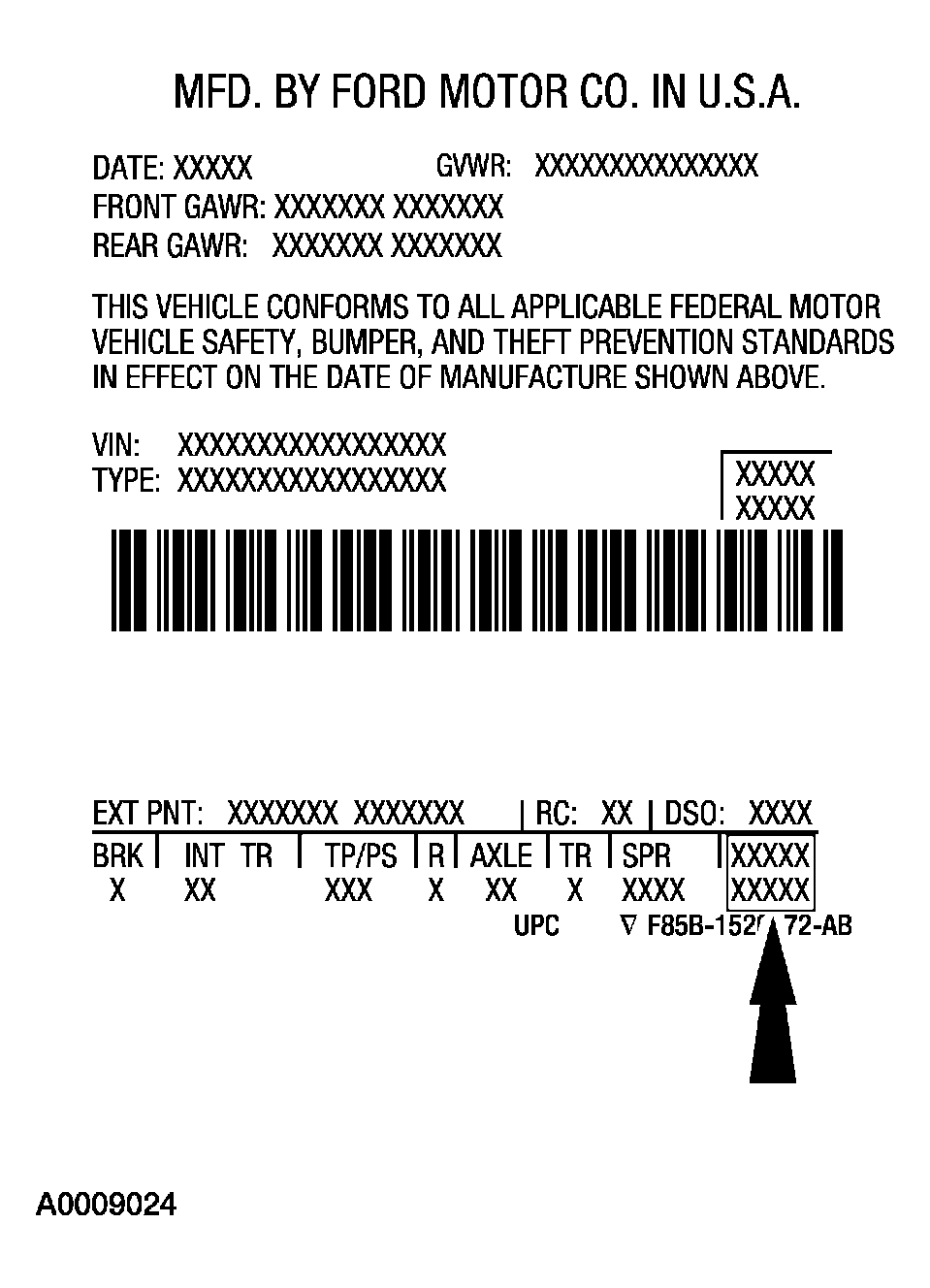

Fig 1: Identifying Powertrain Calibration Information
G03949678Courtesy of FORD MOTOR CO.
NOTE: Powertrain calibration information is limited to a maximum of five characters per line on the vehicle certification (VC) label. Because of this, calibration identification consisting of more than five characters will wrap to the second line on the VC label.

Powertrain calibration information is printed in the lower right corner of the vehicle certification (VC) label. Only the base calibration information is printed. Revision levels will not appear .

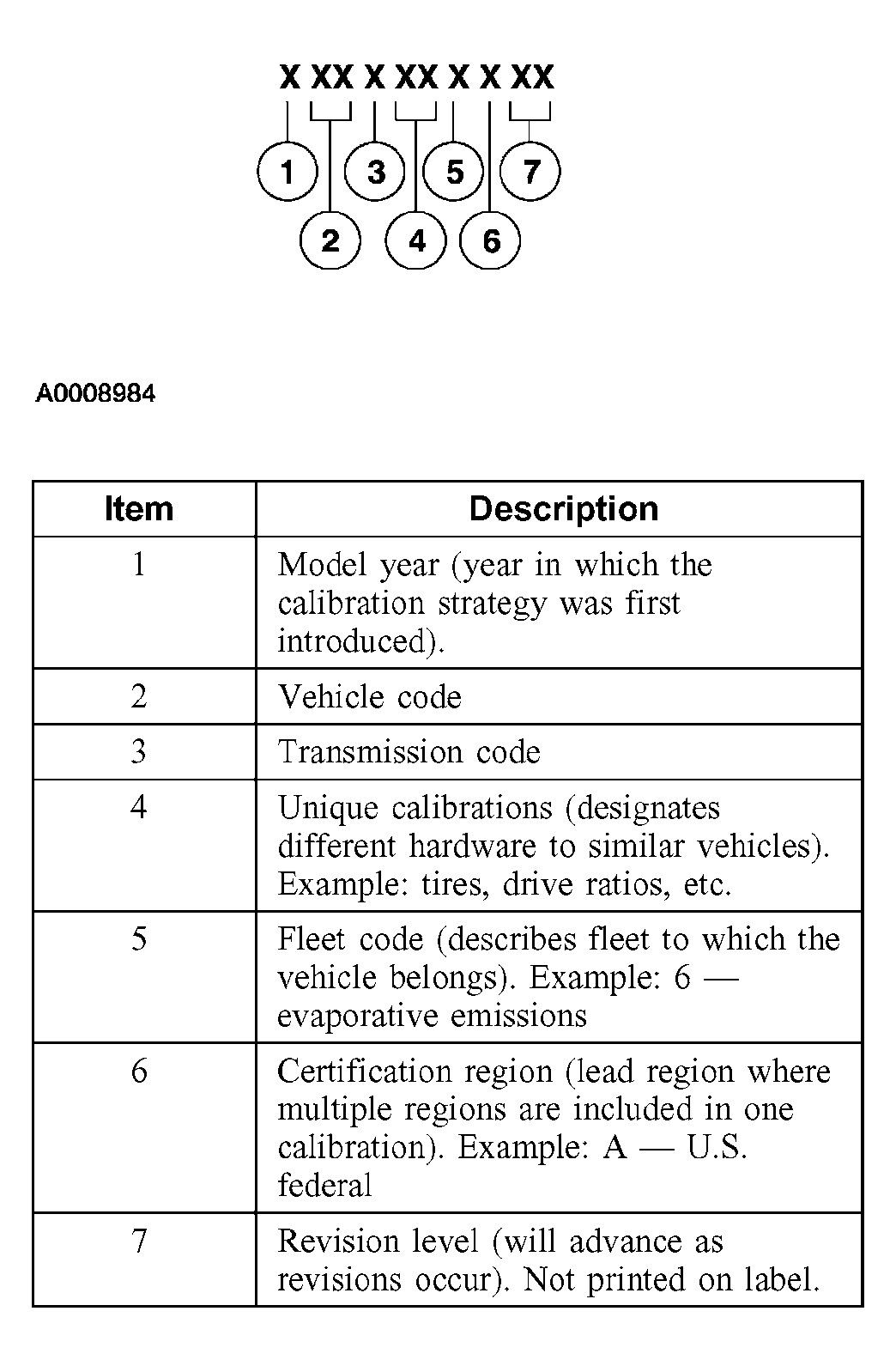

Fig 2: Identifying Powertrain Calibration Information
G03949679Courtesy of FORD MOTOR CO.
