Removal and Installation

  1. Remove the hydraulic control unit (HCU). For additional information, refer to HYDRAULIC CONTROL UNIT (HCU) .
  2. Remove the ABS module to HCU retaining bolts.

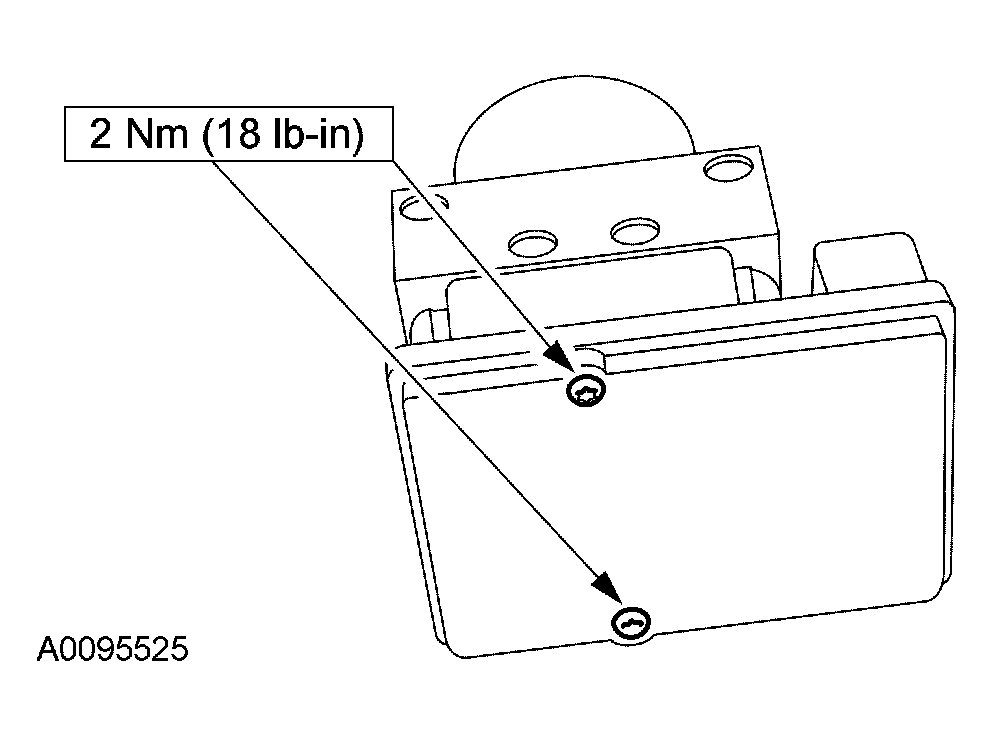

    Fig 1: Removing ABS Module To HCU Retaining Bolts
    G03950167Courtesy of FORD MOTOR CO.
  3. Remove the ABS module from the HCU.
  4. To install, reverse the removal procedure.
