Selector Lever Cable Adjustment: Adjustment

Shift selector lever in position "D".

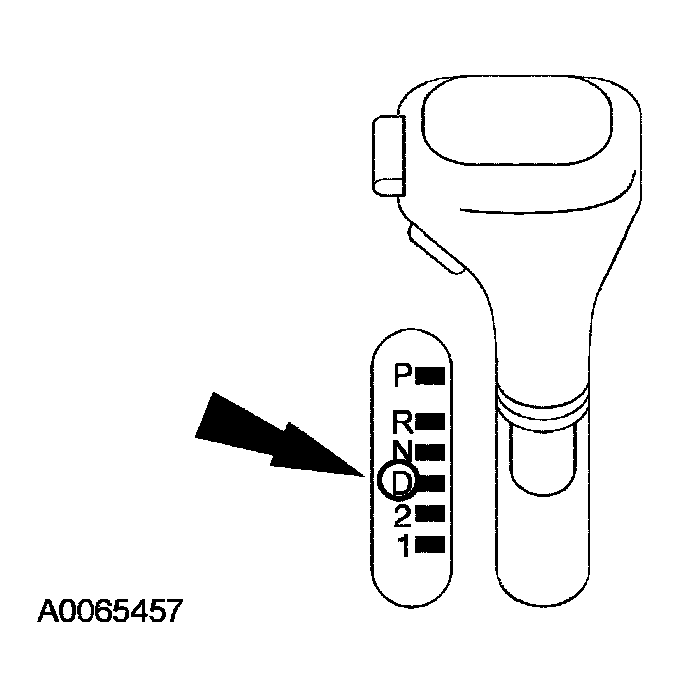

Fig 1: Identifying Shift Selector Lever In Position - D
Courtesy of FORD MOTOR CO.
Raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .
Disconnect the shift cable end from the manual control lever.

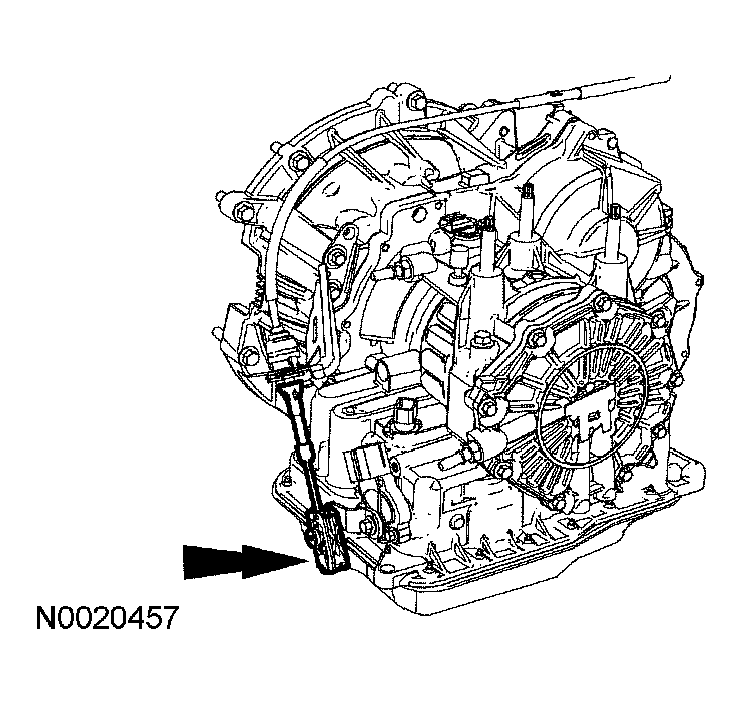

Fig 2: Disconnecting Shift Cable End From Manual Control Lever
Courtesy of FORD MOTOR CO.
Unlock the shift cable end. Make sure that the cable end moves freely.

Fig 3: Unlocking Shift Cable End
Courtesy of FORD MOTOR CO.

NOTE: The transmission range (TR) sensor mark must be in line with the transaxle selector lever.

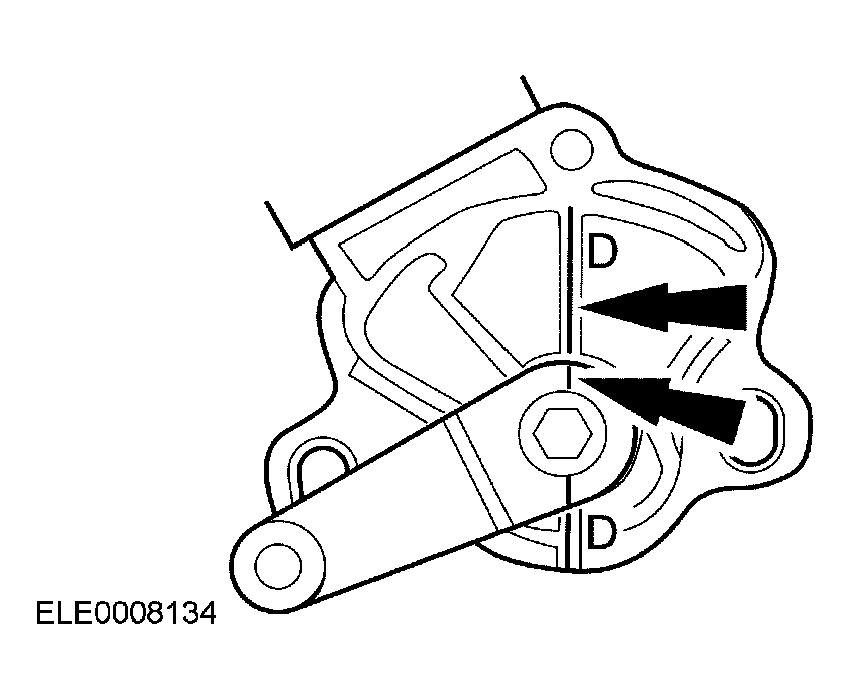

Fig 4: Moving Transaxle Selector Lever To Position - D

Courtesy of FORD MOTOR CO.

Move the transaxle selector lever to position "D" (TR sensor removed shown).
Connect the shift cable end of the manual control lever.

Fig 5: Connecting Shift Cable End Of Manual Control Lever
Courtesy of FORD MOTOR CO.
Press the lock tab down to secure the cable end from moving.

Fig 6: Pressing Lock Tab Down To Secure Cable End From Moving
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Check to make sure that the vehicle starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE.
