Direct Clutch: Disassembly

  1. Remove the direct clutch pressure, friction and steel plates.
    1. Remove the retaining ring.
    2. Remove the plates.

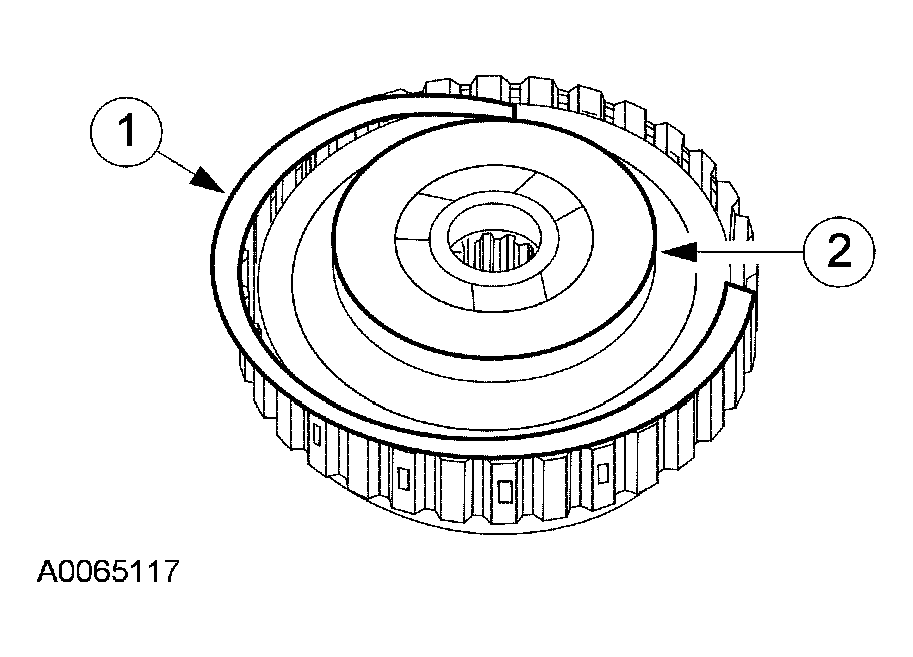

    Fig 1: Removing Direct Clutch Pressure, Friction And Steel Plates
    G03951488Courtesy of FORD MOTOR CO.
  2. Using the special tool, remove the selective snap ring.
    Fig 2: Removing Selective Snap Ring Using Special Tool
    G03951489Courtesy of FORD MOTOR CO.
  3. Remove the direct clutch balance piston.
    Fig 3: Removing Direct Clutch Balance Piston
    G03951490Courtesy of FORD MOTOR CO.
  4. Remove the direct clutch return spring.
    Fig 4: Removing Direct Clutch Return Spring
    G03951494Courtesy of FORD MOTOR CO.
    5. CAUTION: If damage is found on the direct clutch piston seals, install a new direct clutch piston.
    Fig 5: Inspecting Direct Clutch Piston
    G03951492Courtesy of FORD MOTOR CO.
  5. Remove and inspect the direct clutch piston.
