Restraints Control Module (RCM): Notes

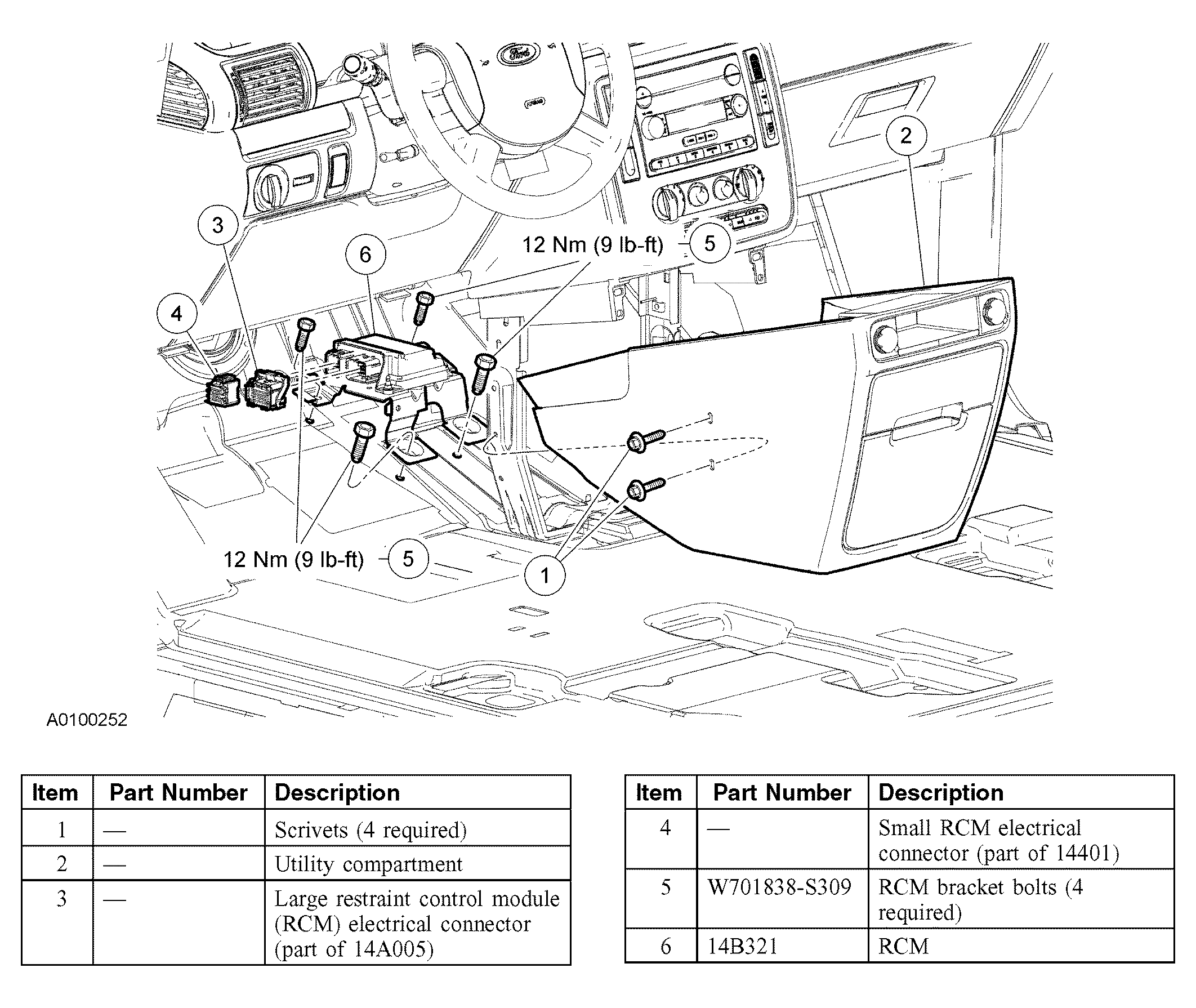

Fig 1: Removing & Installing Restraints Control Module (RCM)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
