Steering Column - Exploded View

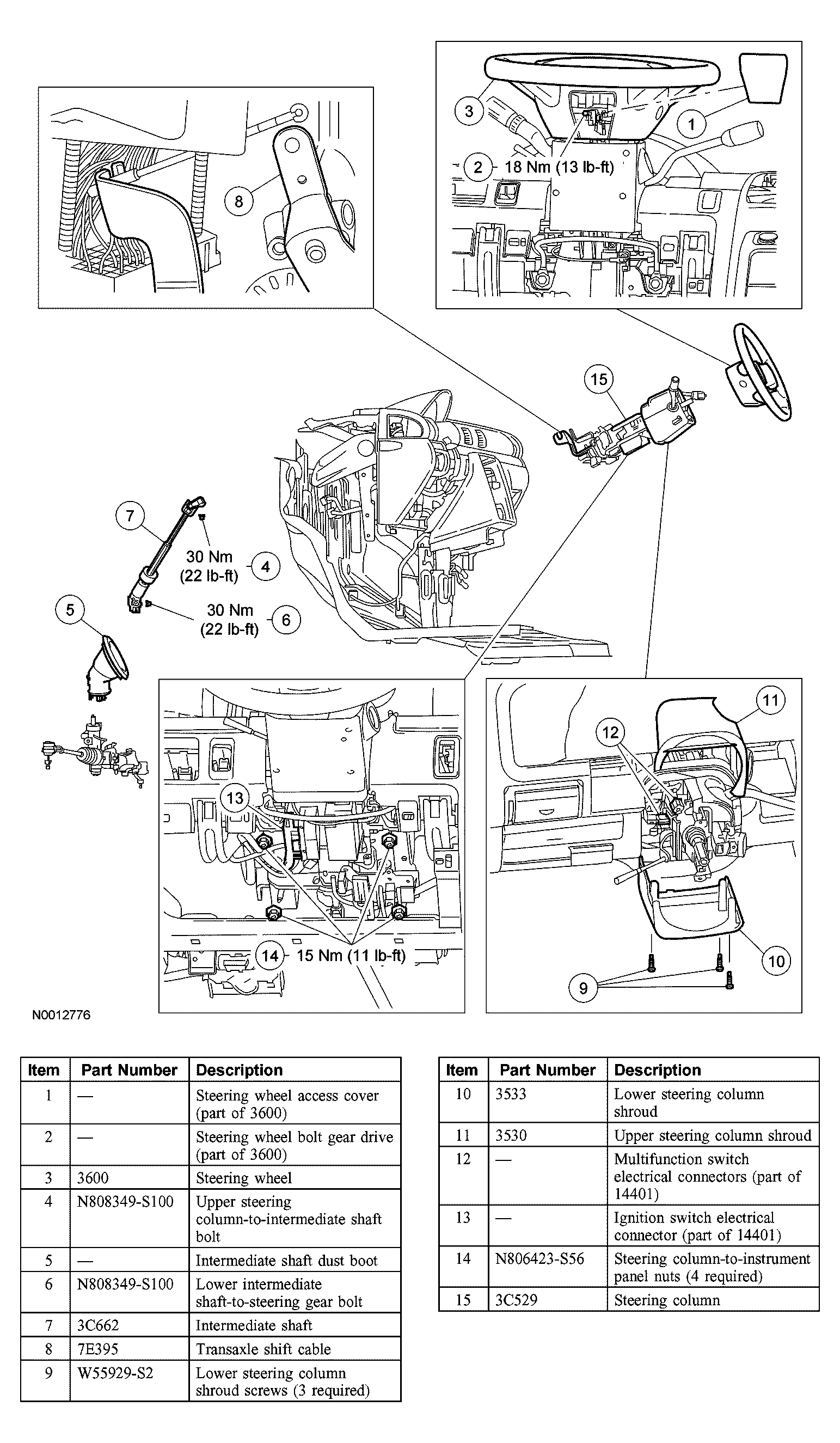

Fig 1: Exploded View Of Steering Column
G04000731Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate component procedures.
