Seat Backrest - Second Row, Bench: Notes

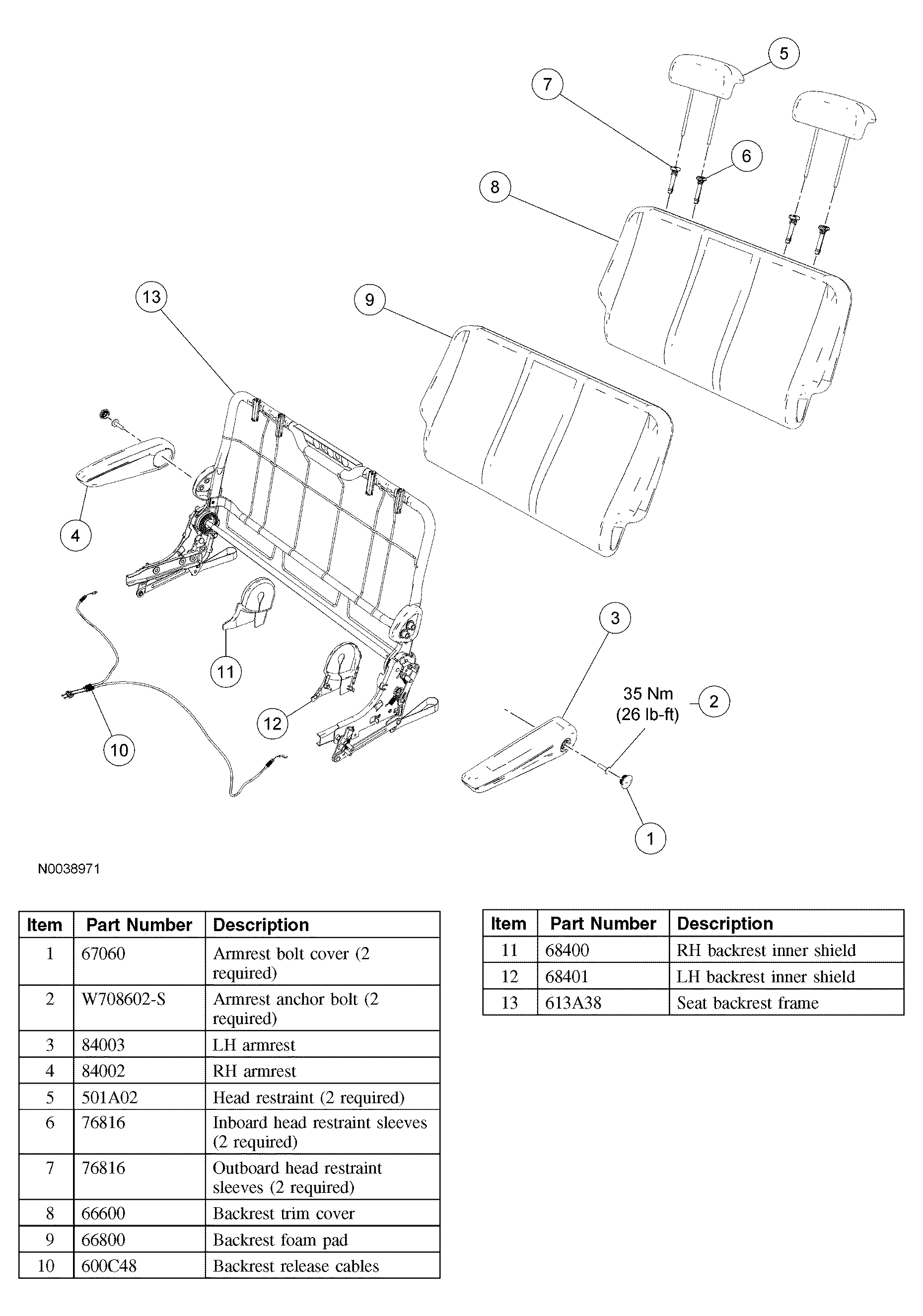

Fig 1: Exploded View Of Seat Backrest - Second Row, Bench
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
