Window Glass - Liftgate: Removal

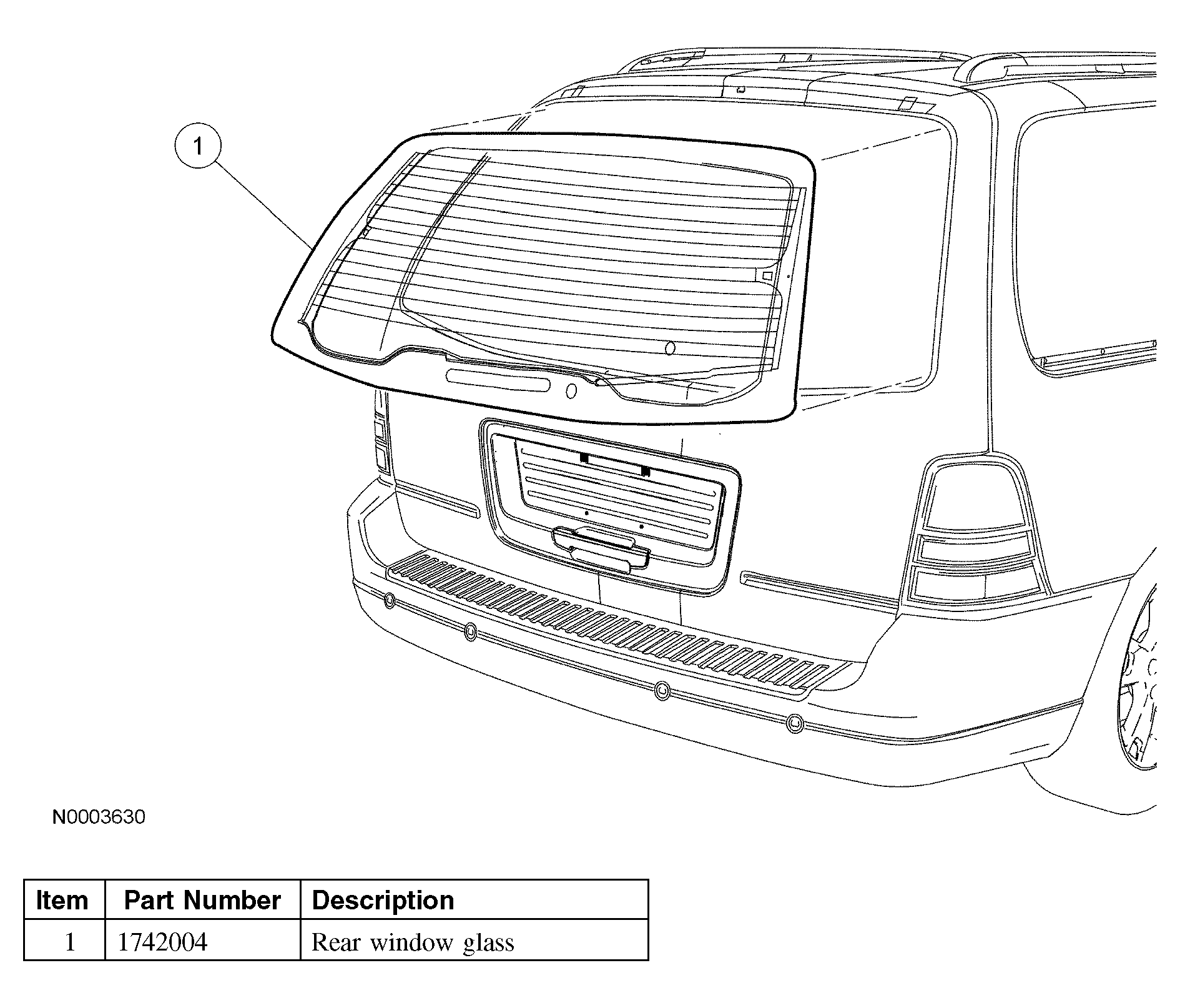

Fig 1: Removing Rear Window Glass

Courtesy of FORD MOTOR CO.

Remove the rear window wiper motor. For additional information, refer to WIPERS AND WASHERS .
Disconnect the 2 rear window defrost electrical connectors.

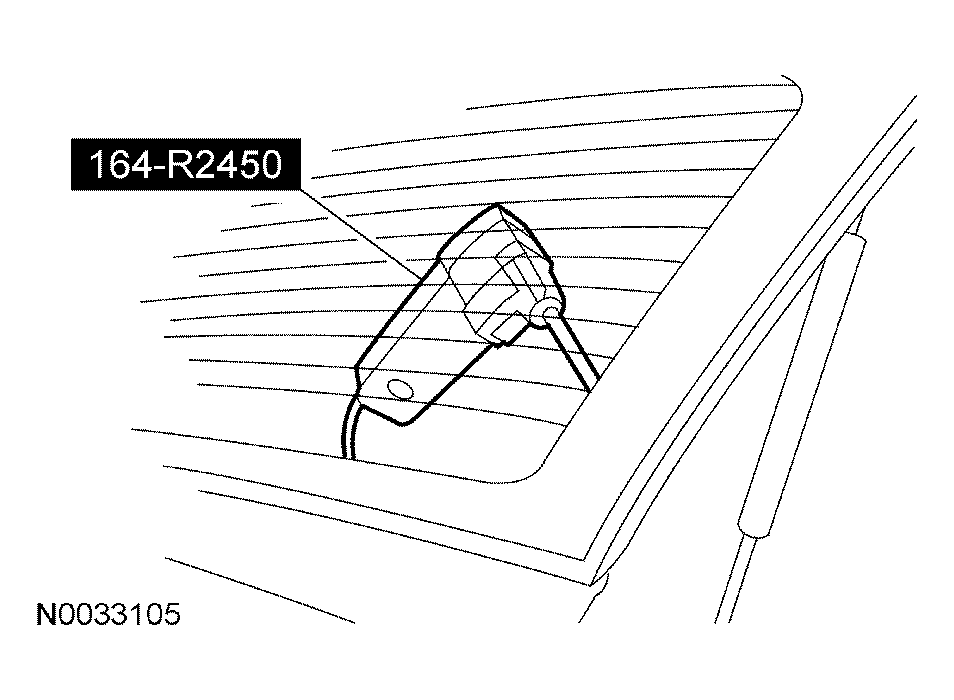

Fig 2: Disconnecting Rear Window Defrost Electrical Connectors
Courtesy of FORD MOTOR CO.
Using a soft brush or vacuum, remove the dirt and foreign material from the pinch weld.

WARNING: To prevent glass splinters from entering the eyes or cutting the hands, wear safety glasses and heavy gloves when cutting the glass from the vehicle. Failure to follow these instructions may result in personal injury.

CAUTION: Care must be taken to avoid scratching the pinch weld.

NOTE: Lubricate the existing urethane adhesive with water to aid the special tool while cutting.

Fig 3: Cutting Adhesive From Liftgate Window Glass

Courtesy of FORD MOTOR CO.

Using the special tool, cut the adhesive away from the liftgate window glass and remove the liftgate window glass.
Using a soft brush or vacuum, remove the dirt and foreign material from the pinch weld.
