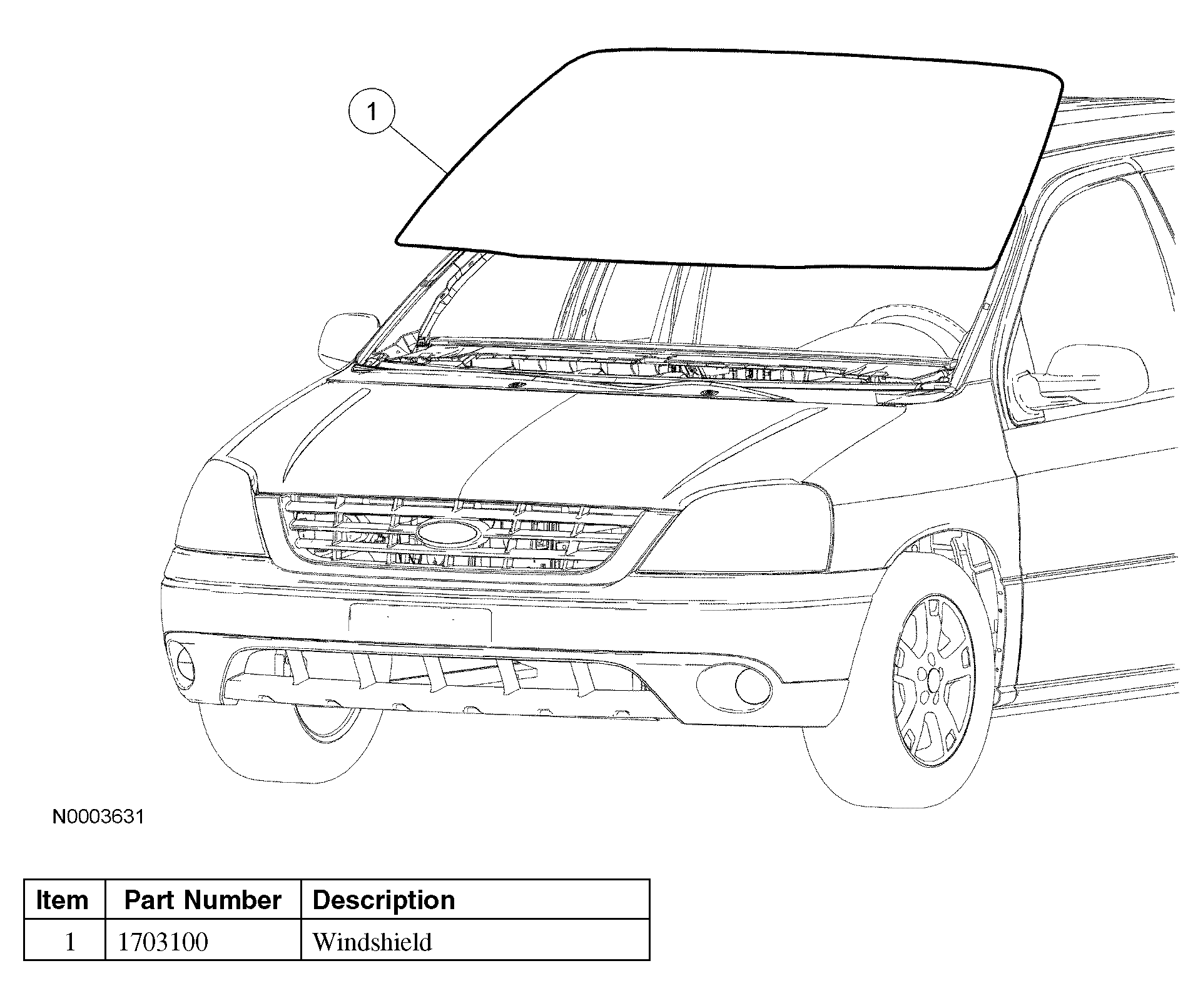

Windshield Glass: Removal
- Remove the cowl panel grille. For additional information, refer to FRONT END BODY PANELS .
- Remove the interior mirror. For additional information, refer to REAR VIEW MIRRORS .
- Remove the LH and RH windshield side garnish mouldings. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
- If equipped, remove the overhead console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
- Lower the front portion of the headliner. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
- Using a soft brush or vacuum, remove dirt and foreign material from the pinch weld.

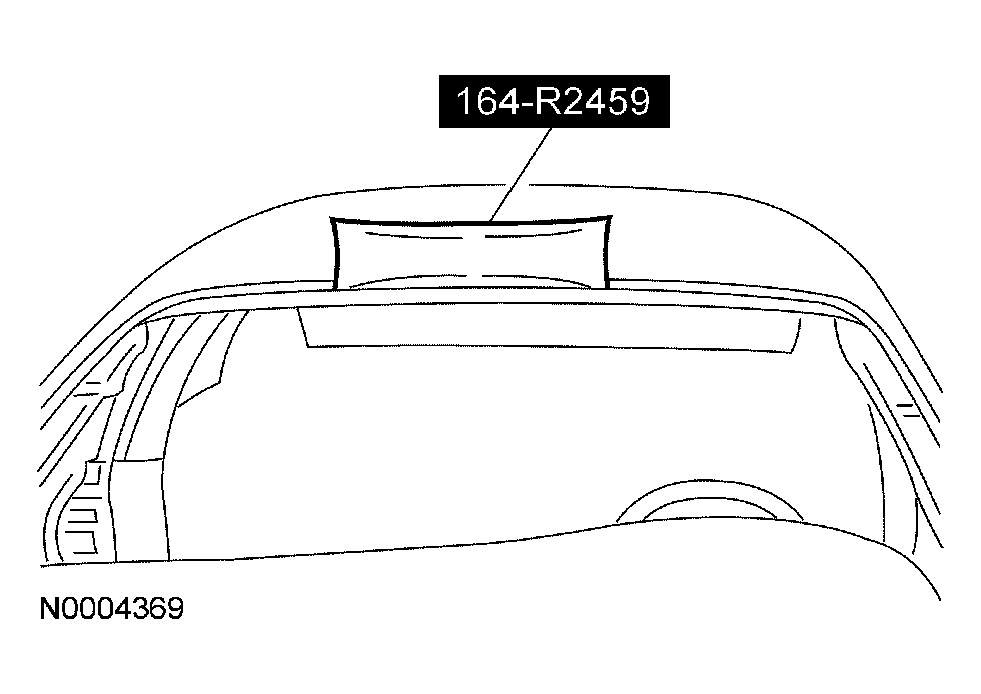

- Using the special tool and starting at the top center of the windshield glass, cut the urethane adhesive away from the glass and work down the sides.
- Using the special tool, distance the windshield from the body.
- Remove the dual lock windshield glass stops from the sheet metal frame.
- Using the special tool, cut the remaining urethane adhesive and remove the windshield.
- Using a soft brush or vacuum, remove dirt and foreign material from the pinch weld.
CAUTION:
Cover the instrument panel in order to prevent possible damage.
CAUTION:
Care must be used to avoid scratching the pinch weld.
CAUTION:
If equipped, care must be taken to avoid damage to the headliner wiring harness.
NOTE:
Lubricate the existing urethane adhesive with water to aid the special tool while cutting.
NOTE:
When cutting foam inside, first cut foam dam to access the urethane adhesive.
