Connector Circuit Reference

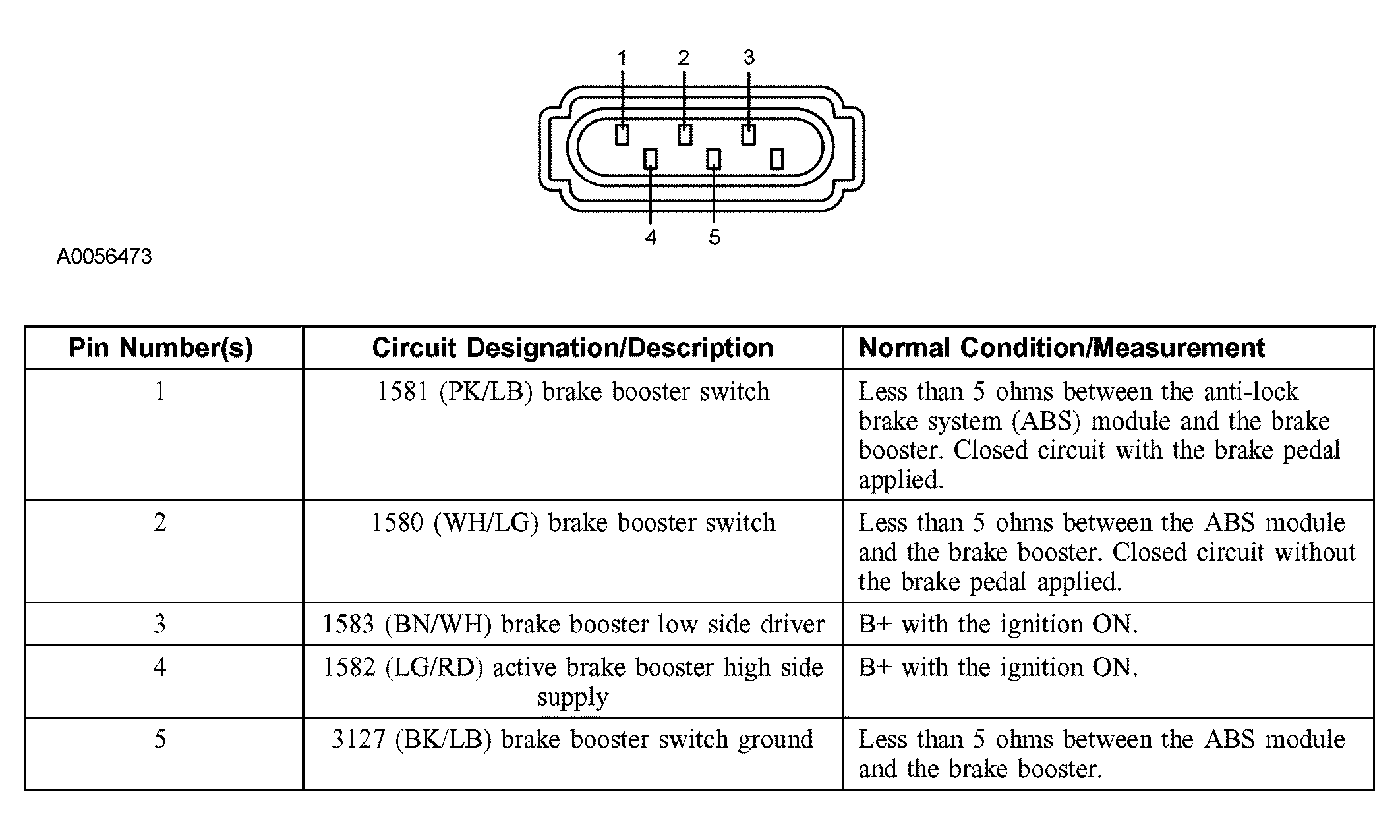

Fig 1: Identifying Active Brake Booster C149 Connector Pinout

Courtesy of FORD MOTOR CO.

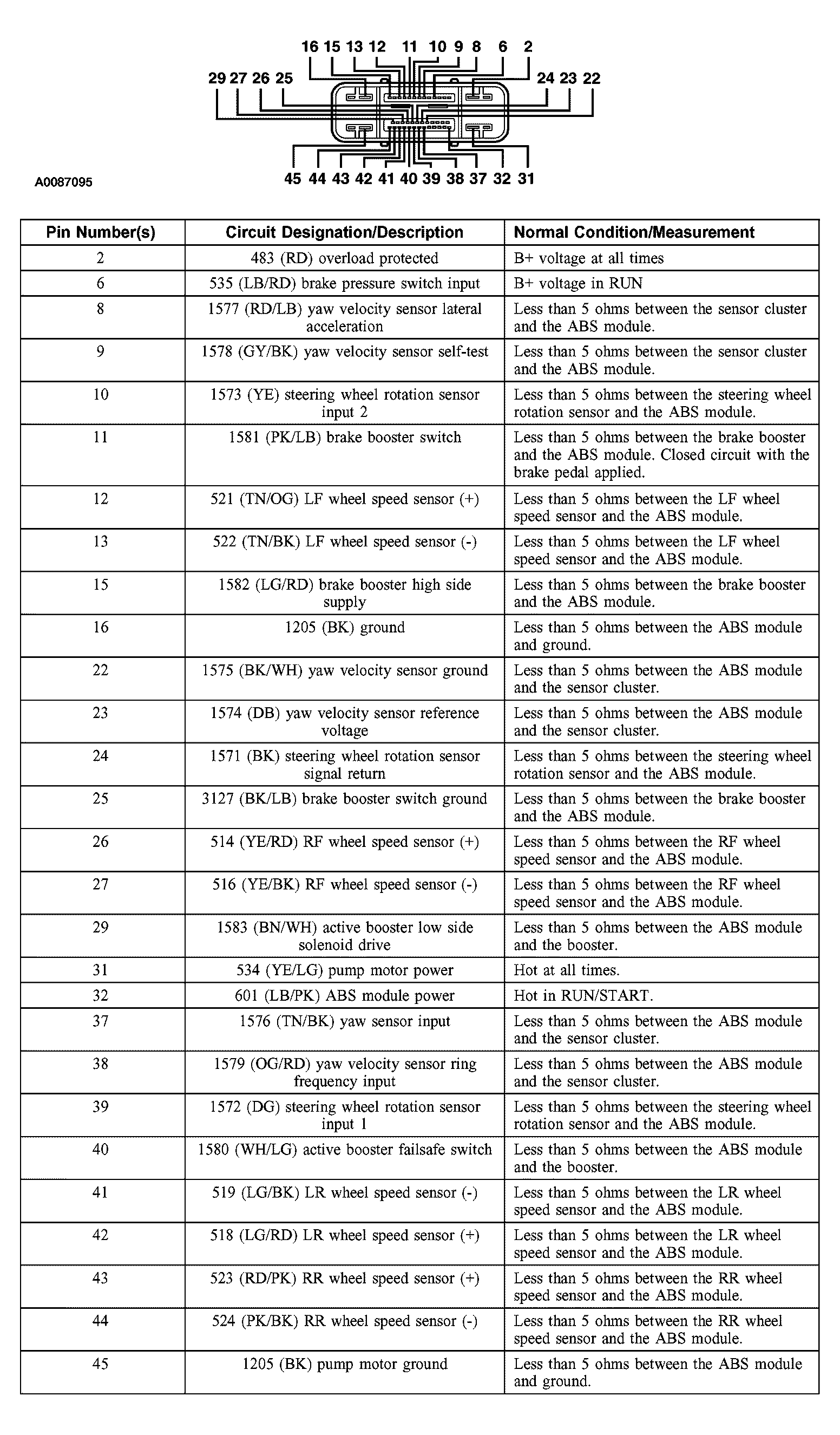

Fig 2: Identifying Anti-Lock Brake System (ABS) C155 Connector Pinout

Courtesy of FORD MOTOR CO.

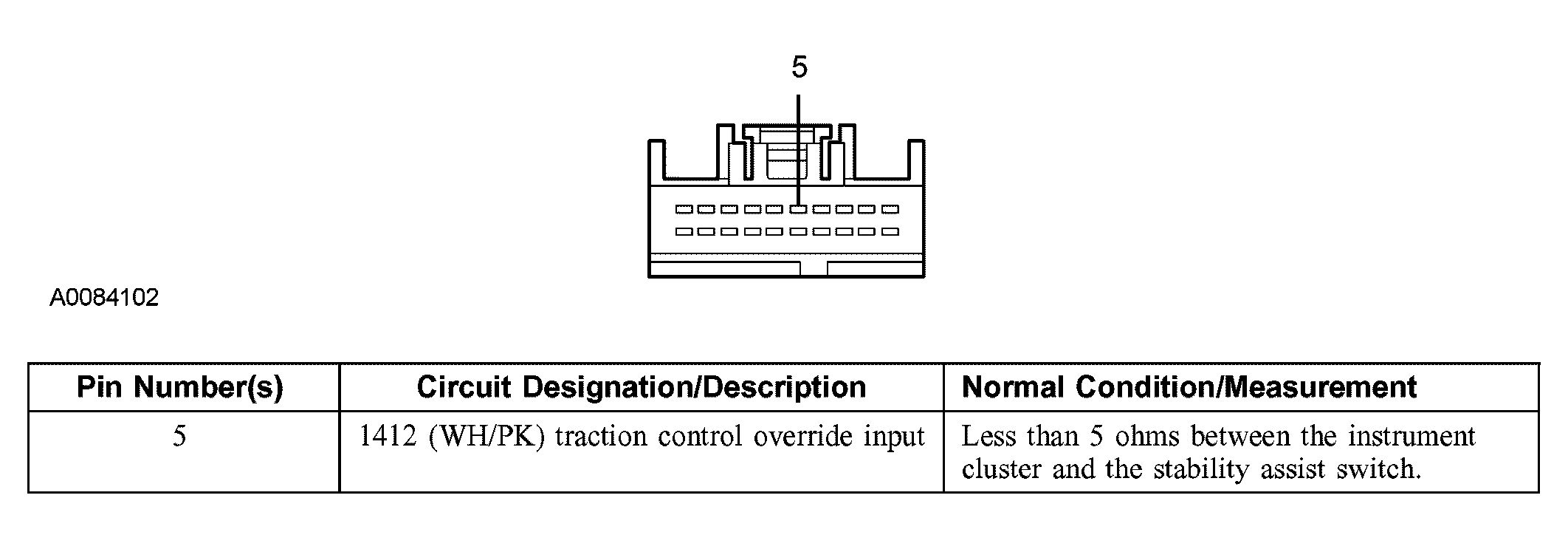

Fig 3: Identifying Instrument Cluster C220a Connector Pinout

Courtesy of FORD MOTOR CO.

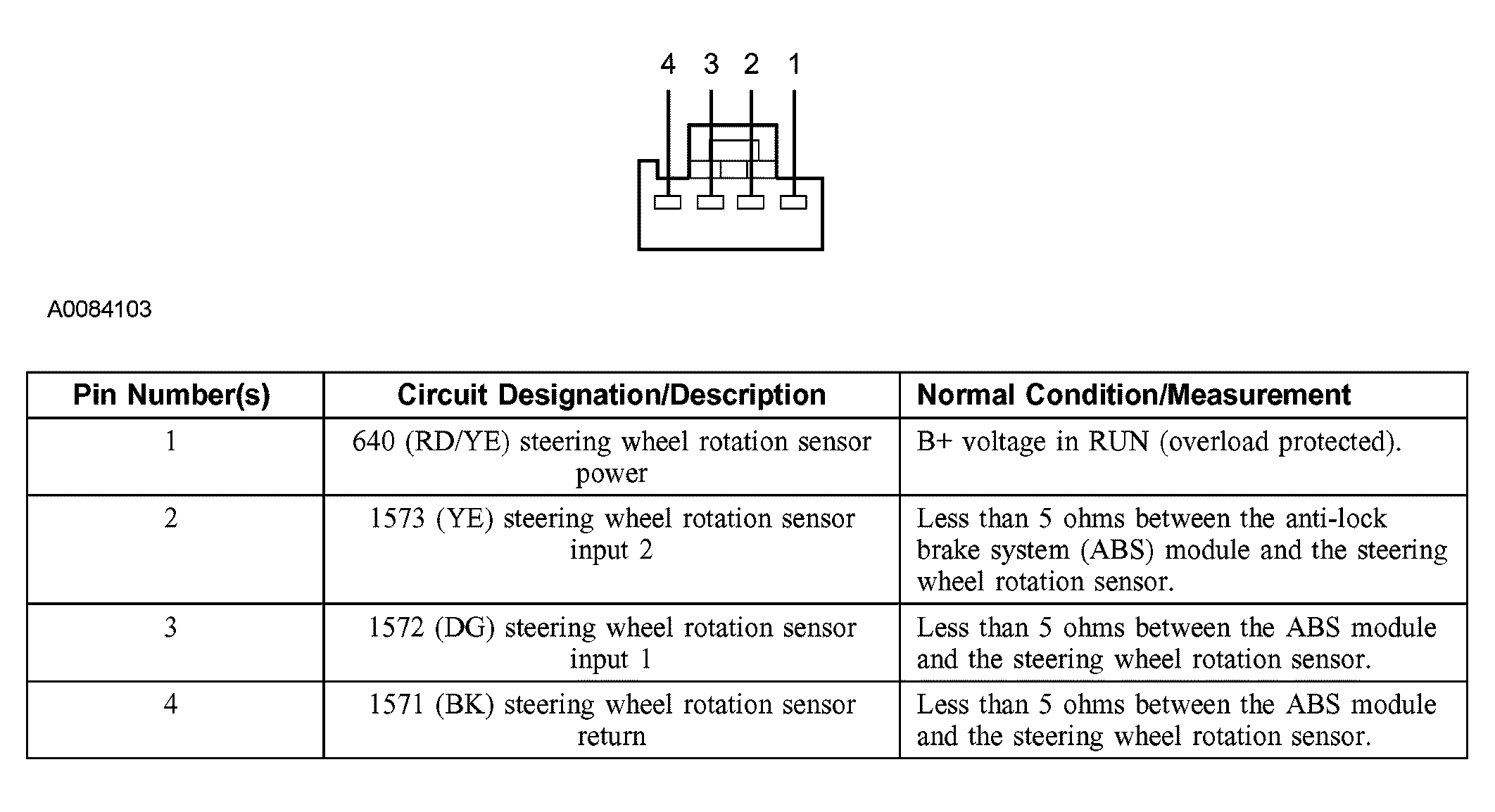

Fig 4: Identifying Steering Wheel Rotation Sensor C226 Connector Pinout

Courtesy of FORD MOTOR CO.

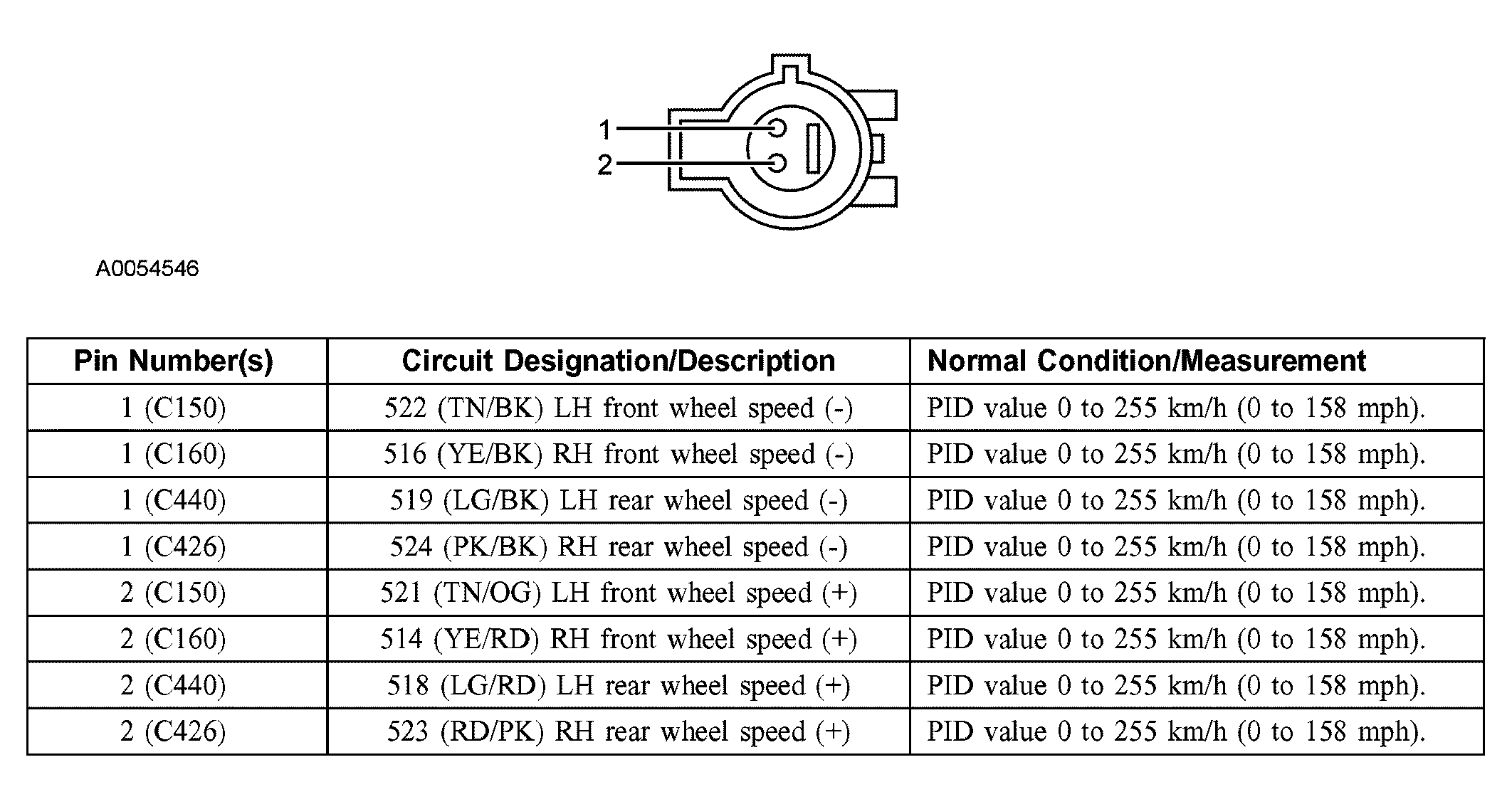

Fig 5: Identifying Wheel Speed Sensor C150, C160, C440 And C426 Connector Pinout

Courtesy of FORD MOTOR CO.

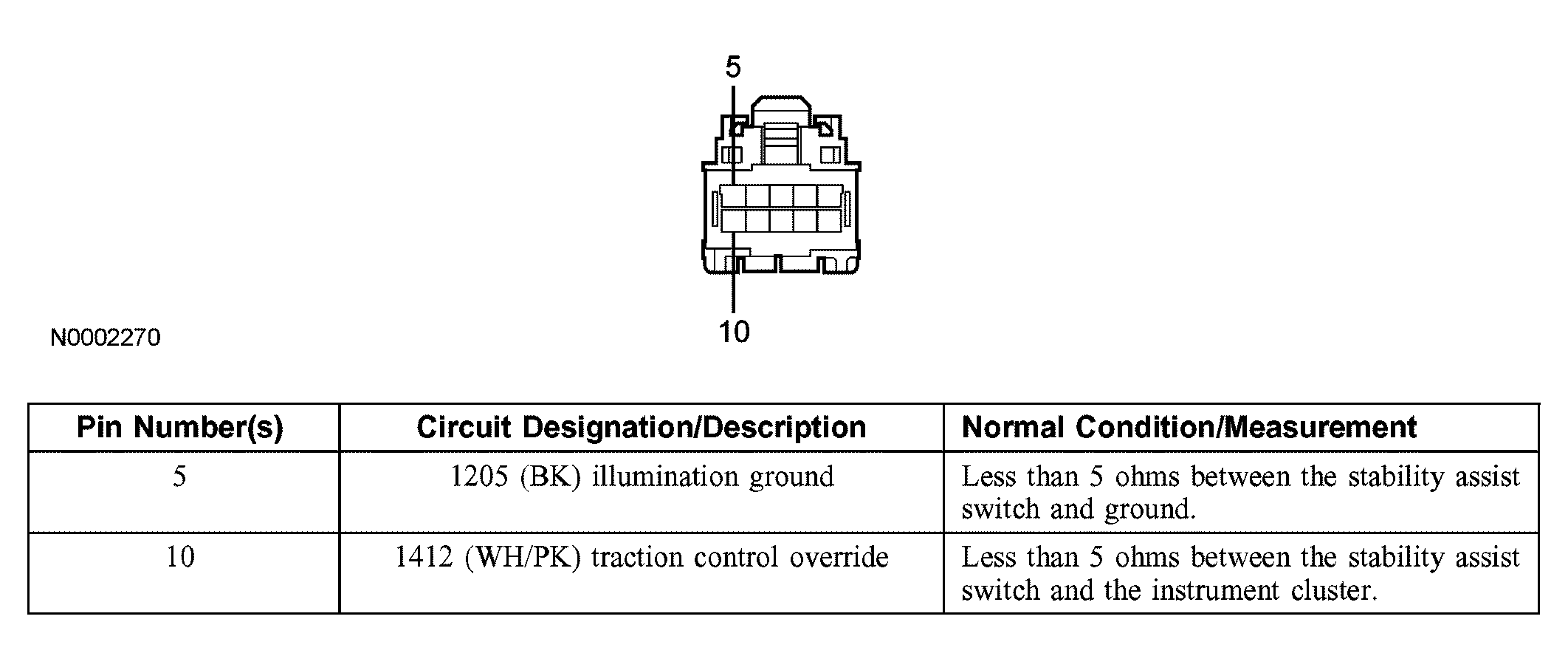

Fig 6: Identifying Stability Assist Switch C2114 Connector Pinout

Courtesy of FORD MOTOR CO.

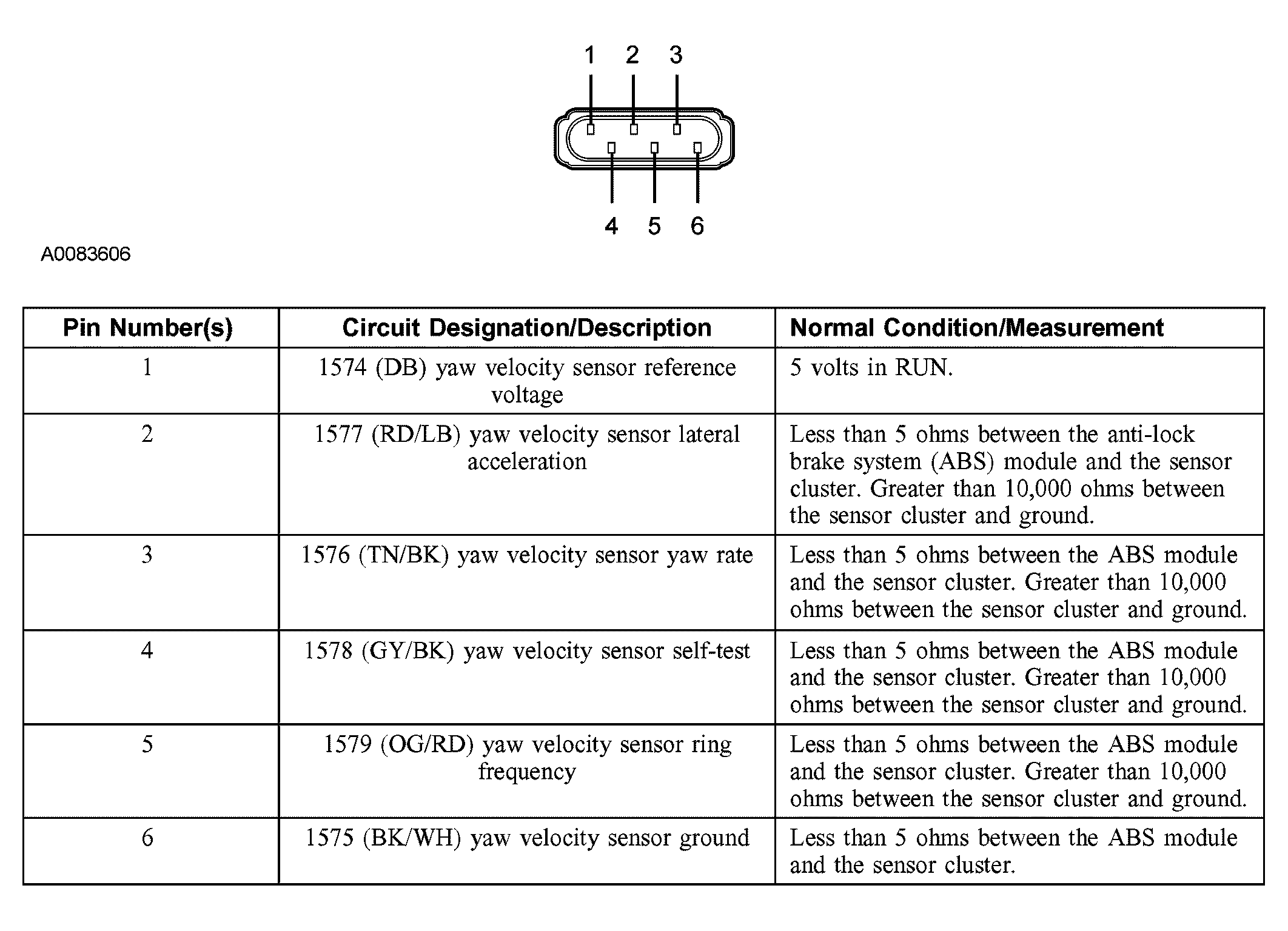

Fig 7: Identifying Sensor Cluster C3073 Connector Pinout

Courtesy of FORD MOTOR CO.
