Instrument Cluster: Notes

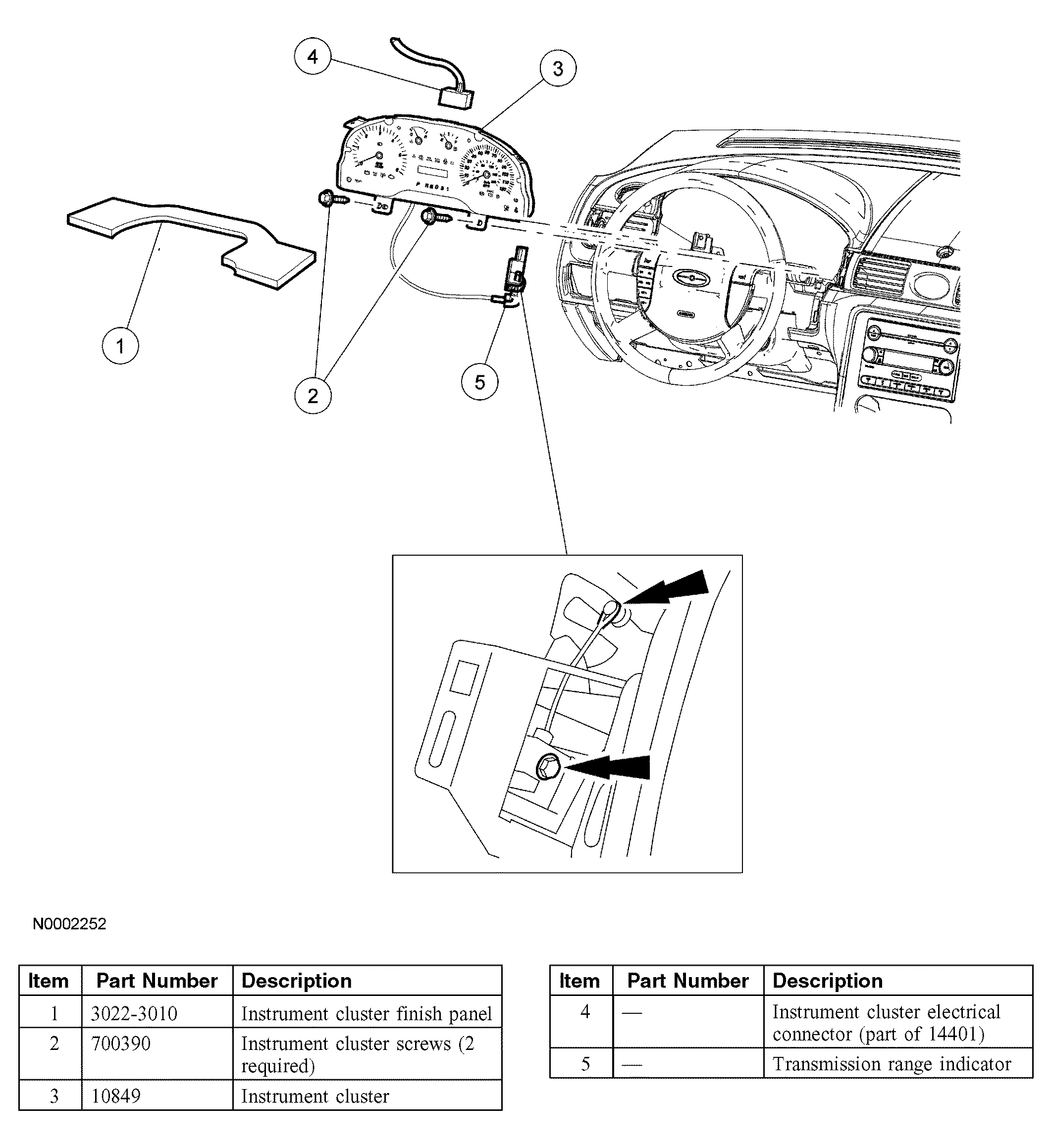

Fig 1: Removing Instrument Cluster
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
