Exhaust Manifold - LH: Notes

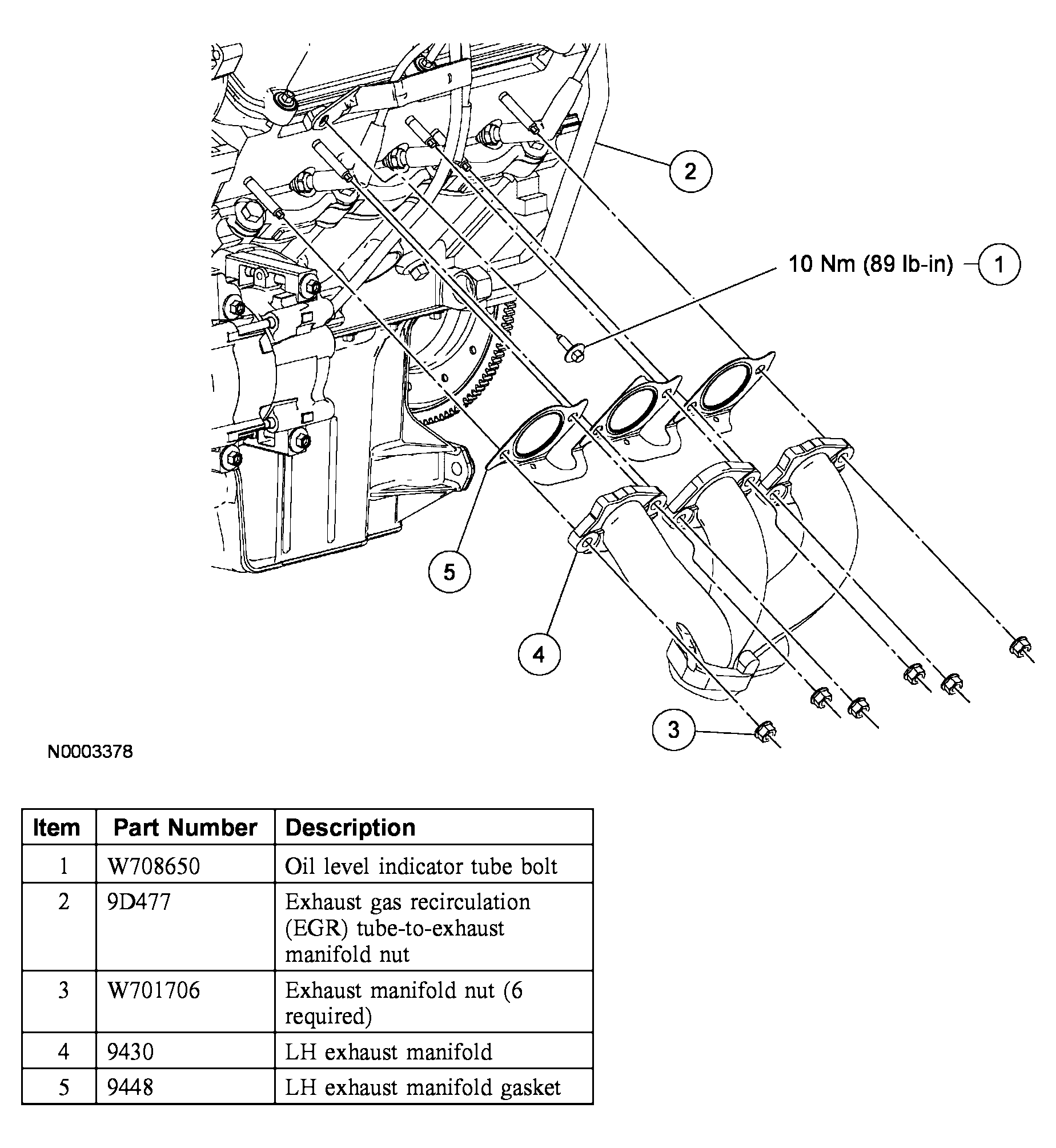

Fig 1: Identifying Exhaust Manifold - LH Components

G04004021

Courtesy of FORD MOTOR CO.
