Exhaust Manifold - RH: Notes

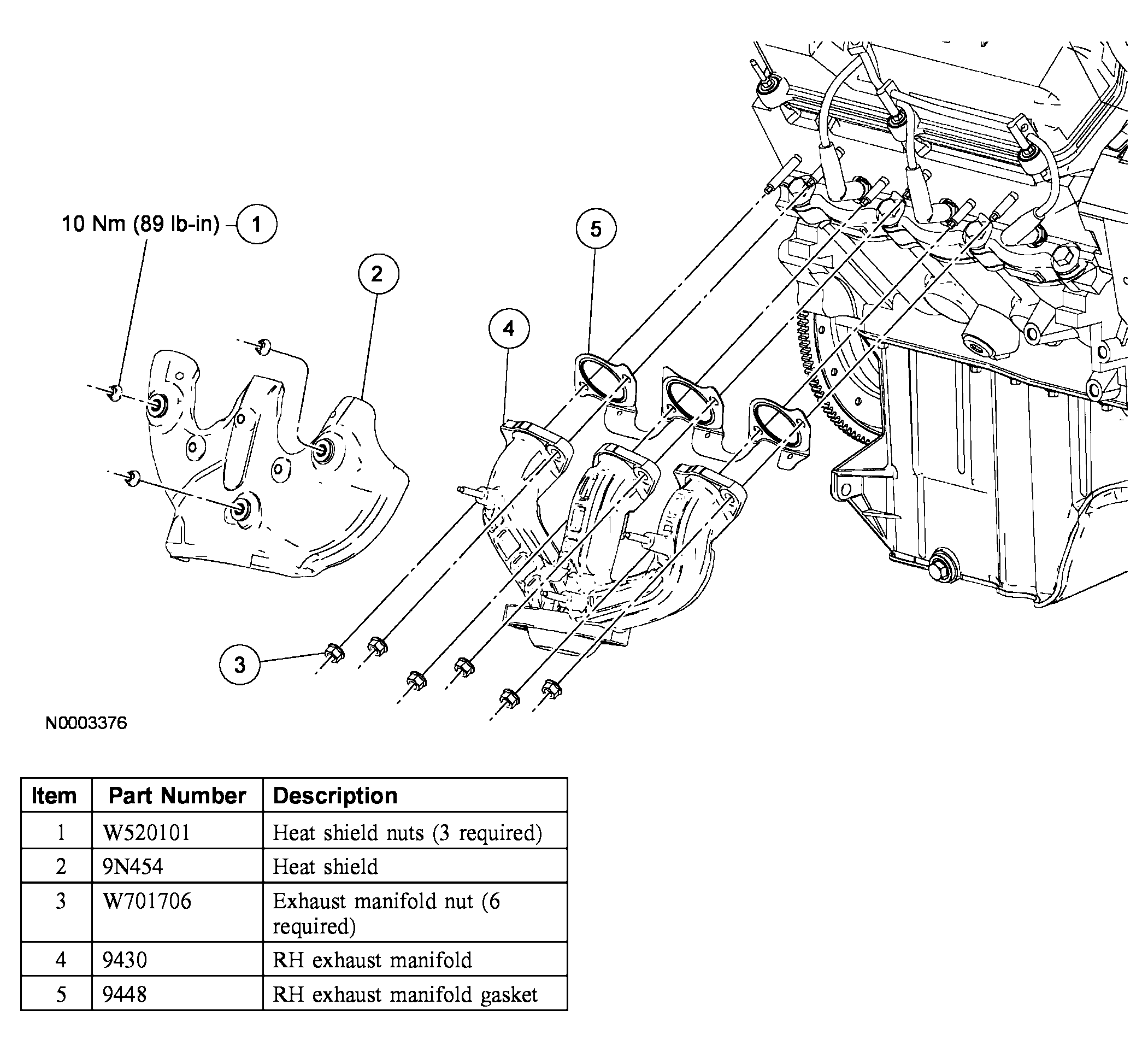

Fig 1: Identifying Exhaust Manifold - RH Components

G04004017

Courtesy of FORD MOTOR CO.
