Idle Air Control (IAC) Valve: Notes

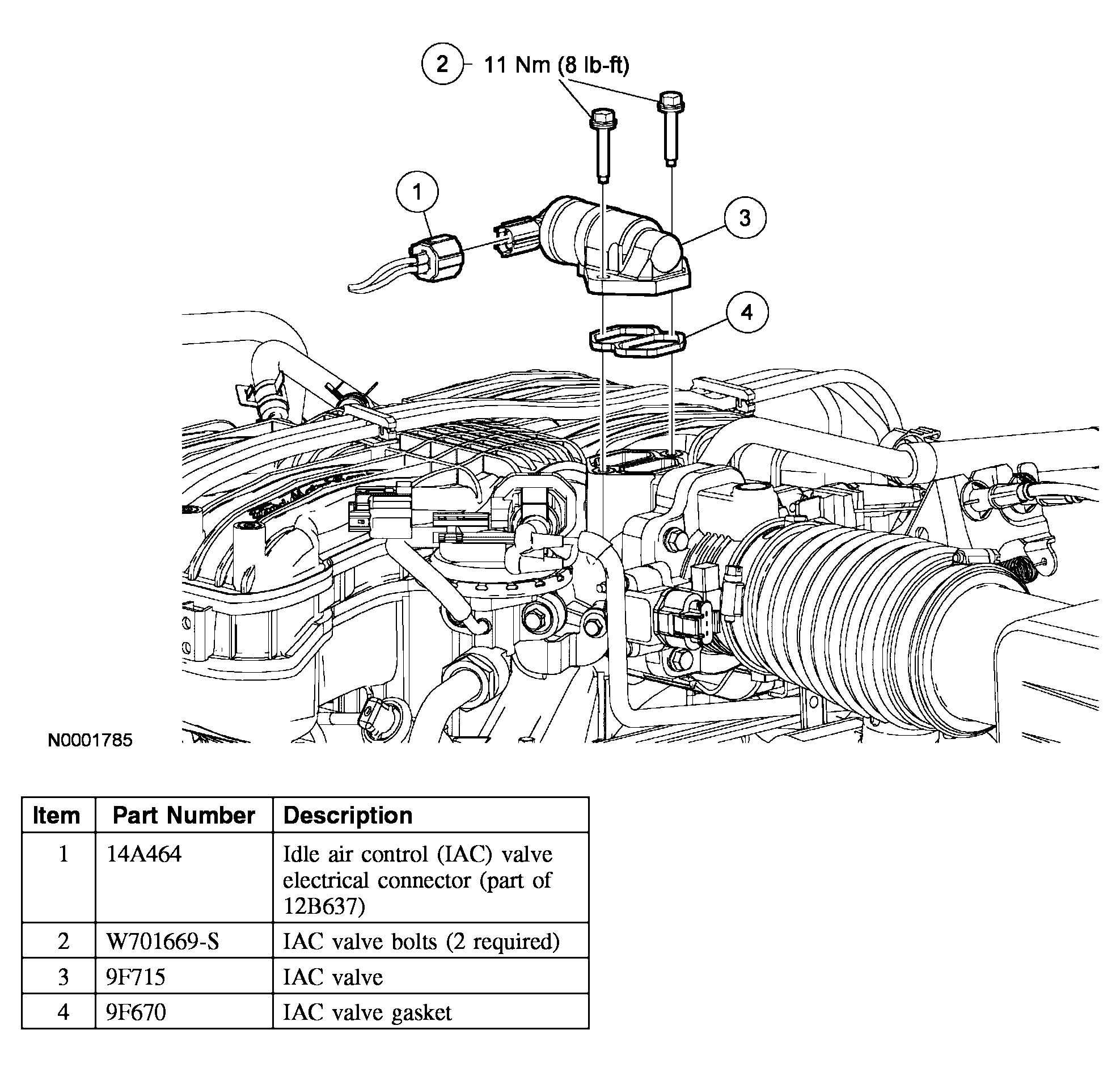

Fig 1: Installing Idle Air Control Valve
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
