Knock Sensor (KS): Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

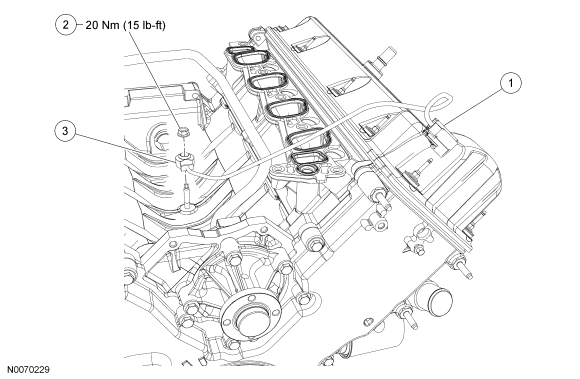

Fig 1: Exploded View Of Knock Sensor (KS) With Torque Specifications
GF0046725Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Knock sensor (KS) electrical connector
2 N804178 KS nut
3 12A699 KS
