Tire Pressure Sensor Training
WARNING:
In the following procedure, TPM Activation Magnet (204-324) is used. Death or serious injury can occur if magnetically sensitive devices are exposed to the relearn magnet. Magnets can affect pacemakers.
NOTE:
The tire pressure sensor training procedure must be done on a single vehicle, in an area without radio frequency (RF) noise. RF noise is generated by electrical motor and appliance operation, cellular telephones and remote transmitters, power inverters and portable entertainment equipment.
- Turn ignition switch to OFF position.
- Turn ignition switch from OFF position to the RUN position 3 times, ending in RUN position. Do not wait more than one minute between each key cycle.
- Press and release the brake pedal.
- Turn ignition switch to OFF position.
- Turn ignition switch from OFF position to the RUN position 3 times, ending in RUN position. Do not wait more than one minute between each key cycle.

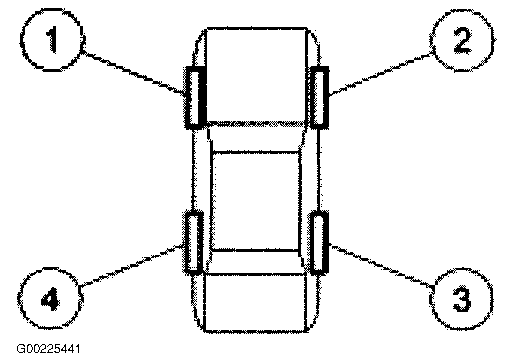

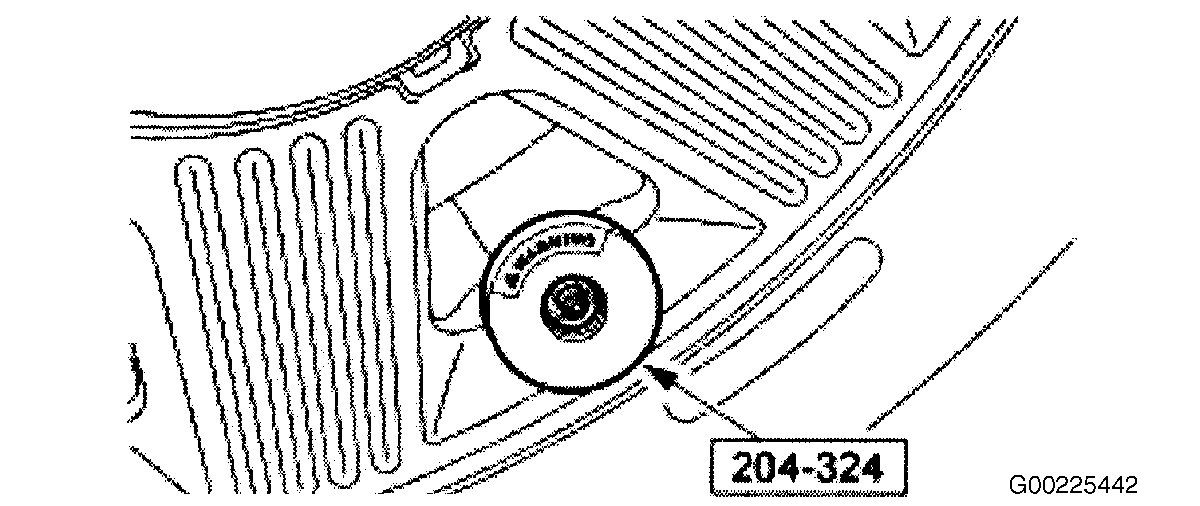

- The horn will sound once and the TPMS indicator will flash if train mode has been entered successfully (if equipped, the message center displays "TRAIN LF TIRE"). Place TPM Activation Magnet (204-324) on the valve stem of the left front tire pressure sensor. The horn will sound briefly to indicate that the tire pressure sensor has been recognized by the TPMS module. See Fig 1 and Fig 2 .
- Within 2 minutes after the horn sounds, place the magnet on the valve stem of the right front tire pressure sensor. Repeat procedure for right rear and left rear tires.NOTE: If the VSM (TPMS module is integral to VSM) does not recognize any one of the 4 tire pressure sensors during the tire training procedure, the horn will sound twice and the message center (if equipped) will display "TIRE NOT TRAINED REPEAT". If this occurs, procedure must be repeated.
- When the tire training procedure is complete, the horn will sound once and the message center (if equipped) will display "TIRE TRAINING MODE COMPLETE".
