Ride Height

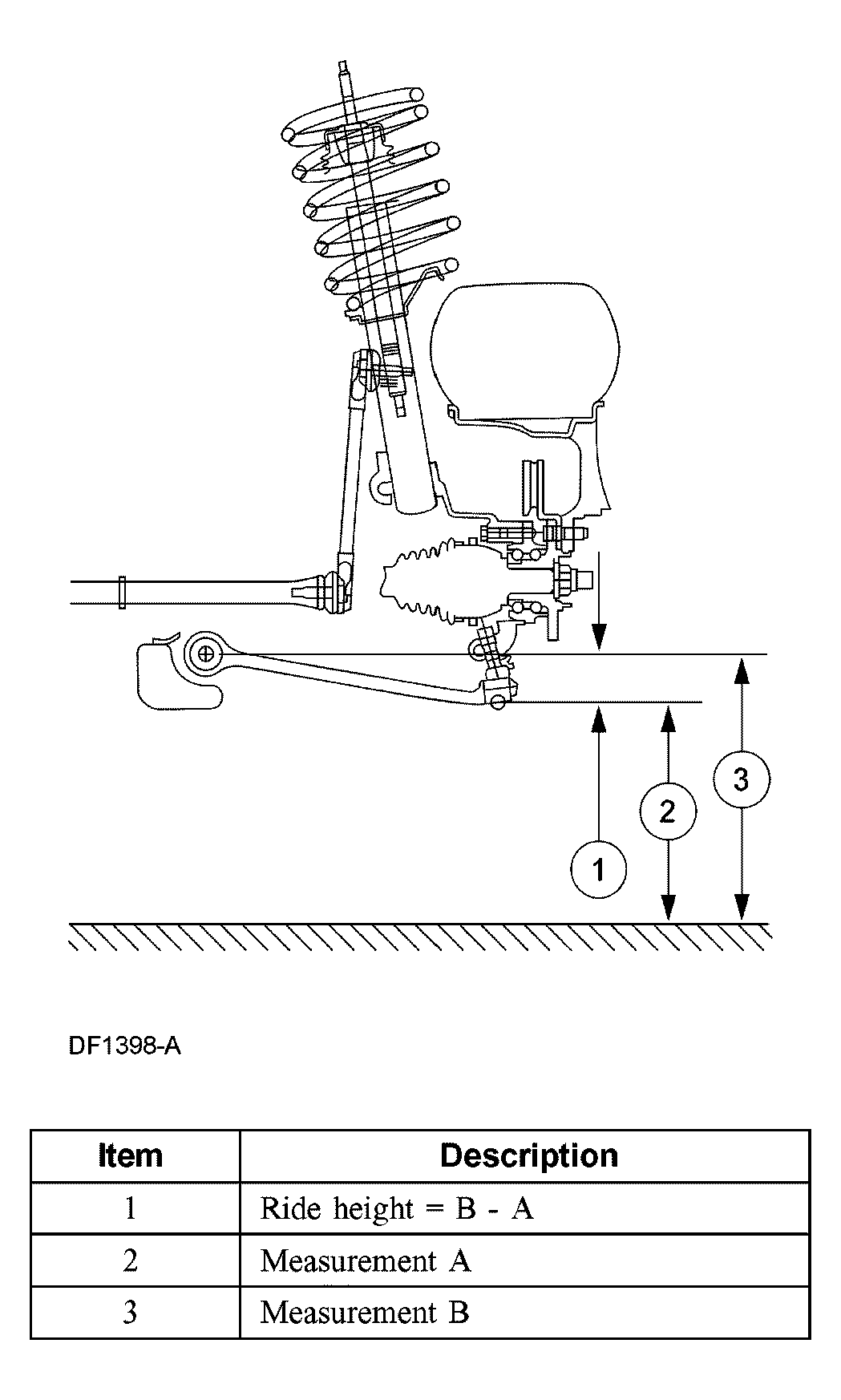

Fig 1: Measuring Front Ride Height
Courtesy of FORD MOTOR CO.

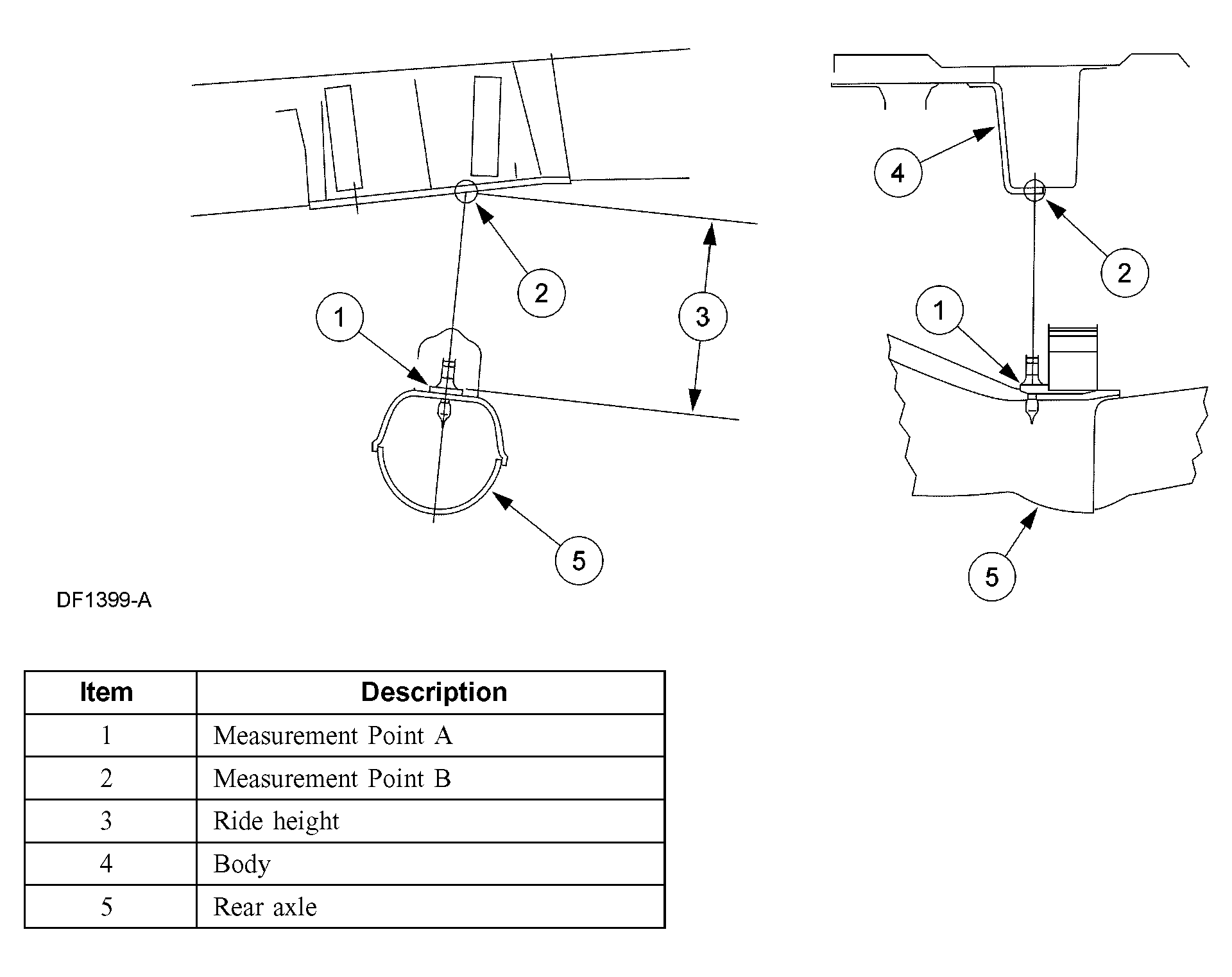

Fig 2: Measuring Rear Ride Height
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
