Drive Sprocket/Turbine Shaft: Notes

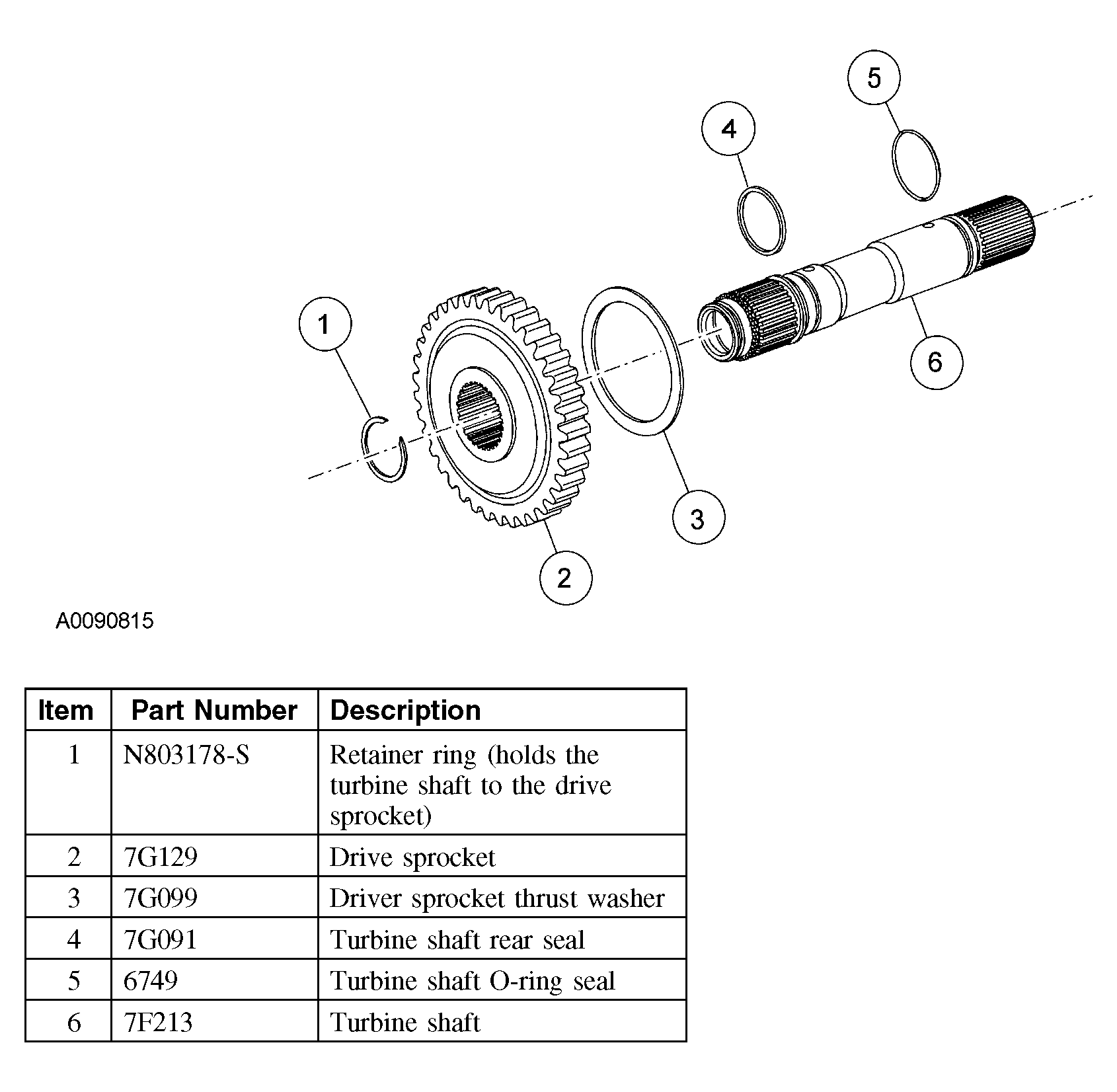

Fig 1: Identifying Drive Sprocket/Turbine Shaft Components
G04005001Courtesy of FORD MOTOR CO.
