Pump Shaft

NOTE: For an exploded view and part location, refer to ASSEMBLY .
    NOTE: Inspect the pump drive shaft in the area that the bearings ride. If worn, install a new shaft and main control.

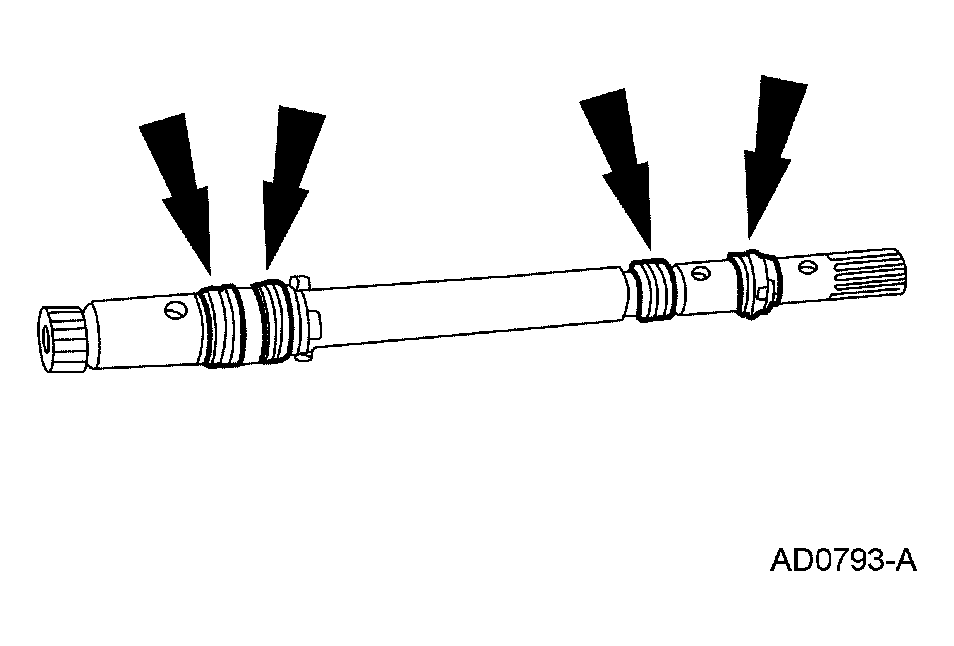

    Fig 1: Inspecting Pump Shaft
    G03957046Courtesy of FORD MOTOR CO.
  1. Remove the Teflon® seals and inspect the shaft.
    2. NOTE: Make sure that the seals are installed correctly.

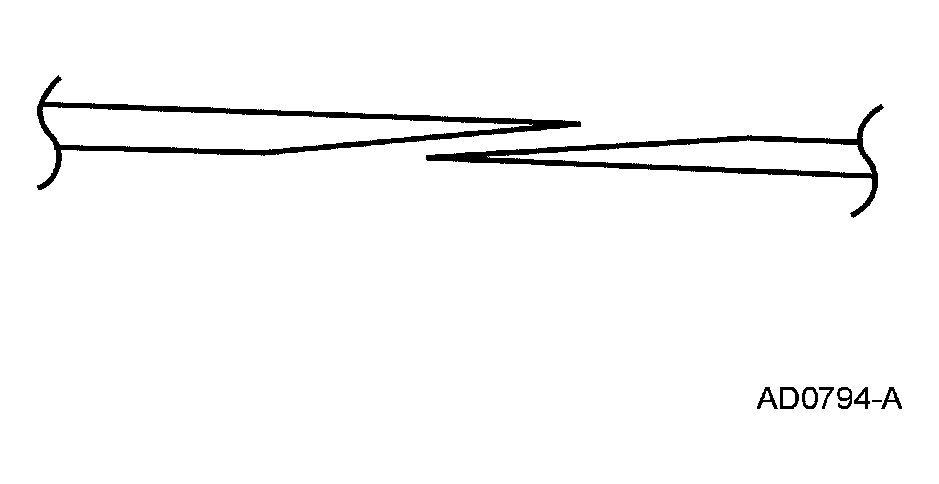

    Fig 2: Identifying Seal Ring Mating
    G03957047Courtesy of FORD MOTOR CO.
  2. Install 4 new seals on the pump shaft.
