Reverse Clutch: Disassembly

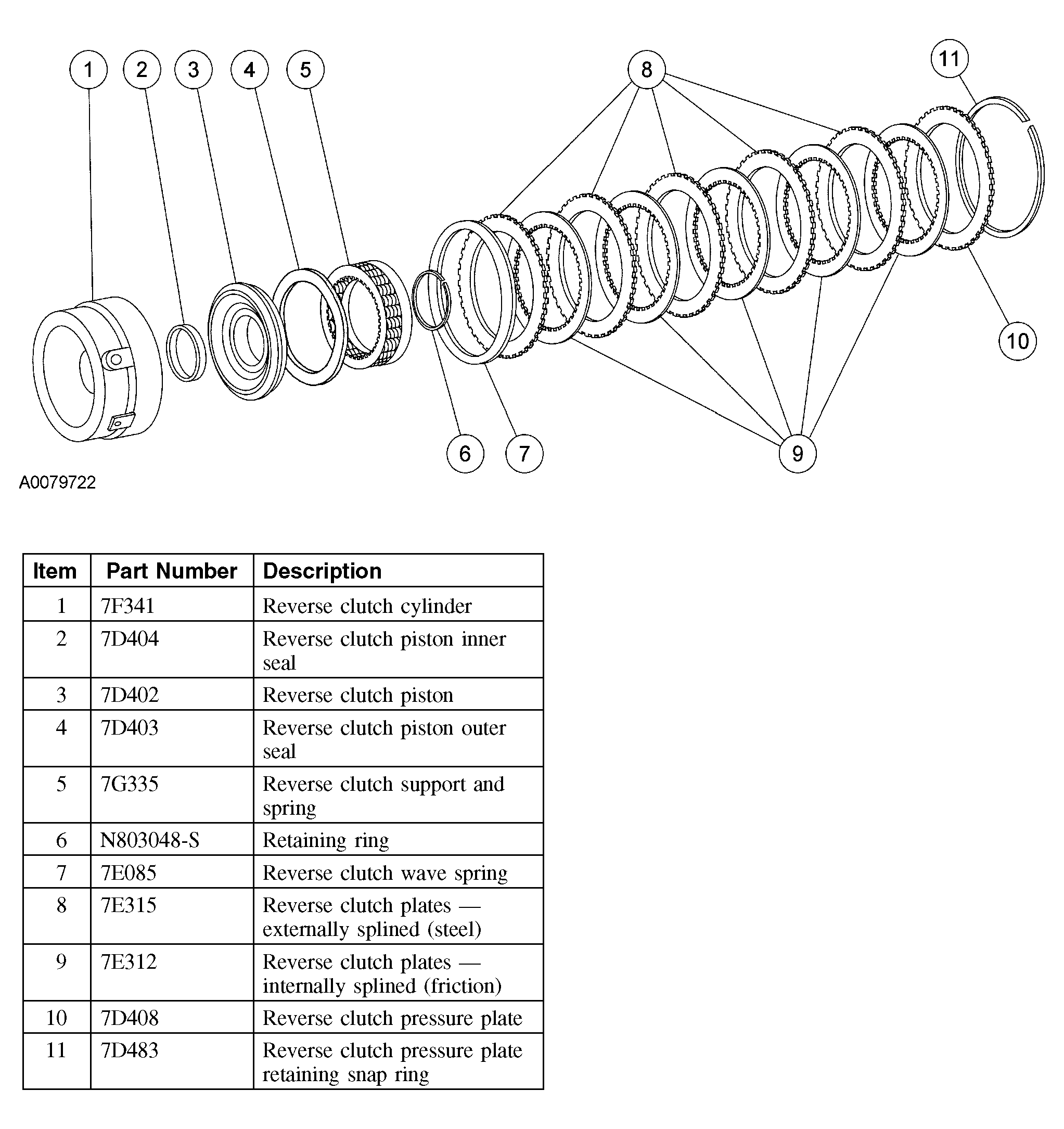

Fig 1: Identifying Reverse Clutch Components
G04005089Courtesy of FORD MOTOR CO.
  1. Remove the reverse clutch pack assembly.
    1. Remove the reverse clutch pressure plate retaining snap ring.
    2. Remove the reverse clutch pressure plate.
    3. Remove the clutch pack.
    4. Remove the wave spring.
    Fig 2: Removing Reverse Clutch Pack Assembly
    G04005090Courtesy of FORD MOTOR CO.
    2. CAUTION: Do not fully compress the spring retainer.
    Fig 3: Locating Snap Ring
    G03957206Courtesy of FORD MOTOR CO.
  2. Using the special tool, remove the snap ring.
  3. Remove the reverse clutch support and spring.
    Fig 4: Removing Reverse Clutch Support And Spring
    G03957207Courtesy of FORD MOTOR CO.
  4. Remove the reverse clutch piston.

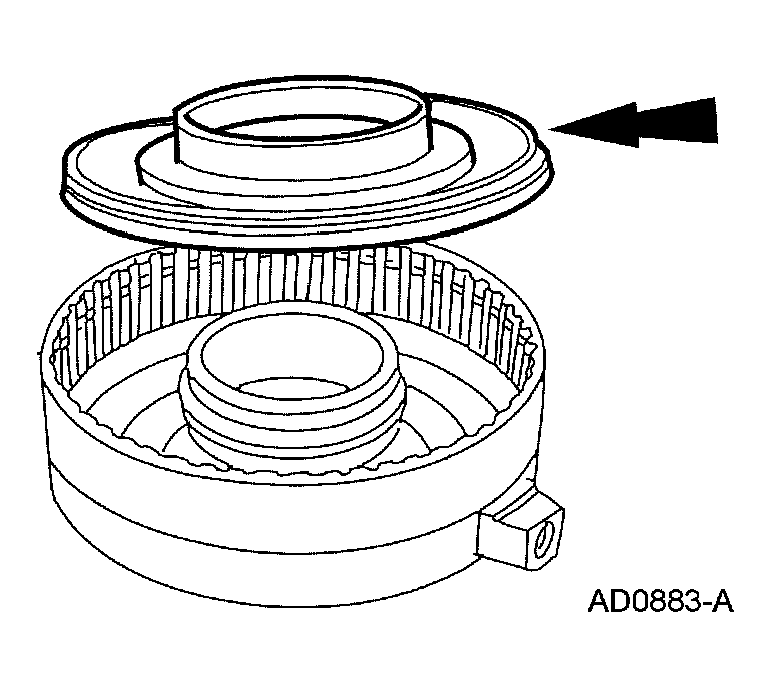

    Fig 5: Removing Reverse Clutch Piston
    G03957208Courtesy of FORD MOTOR CO.
  5. Remove the reverse clutch piston outer seal.
    Fig 6: Removing Reverse Clutch Piston Outer Seal
    G03957209Courtesy of FORD MOTOR CO.
  6. Remove the reverse clutch piston inner seal.
    Fig 7: Removing Reverse Clutch Piston Inner Seal
    G03957210Courtesy of FORD MOTOR CO.
