Digital Transmission Range (TR) Sensor: Installation

Install the digital TR sensor and loosely install the bolts.

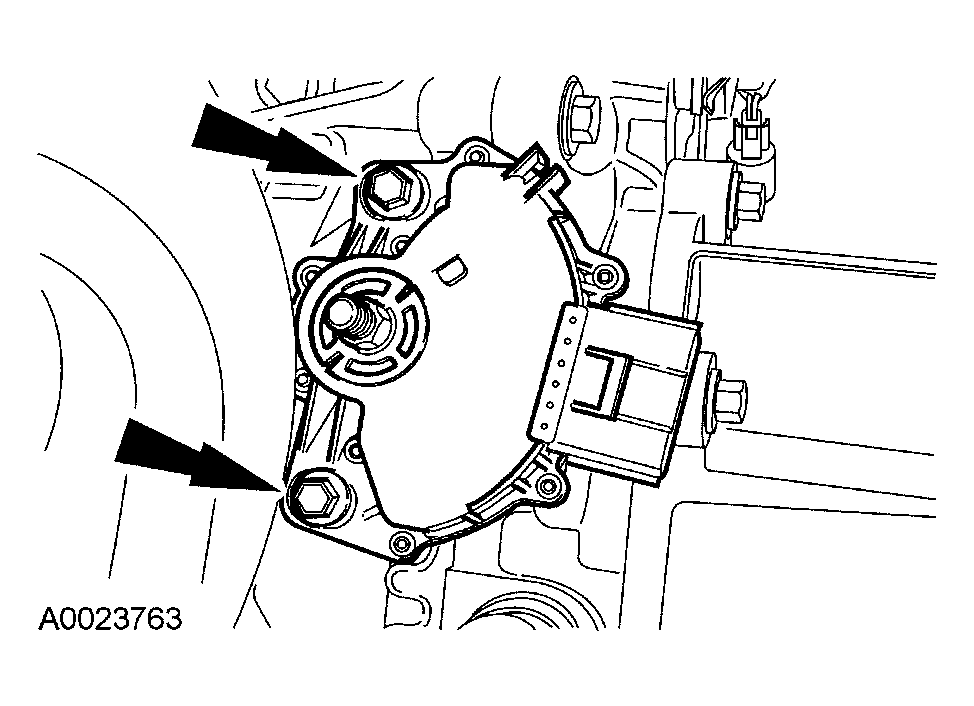

Fig 1: Installing Digital TR Sensor
Courtesy of FORD MOTOR CO.
Using the special tool, align the digital TR sensor and tighten the bolts.
- Tighten to 10 Nm (89 lb-in).

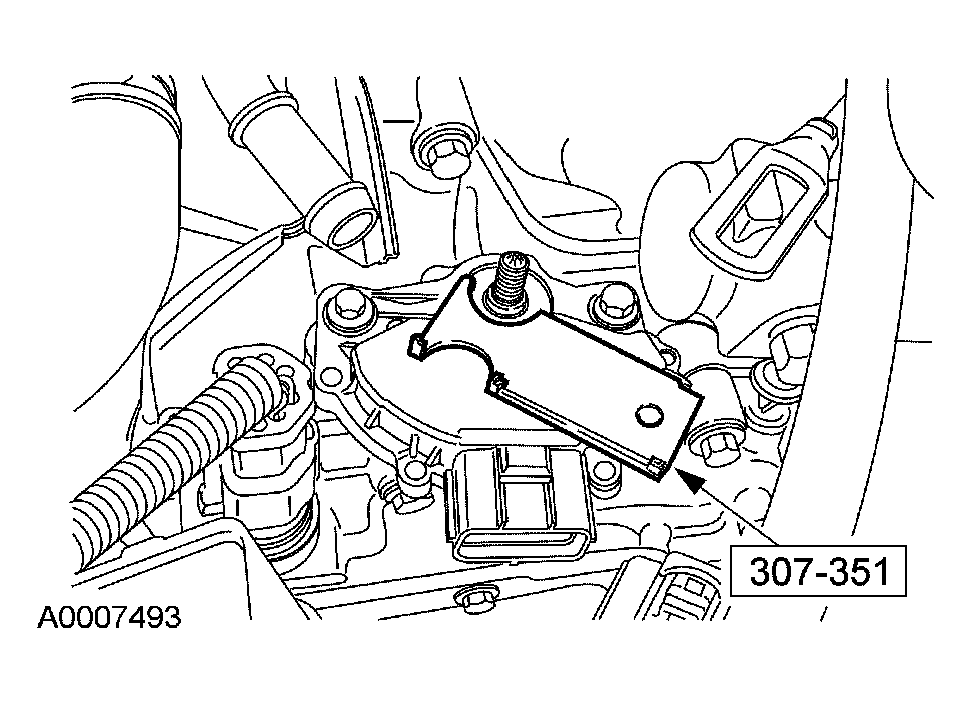

Fig 2: Aligning Digital TR Sensor
Courtesy of FORD MOTOR CO.
Install the manual control lever and cable 1 Install the manual lever and nut.
- Tighten to 13 Nm (10 lb-ft).
Fig 3: Installing Manual Control Lever And Cable
Courtesy of FORD MOTOR CO.
Connect the shift cable back onto the manual control lever.

Fig 4: Connecting Shift Cable Back Onto Manual Control Lever
Courtesy of FORD MOTOR CO.

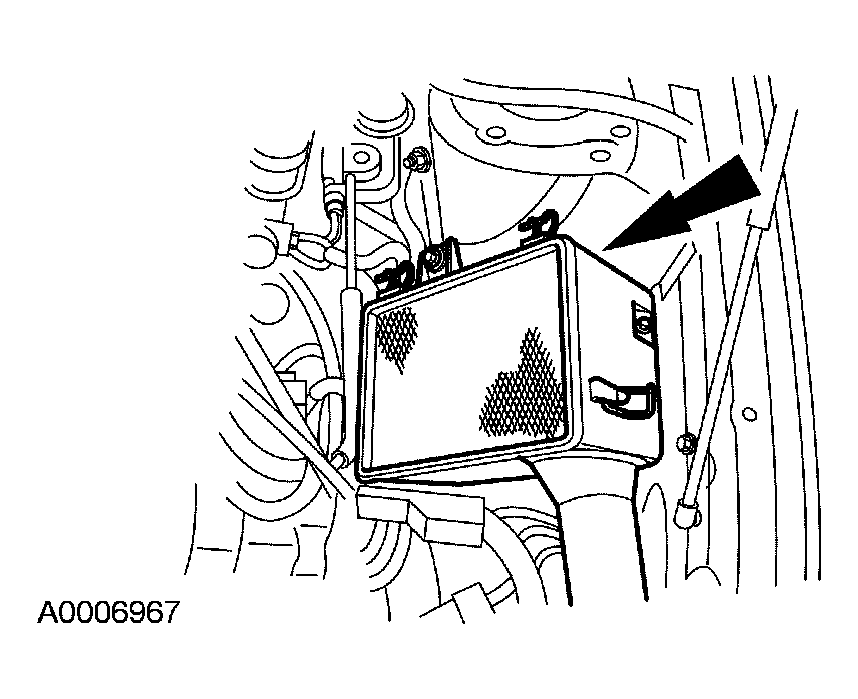

Install the air filter assembly.

Fig 5: Identifying Air Filter Assembly
Courtesy of FORD MOTOR CO.

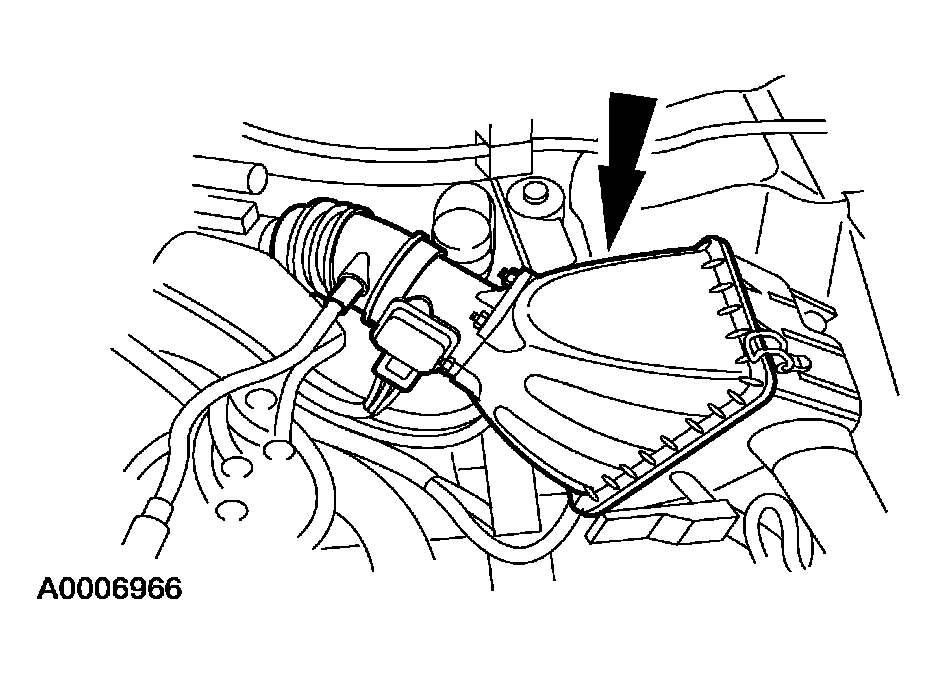

Install the engine air cleaner lid.

Fig 6: Identifying Engine Air Cleaner Lid
Courtesy of FORD MOTOR CO.

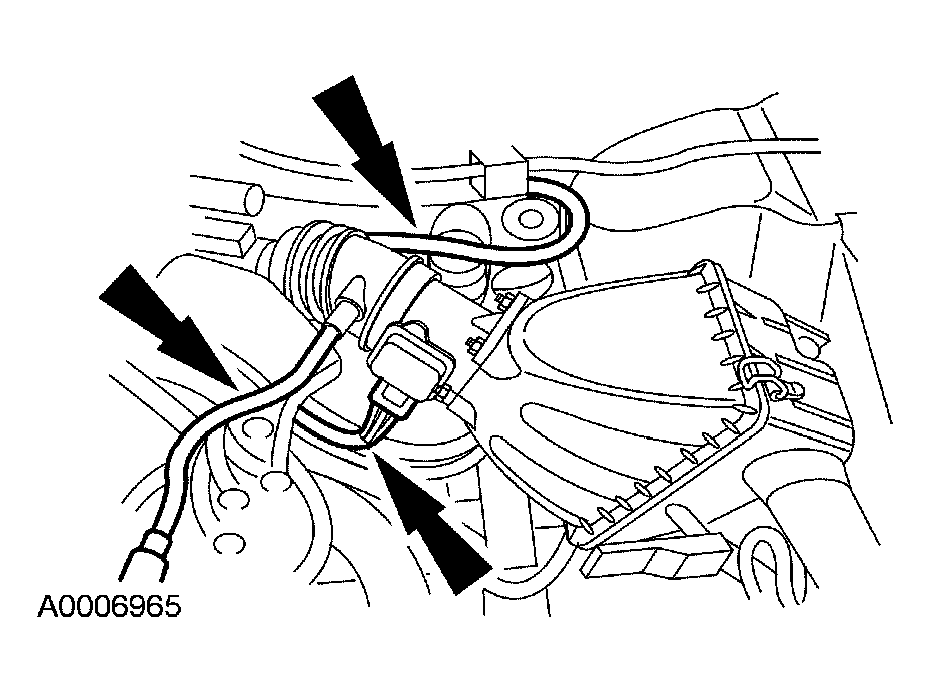

Reconnect the mass air flow (MAF) sensor and the breather tubes.

Fig 7: Identifying Mass Air Flow (MAF) Sensor And Breather Tubes
Courtesy of FORD MOTOR CO.
Verify that the shift cable is correctly adjusted. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
