Digital Transmission Range (TR) Sensor: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Place the transaxle range selector in NEUTRAL.

Fig 1: Identifying Selector Lever Neutral Position
Courtesy of FORD MOTOR CO.
Disconnect the mass air flow (MAF) sensor and the breather tubes.

Fig 2: Identifying Mass Air Flow (MAF) Sensor And Breather Tubes
Courtesy of FORD MOTOR CO.
Remove the engine air cleaner lid.

Fig 3: Identifying Engine Air Cleaner Lid
Courtesy of FORD MOTOR CO.
Remove the air filter assembly.

Fig 4: Identifying Air Filter Assembly
Courtesy of FORD MOTOR CO.

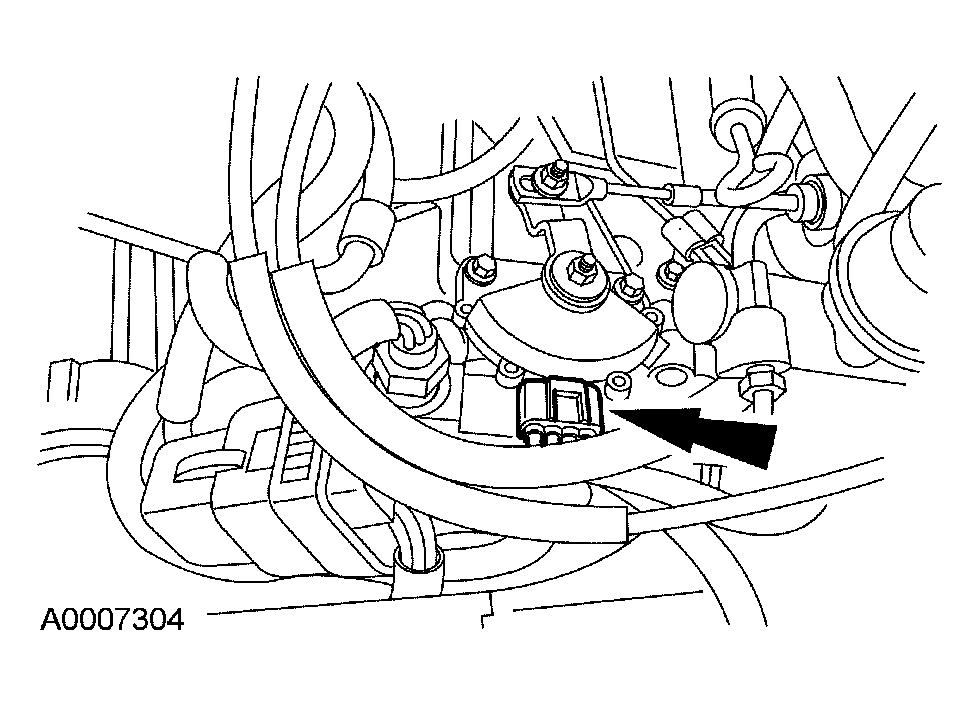

Disconnect the digital transmission range (TR) sensor electrical connector.

Fig 5: Identifying Digital Transmission Range (TR) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the manual control lever and cable.
- Remove the nut.
- Remove the manual control lever and cable.
Fig 6: Removing Manual Control Lever And Cable
Courtesy of FORD MOTOR CO.

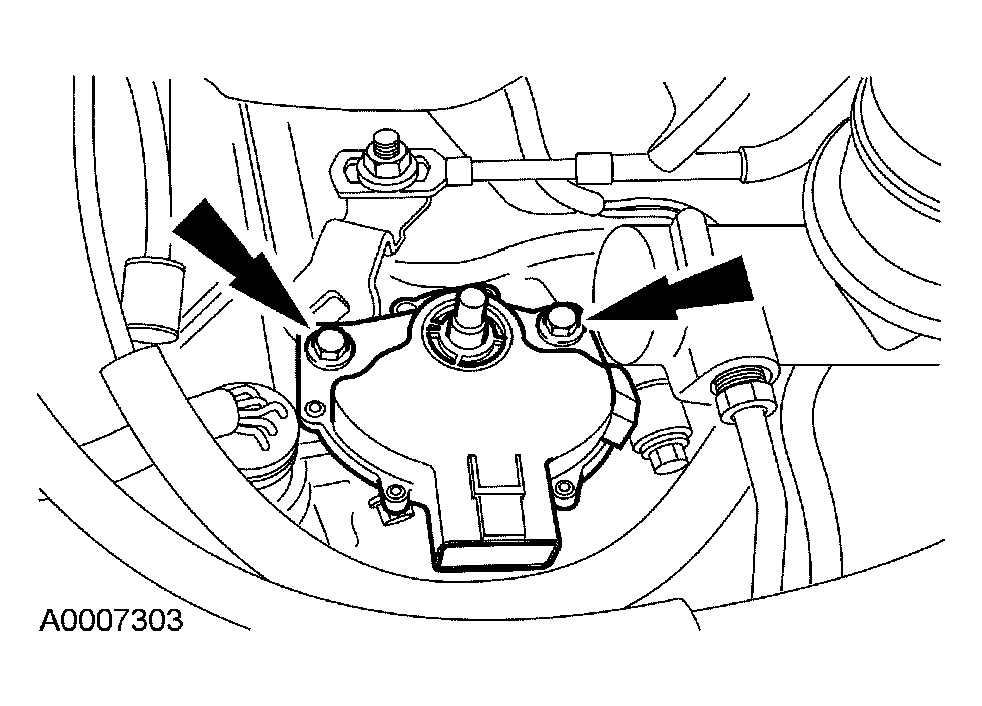

Remove the 2 bolts and the digital TR sensor.

Fig 7: Locating Digital TR Sensor
Courtesy of FORD MOTOR CO.
