Output Shaft Speed (OSS) Sensor: Installation

  1. Install the OSS sensor.

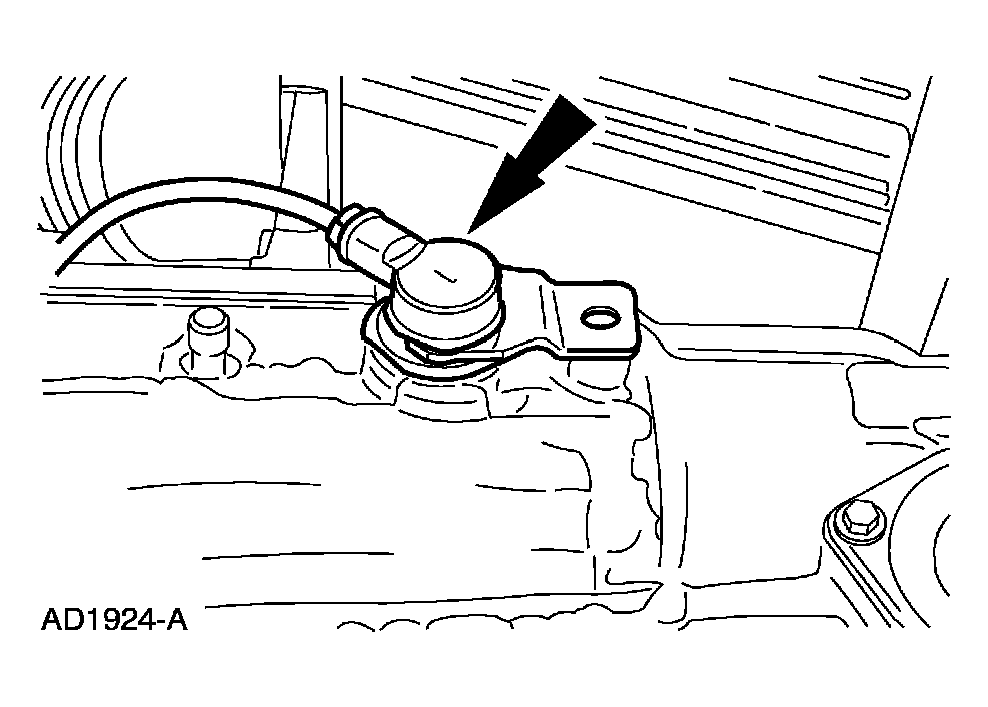

    Fig 1: Installing OSS Sensor
    G03956818Courtesy of FORD MOTOR CO.
  2. Install the OSS cover.
    1. Install the cover.
    2. Install the bolt.
      • Tighten to 11 Nm (8 lb-ft).
    3. Install the connector.

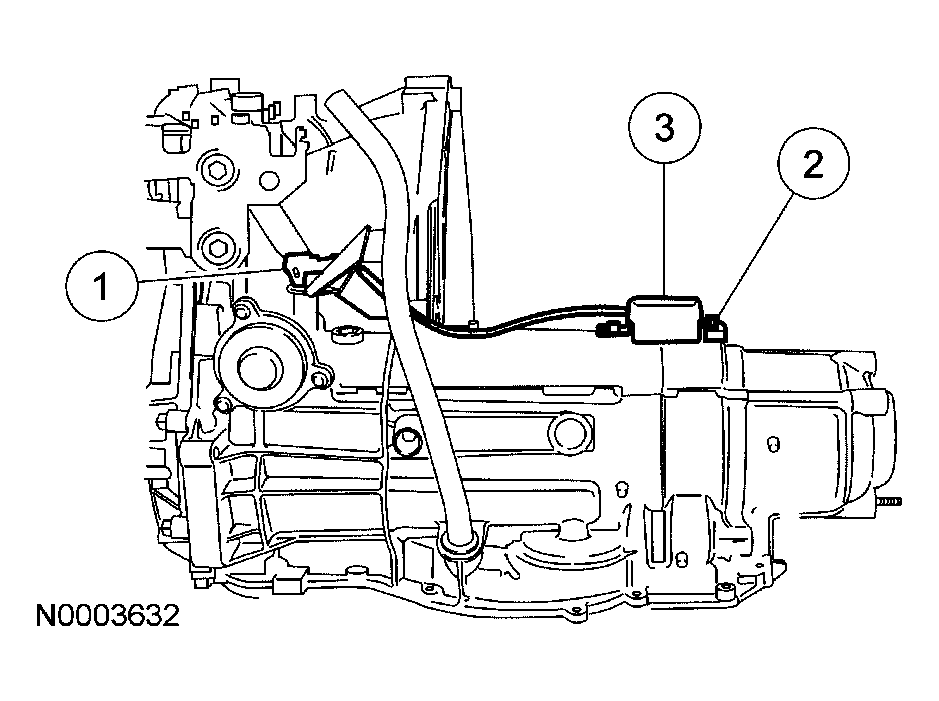

    Fig 2: Installing OSS Cover
    G04004723Courtesy of FORD MOTOR CO.
  3. Connect the OSS connector.

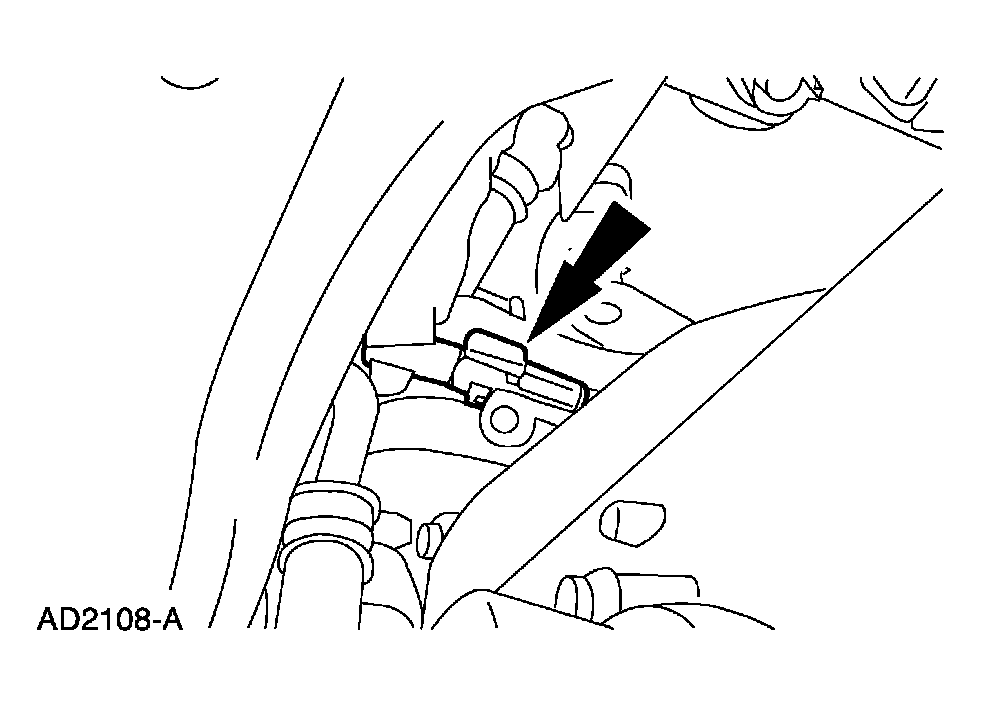

    Fig 3: Connecting OSS Connector
    G03955954Courtesy of FORD MOTOR CO.
  4. Install the heat shield.
    Fig 4: Installing Heat Shield
    G04004721Courtesy of FORD MOTOR CO.
  5. Install the catalytic converter. For additional information, refer to EXHAUST SYSTEM .
