Keyless Entry Key-Pad: Service and Repair

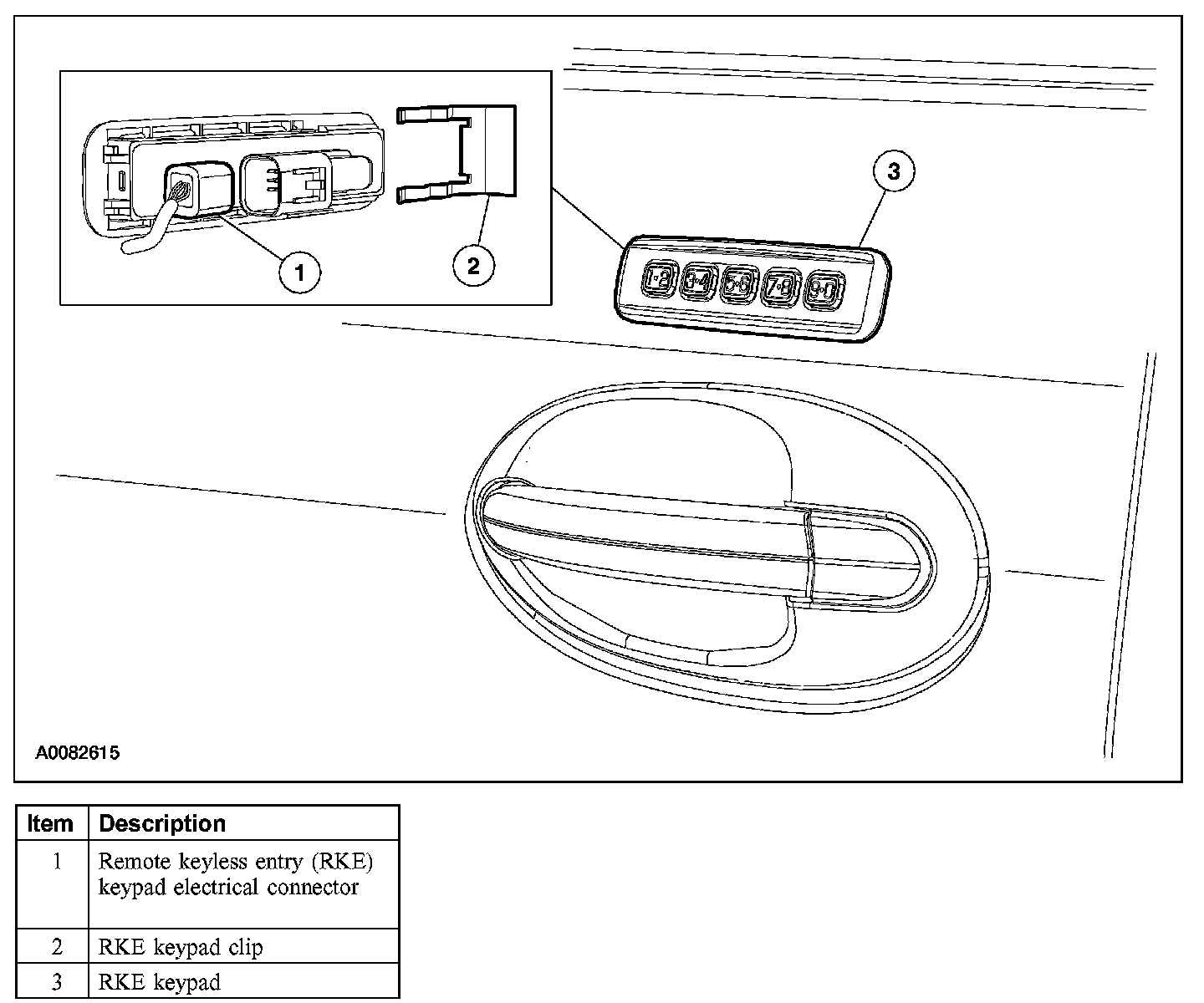

REMOTE KEYLESS ENTRY KEYPAD







Removal and Installation
1. Remove the front door trim panel.
2. Disconnect the RKE keypad electrical connector.
3. Remove the clip and the RKE keypad.
4. To install, reverse the removal procedure.
