Engine Control Module: Service and Repair

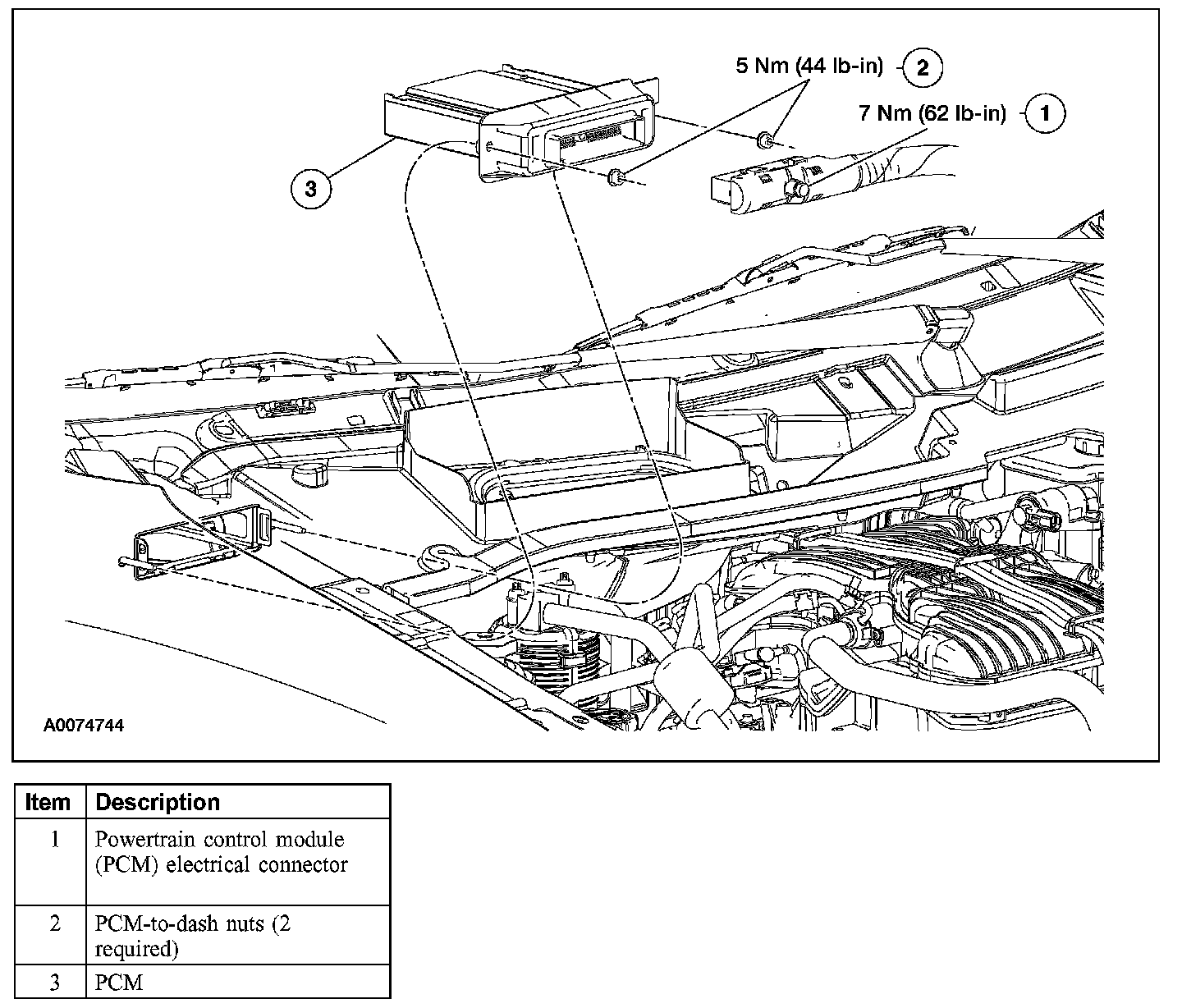

POWERTRAIN CONTROL MODULE (PCM)







Removal and Installation
1. Disconnect the battery ground cable.
2. Loosen the bolt and disconnect the PCM electrical connector.
- To install, tighten to 7 Nm (62 lb-in).

3. Remove the 2 PCM-to-dash nuts.
- To install, tighten to 5 Nm (44 lb-in).

4. Remove the PCM.
5. To install, reverse the removal procedure.
