Engine Temperature Sensor: Service and Repair

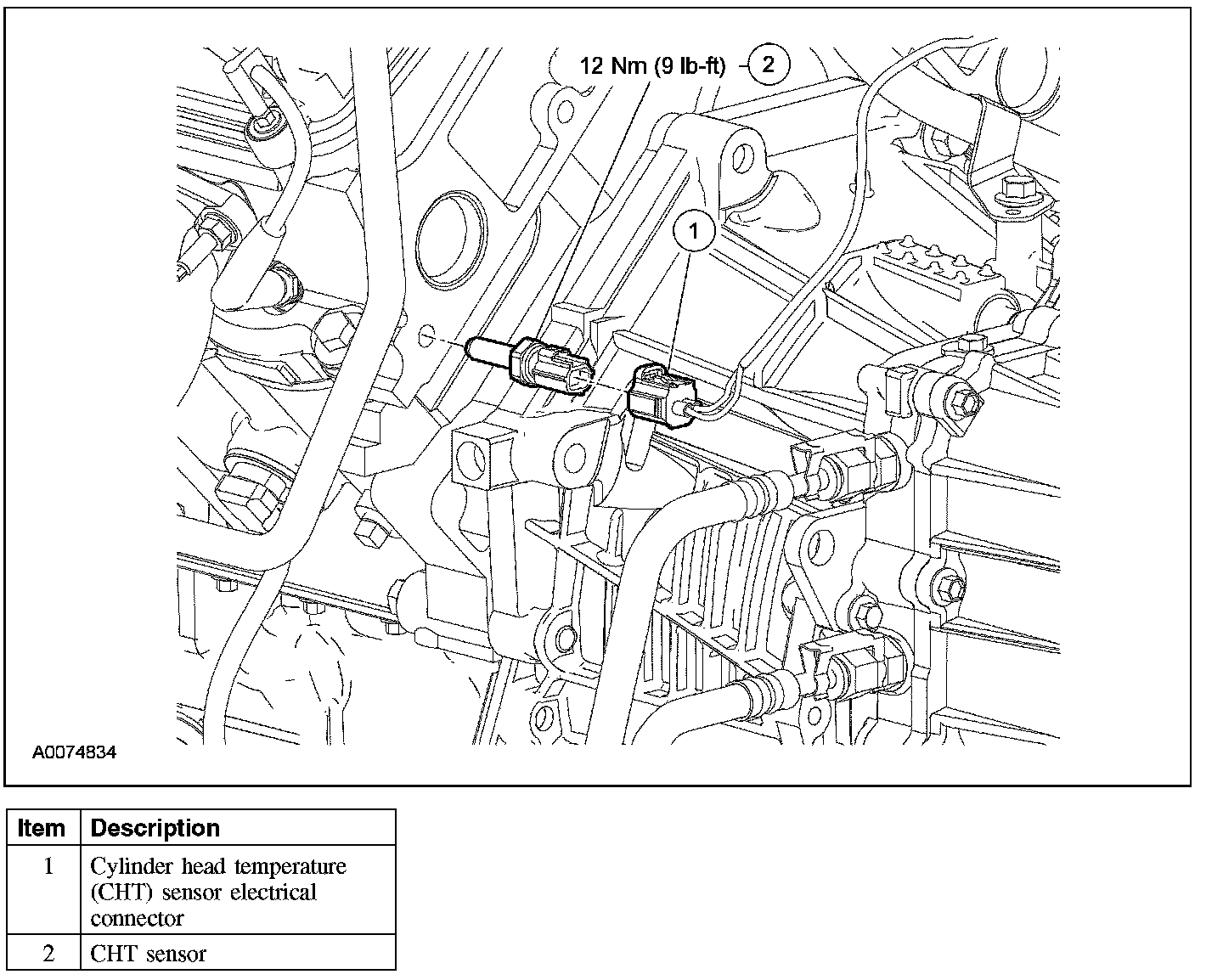

CYLINDER HEAD TEMPERATURE (CHT) SENSOR







Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the CHT sensor electrical connector.
3. Remove the CHT sensor.
- To install, tighten to 12 Nm (9 lb-ft).

4. To install, reverse the removal procedure.
