Throttle Position Sensor: Service and Repair

THROTTLE POSITION (TP) SENSOR

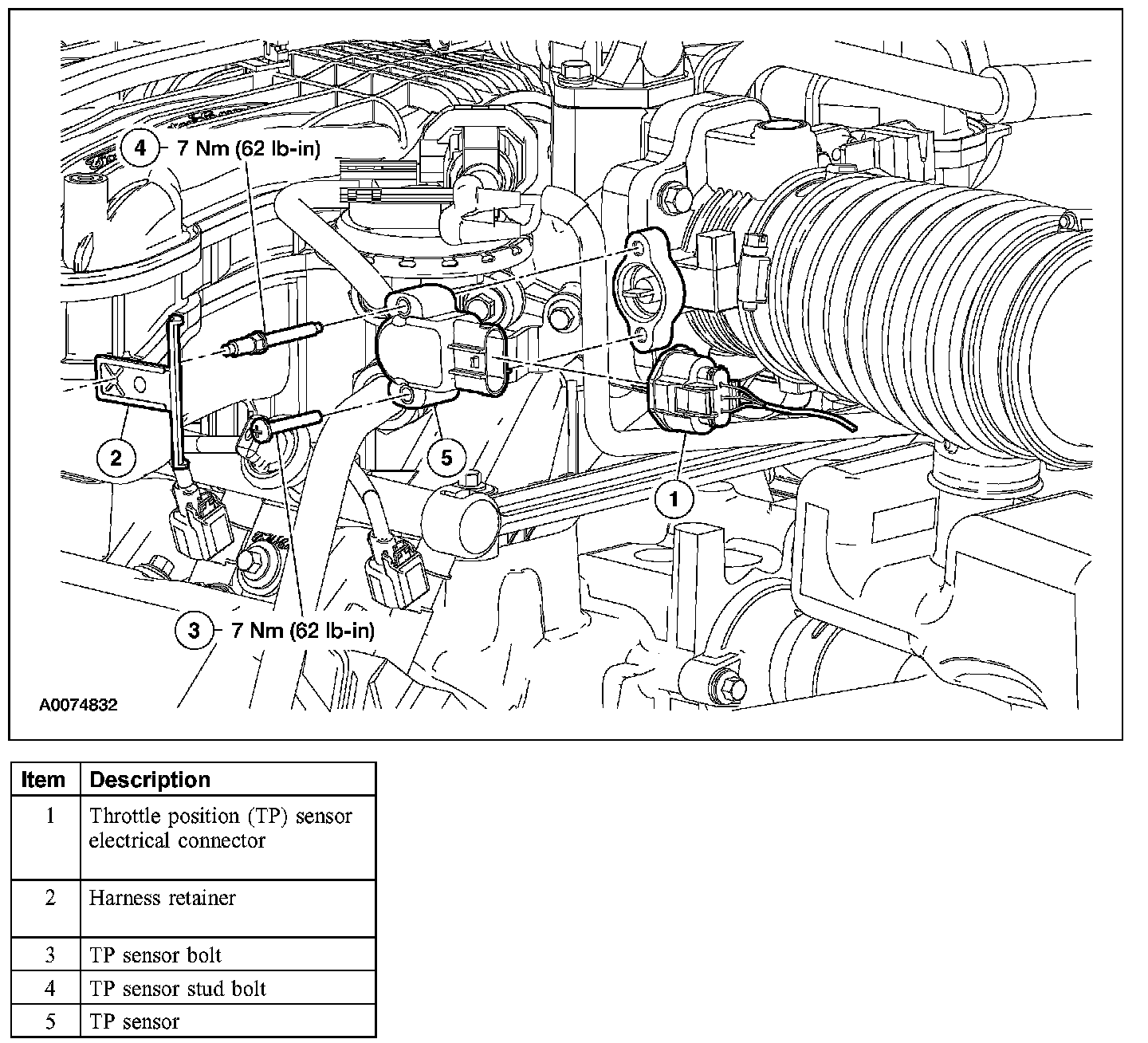

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the TP sensor electrical connector.
3. Detach the harness retainer from the stud bolt.
4. Remove the 2 TP sensor bolts and the TP sensor.
- To install, tighten to 7 Nm (62 lb-in).

5. To install, reverse the removal procedure.
