Timing Cover

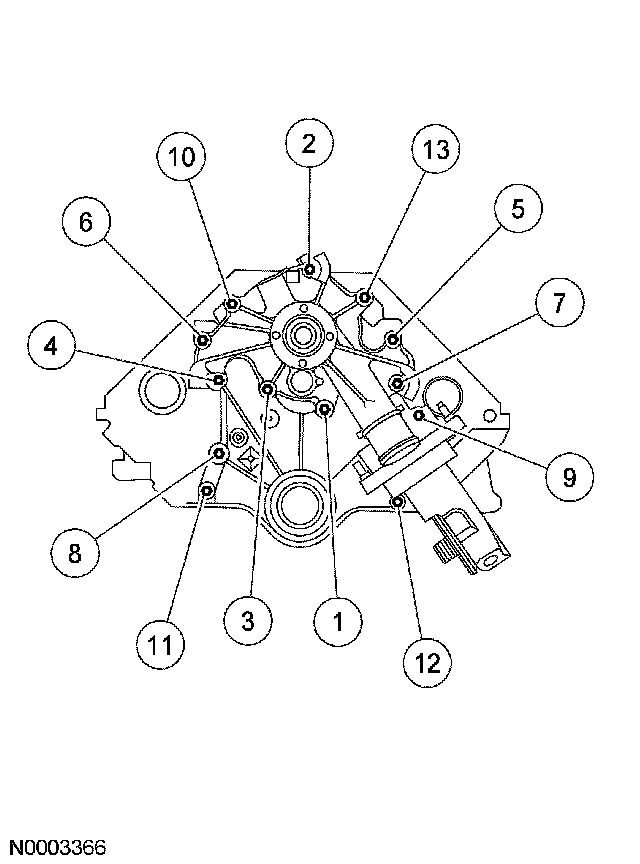

Engine front cover
Tighten the engine front cover studs 7 Nm (62 inch lbs.)
Tighten bolt No. 12 10 Nm (89 inch lbs.)
Tighten all other fasteners 28 Nm (21 ft. lbs.)
