Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

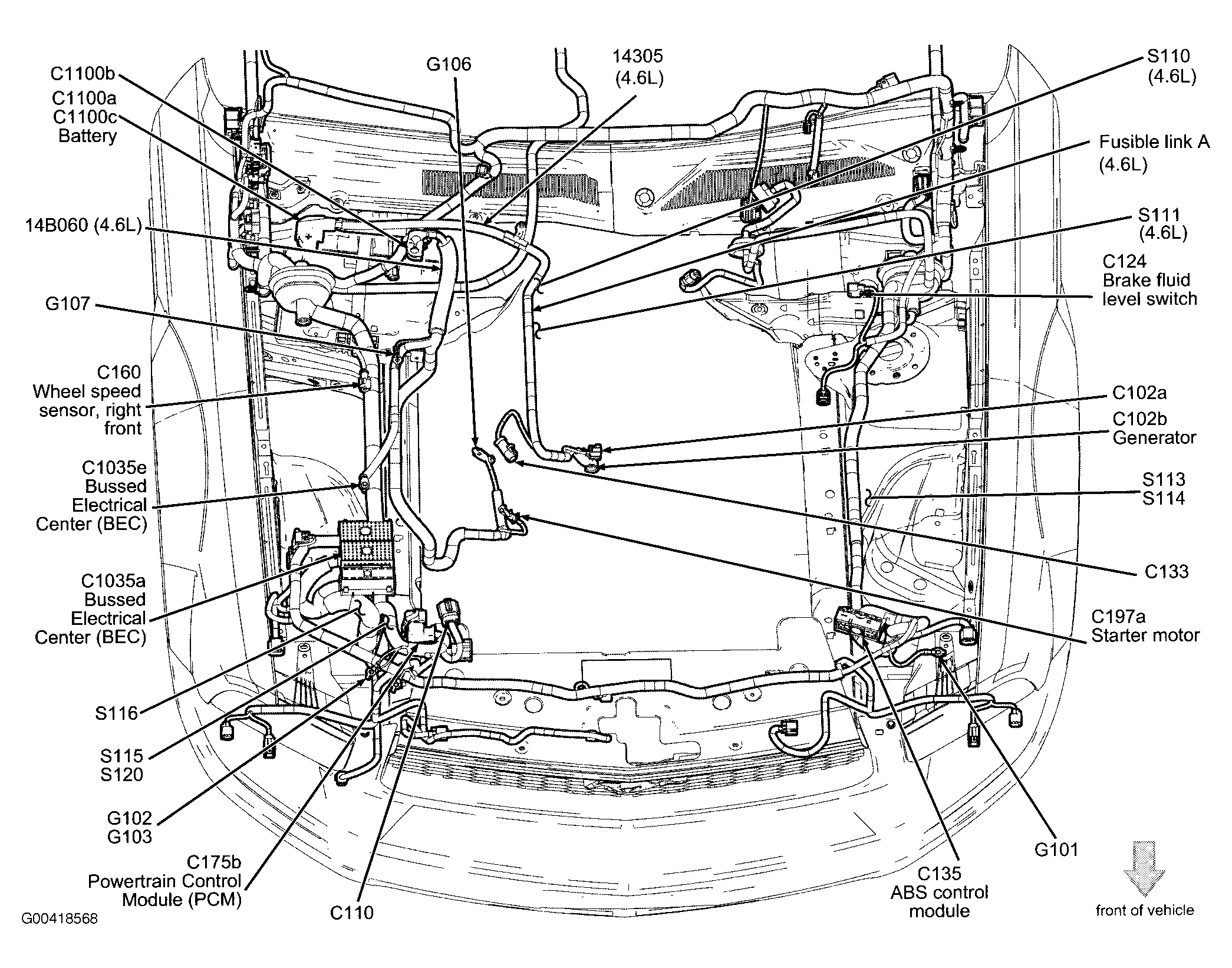

| ABS Control Module | Left front of engine compartment. See Figure . |

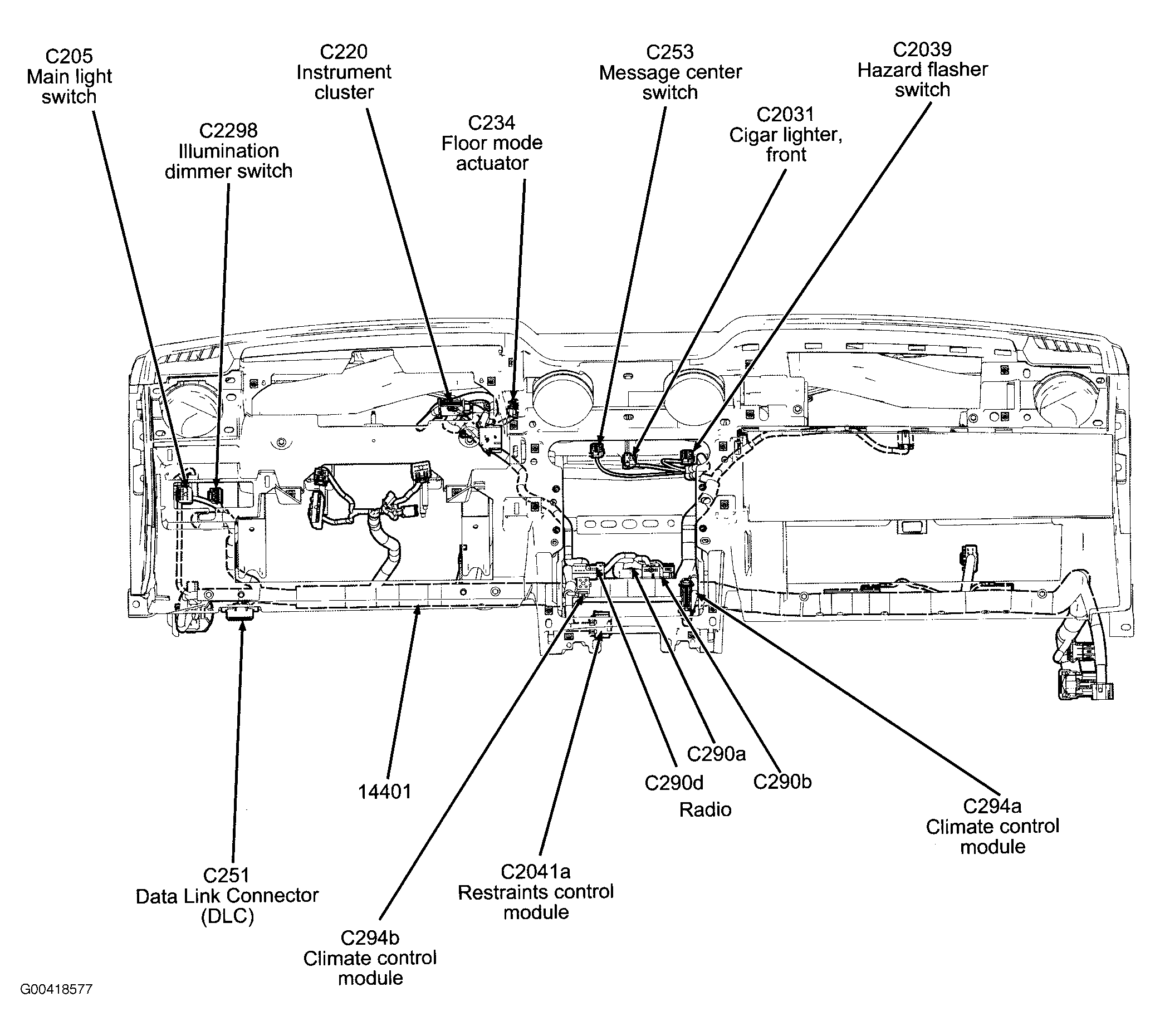

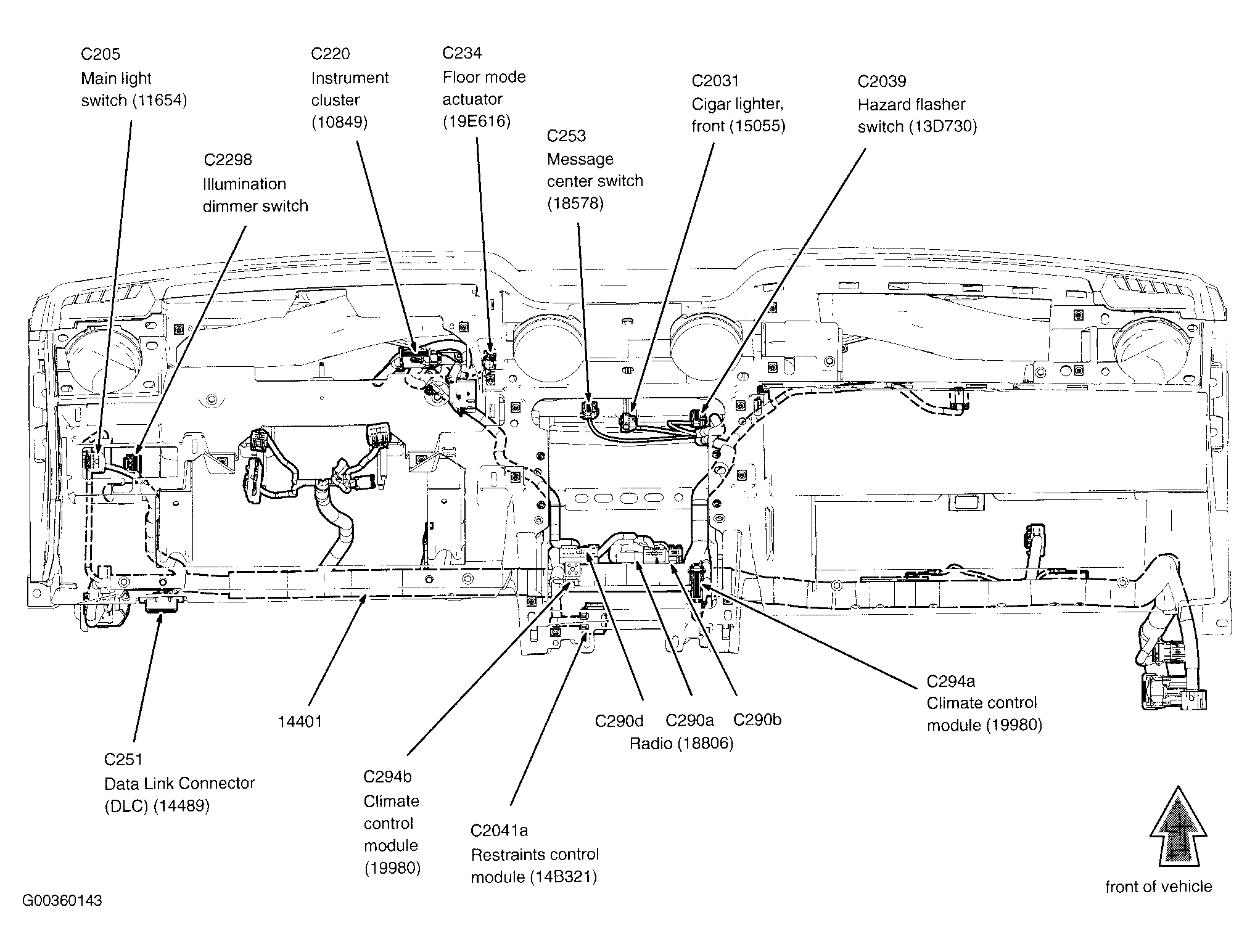

| Climate Control Module | Behind center of dash. See Figure . |

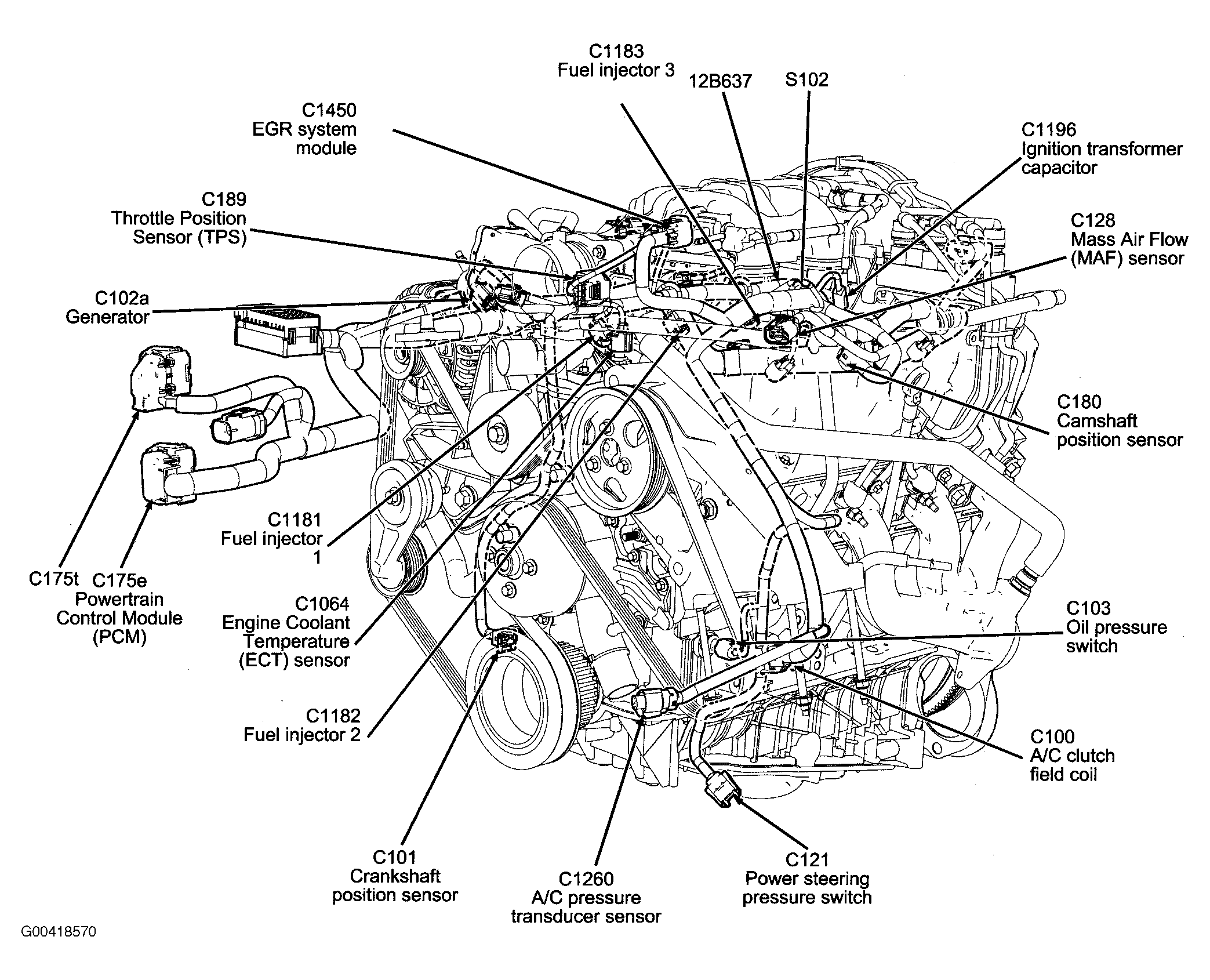

| EGR System Module | Top center of engine. See Figure . |

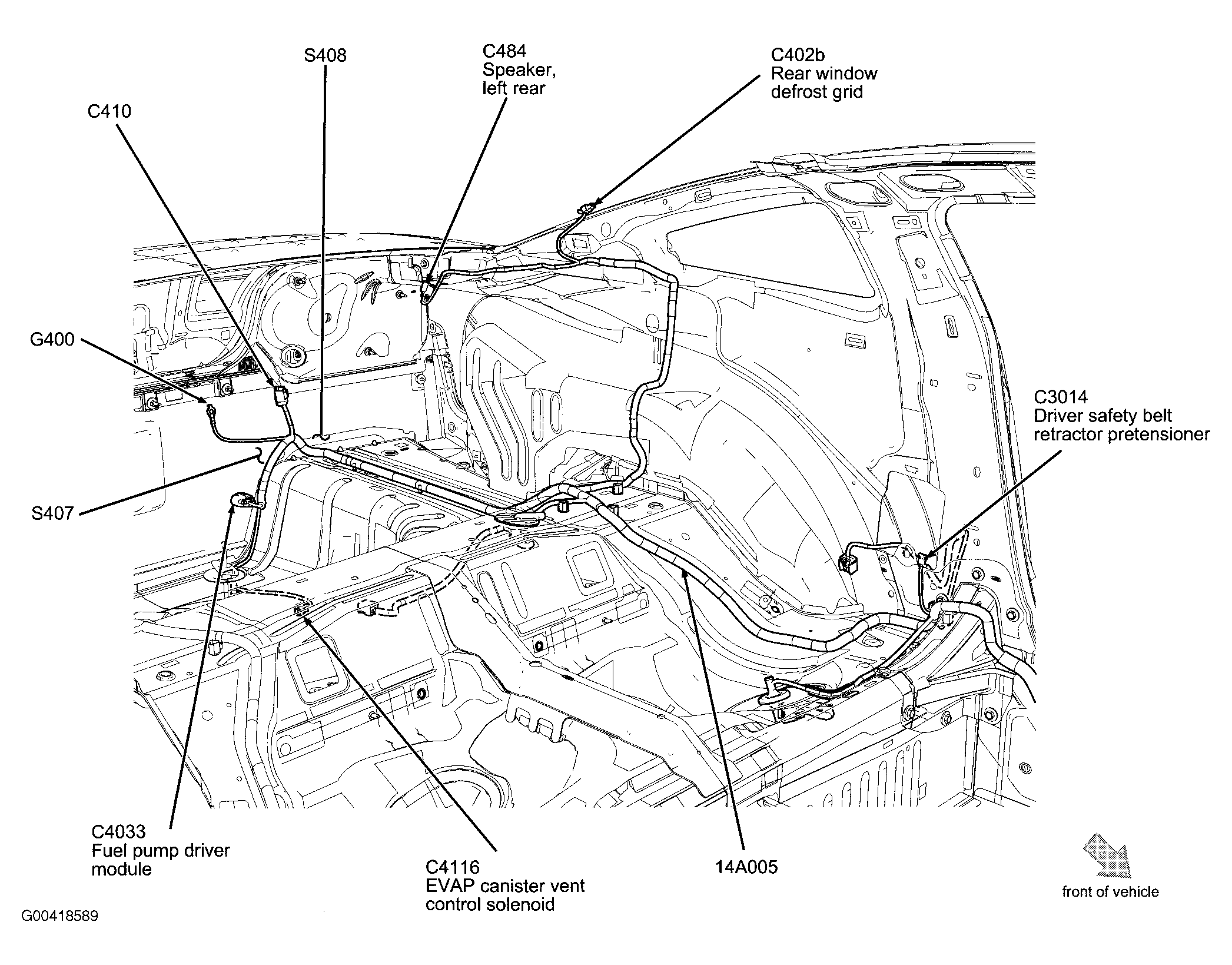

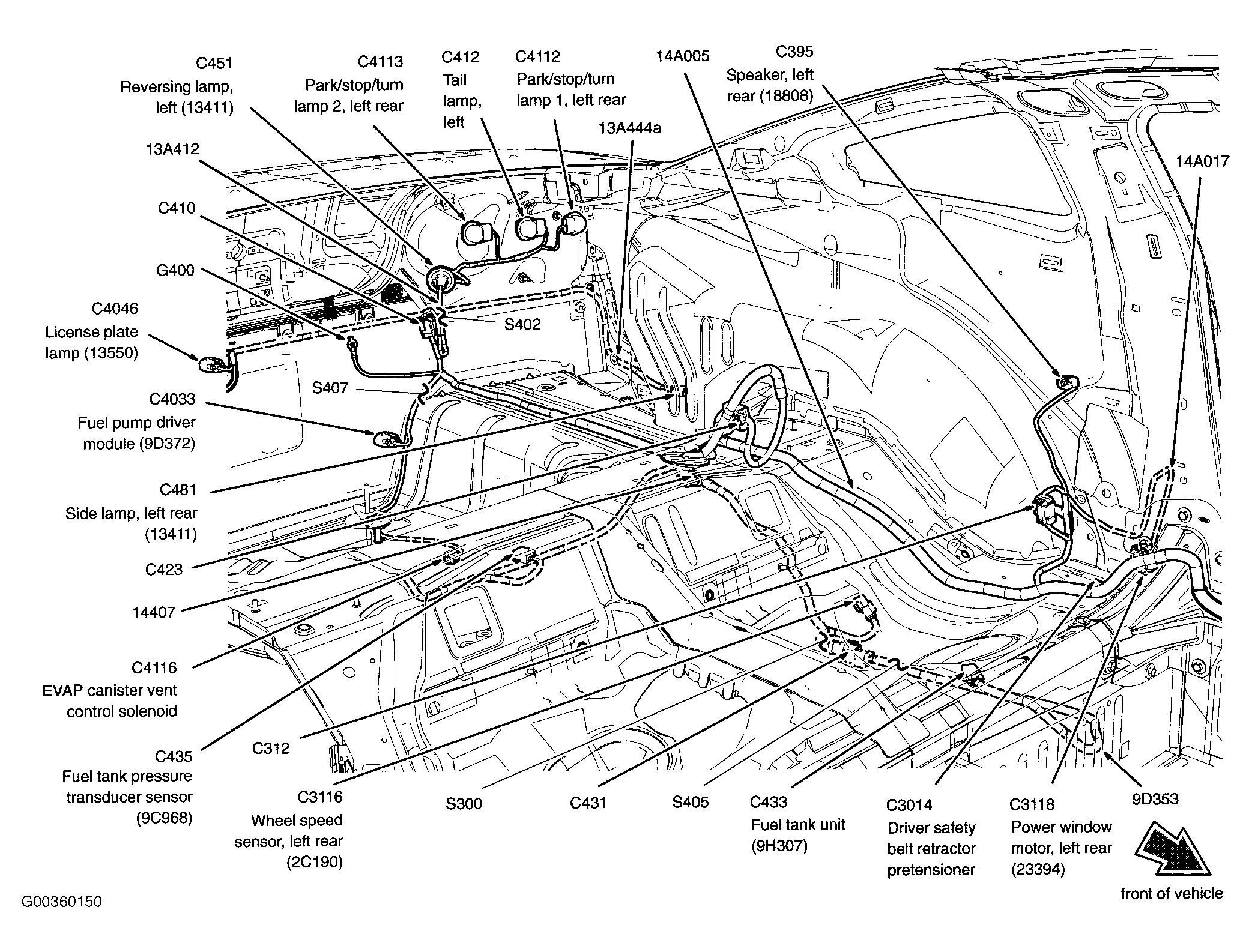

| Fuel Pump Driver Module | Underside of luggage compartment. See Figure . |

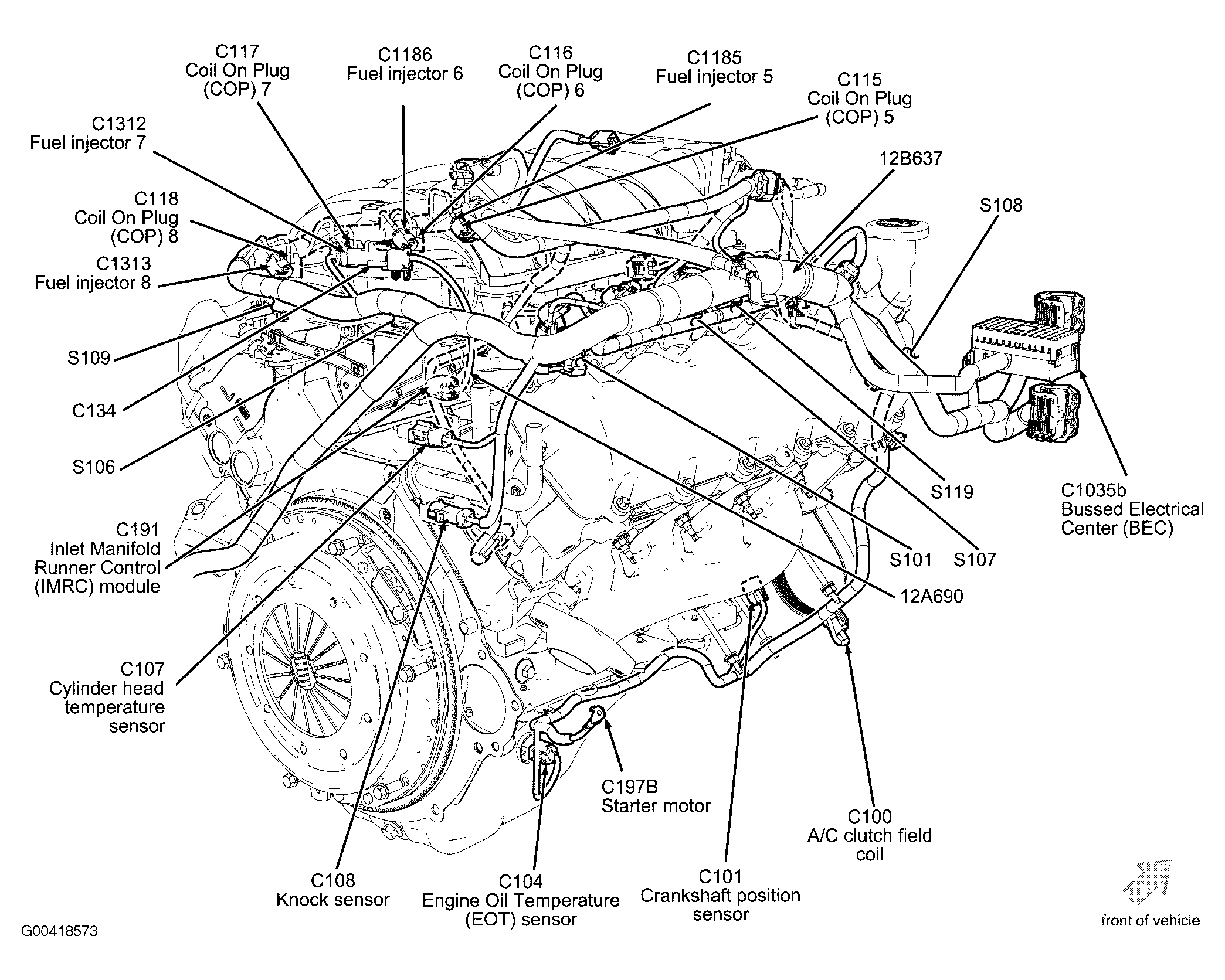

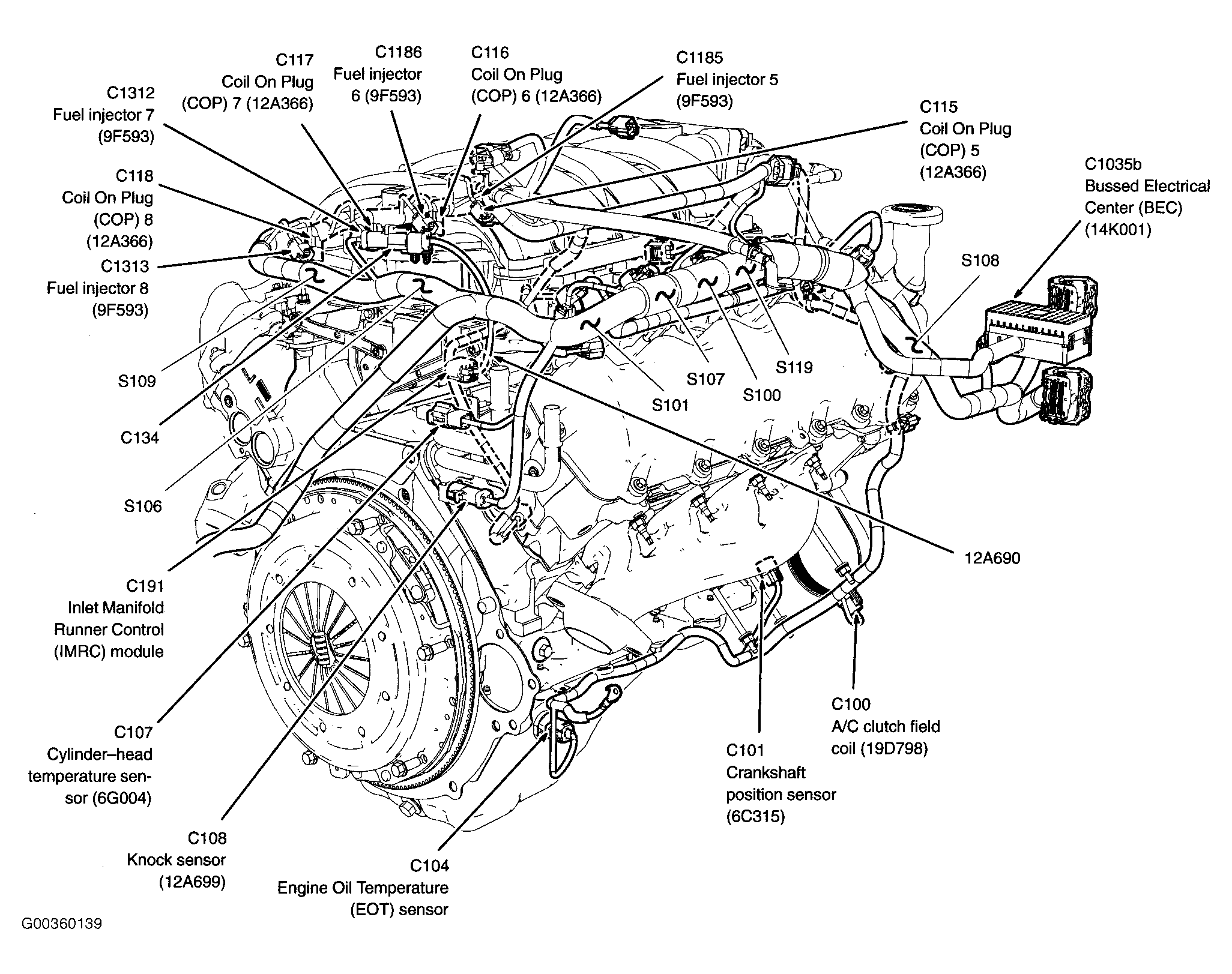

| Inlet Manifold Runner Control (IMRC) Module (4.6L) | At right rear of engine compartment. See Figure . |

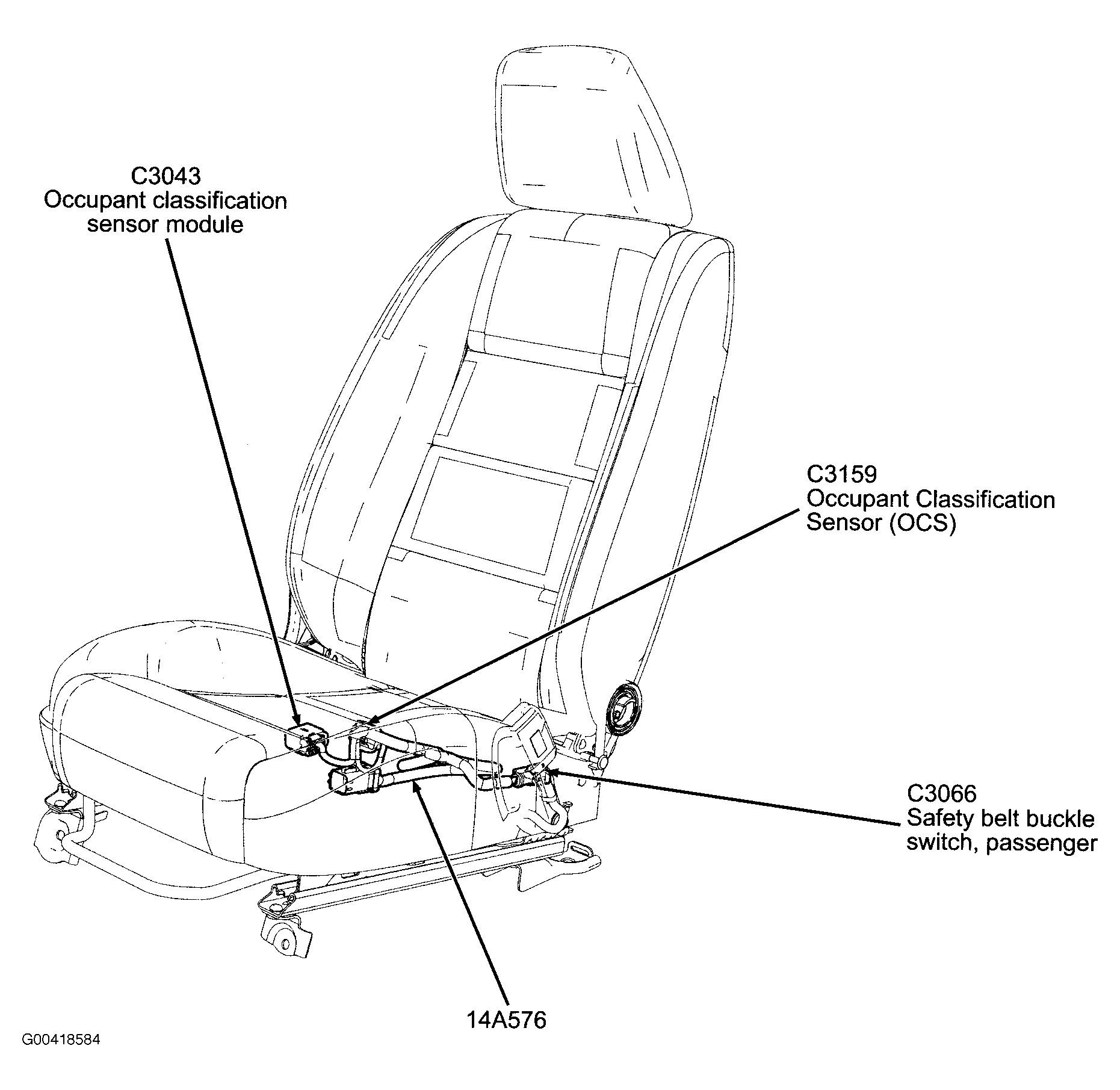

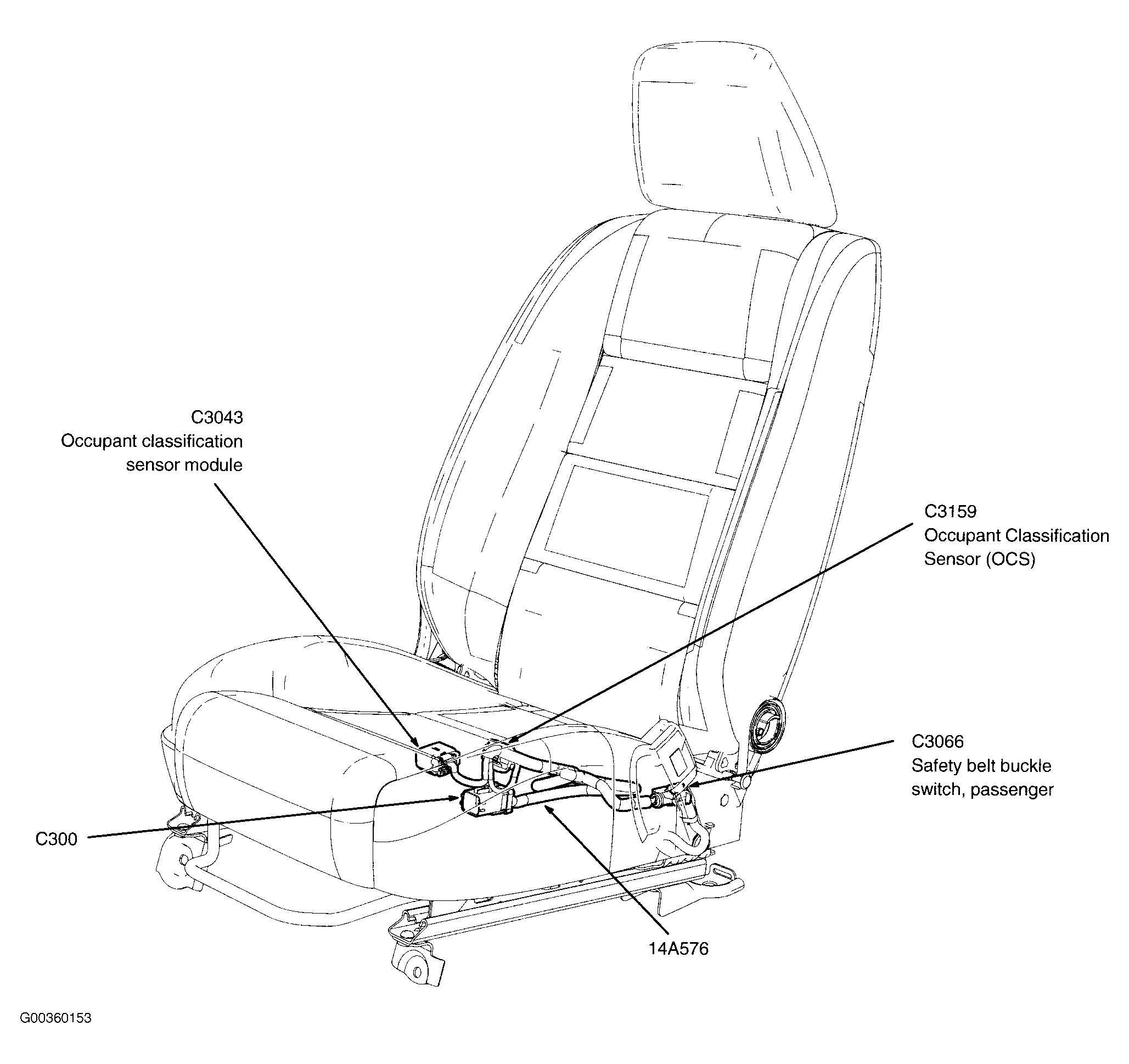

| Occupant Classification Sensor Module | Under passenger's seat. See Figure . |
| Powertrain Control Module | Right front of engine compartment. See Figure . |
| Restraints Control Module | Behind lower center of dash. See Figure . |
