Steering Column Coupling: Notes

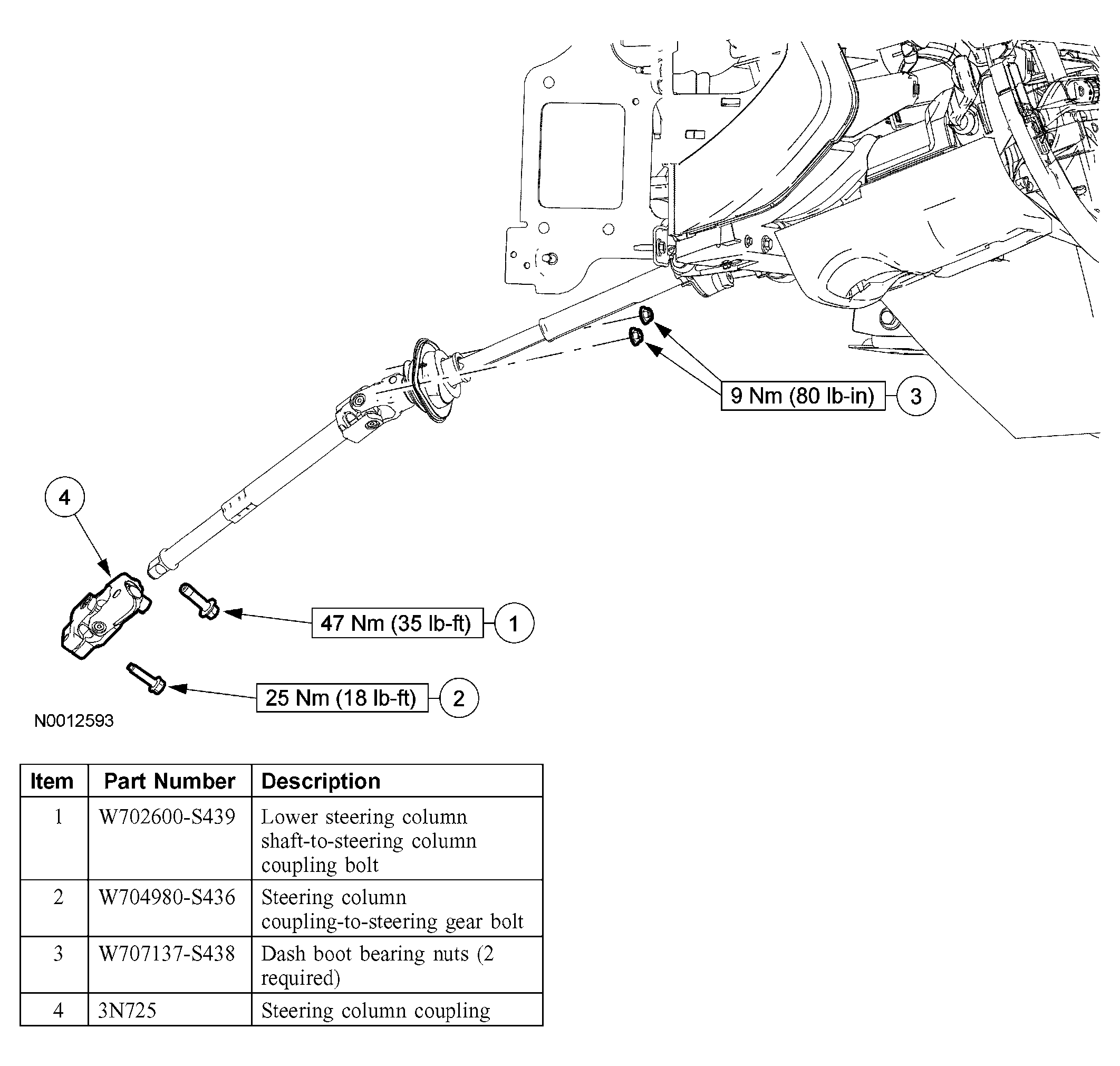

Fig 1: Identifying Components Of Steering Column Coupling
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
