Selector Lever Knob: Installation

  1. Connect the transmission control switch electrical connector.
  2. Wrap the transmission control switch wire around the selector shaft to keep the harness from contacting the sliding mechanism.

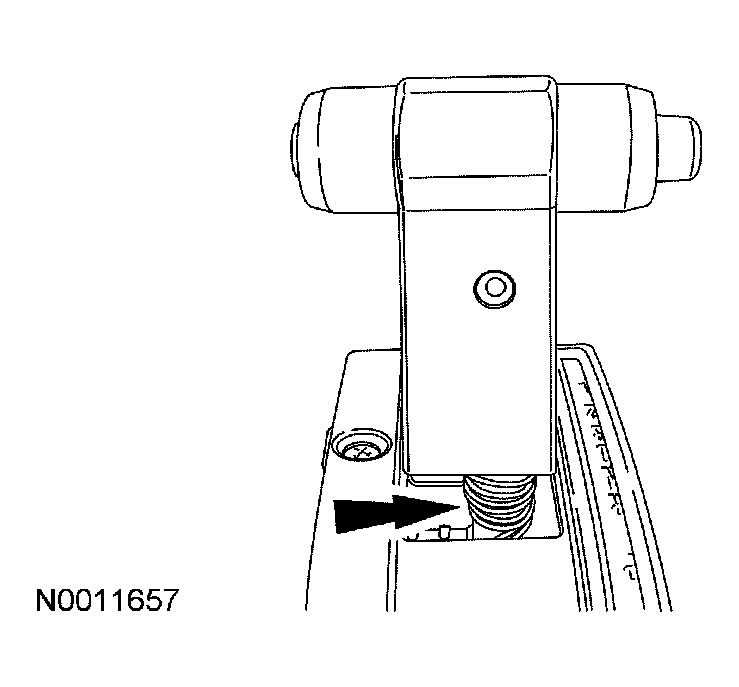

    Fig 1: Connecting Transmission Control Switch Electrical Connector
    G03985644Courtesy of FORD MOTOR CO.
  3. Align the shift knob base screw hole with the selector shaft and install the screw.

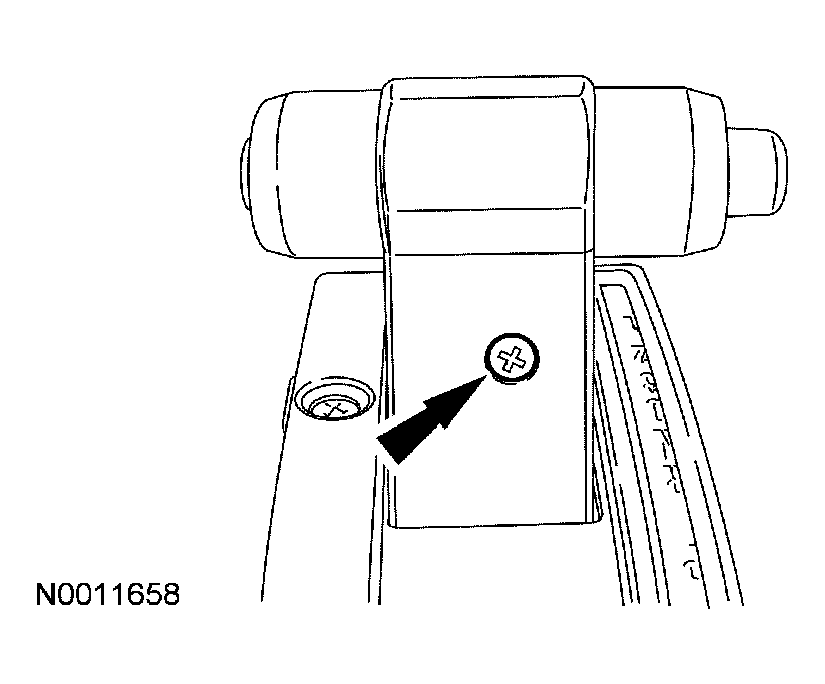

    Fig 2: Installing Screw
    G03985643Courtesy of FORD MOTOR CO.
  4. Install the transmission selector lever assembly in the vehicle. For additional information, refer to SELECTOR LEVER .
