Selector Lever: Installation

Position the transmission selector lever assembly in the vehicle and install the 2 nuts and the 2 screws.
- Tighten to 9 Nm (80 lb-in).

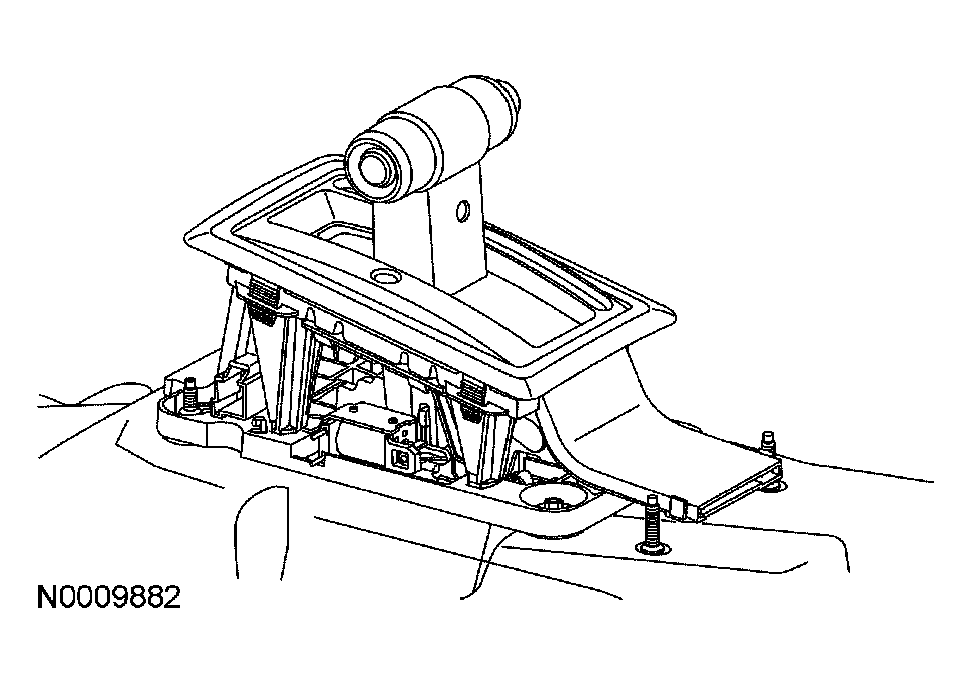

  Fig 1: Installing Transmission Selector Lever Assembly In The Vehicle
  Courtesy of FORD MOTOR CO.
Position the center console base and install the 4 screws.
Install the driver and passenger side center console kick panels.

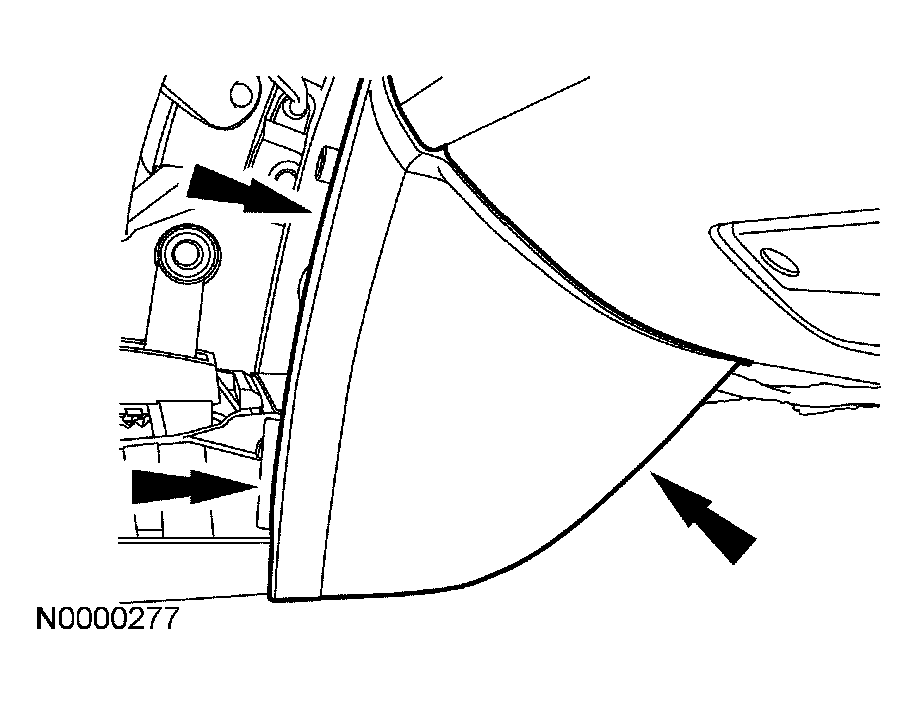

Fig 2: Installing Driver And Passenger Side Center Console Kick Panels
Courtesy of FORD MOTOR CO.
Install the center console top finish panel and the 2 screws.

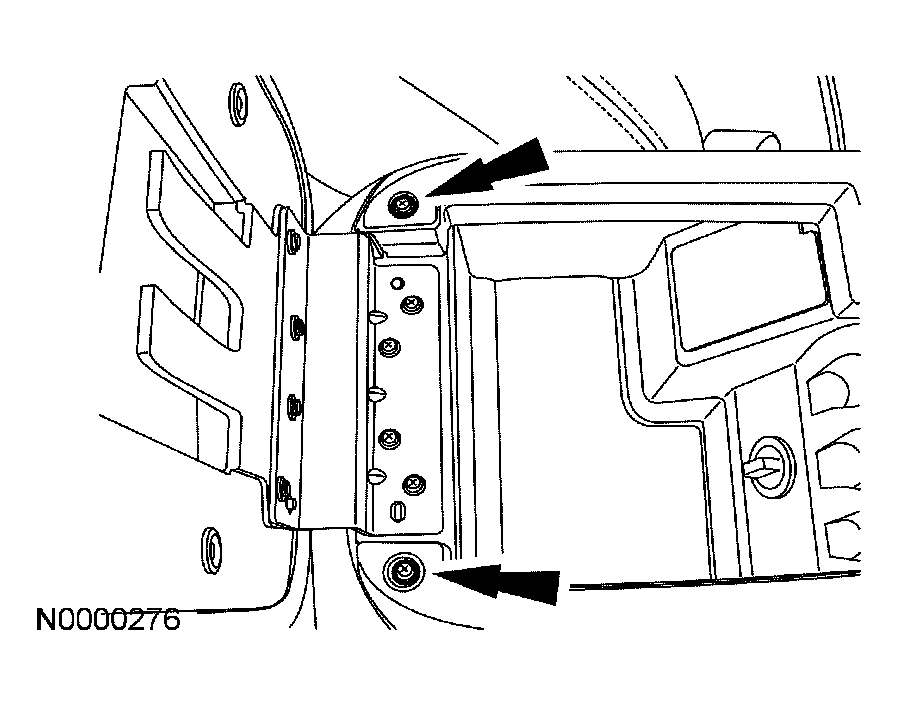

Fig 3: Installing Center Console Top Finish Panel
Courtesy of FORD MOTOR CO.
Install the console shifter bezel.

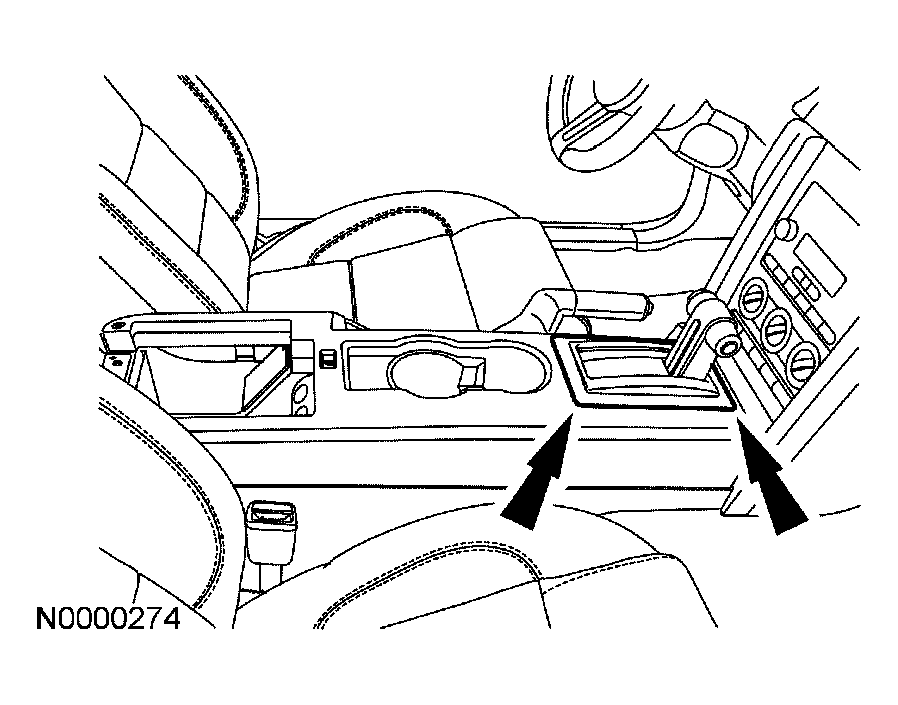

Fig 4: Installing Console Shifter Bezel
Courtesy of FORD MOTOR CO.
Install the transmission shift cable in the transmission selector lever assembly and connect the shift cable eyelet to the selector lever arm.

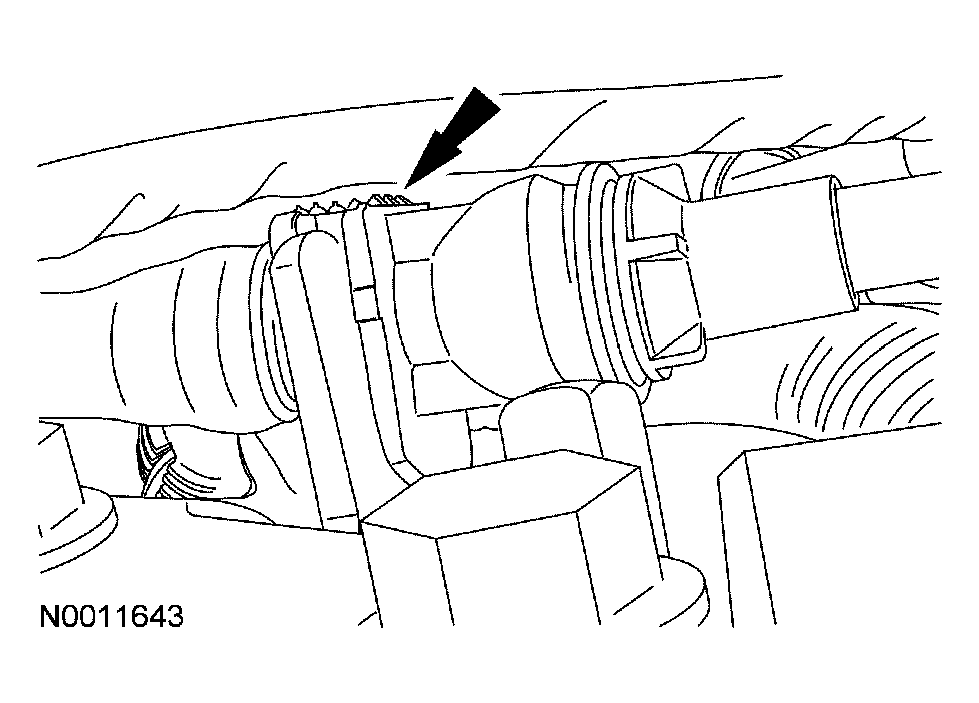

Fig 5: Installing Transmission Shift Cable Into Bracket
Courtesy of FORD MOTOR CO.
Verify the shift cable is adjusted correctly. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .
