Direct Clutch Drum Assembly: Notes

SPECIAL TOOLS

Courtesy of FORD MOTOR CO.	Compressor, Clutch Spring 307-015 (T65L-77515-A)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal 307-049 (T74P-77404-A)

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

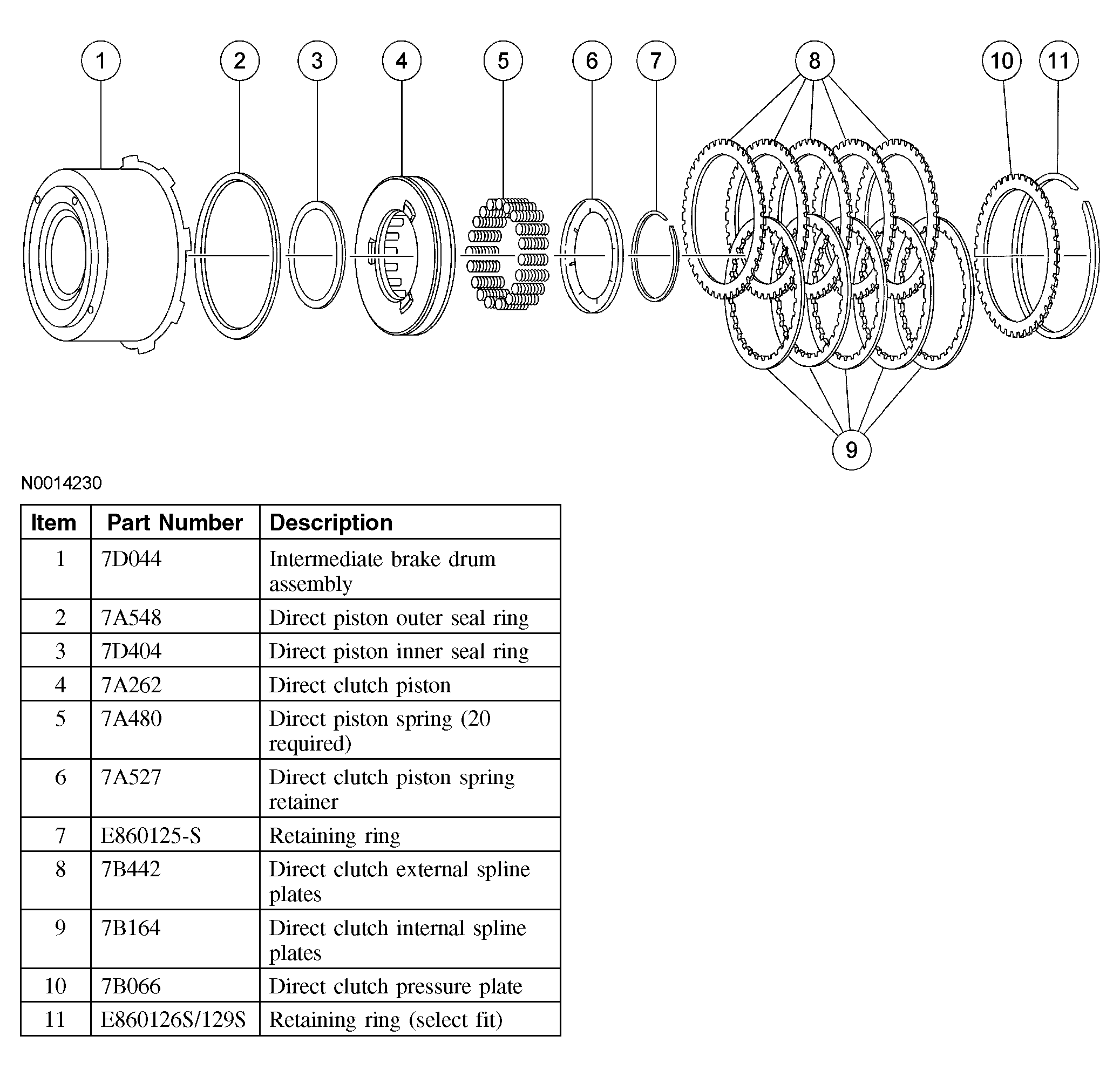

Fig 1: Identifying Direct Clutch Drum Assembly Components

Courtesy of FORD MOTOR CO.
