Fluid Pump: Notes

SPECIAL TOOLS

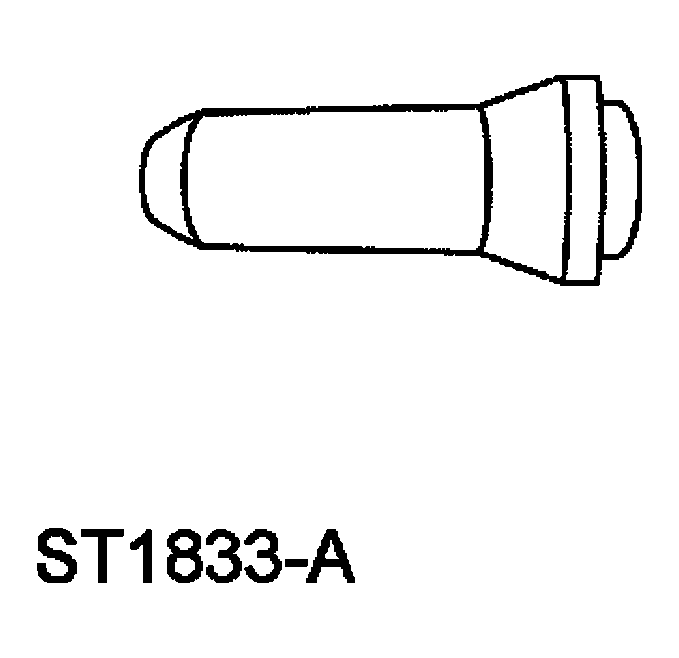

G03915002Courtesy of FORD MOTOR CO.
 Installer, Torque Converter Fluid Seal 307-349 (T97T-77000-A)

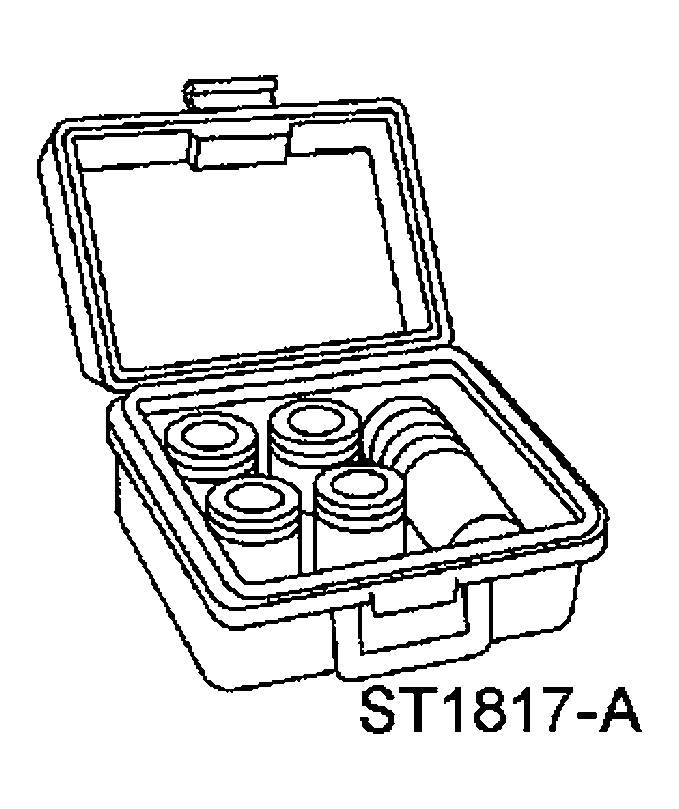

G04008394Courtesy of FORD MOTOR CO.
 Alignment Set, Fluid Pump 307-S039 (T74P-77103-X)

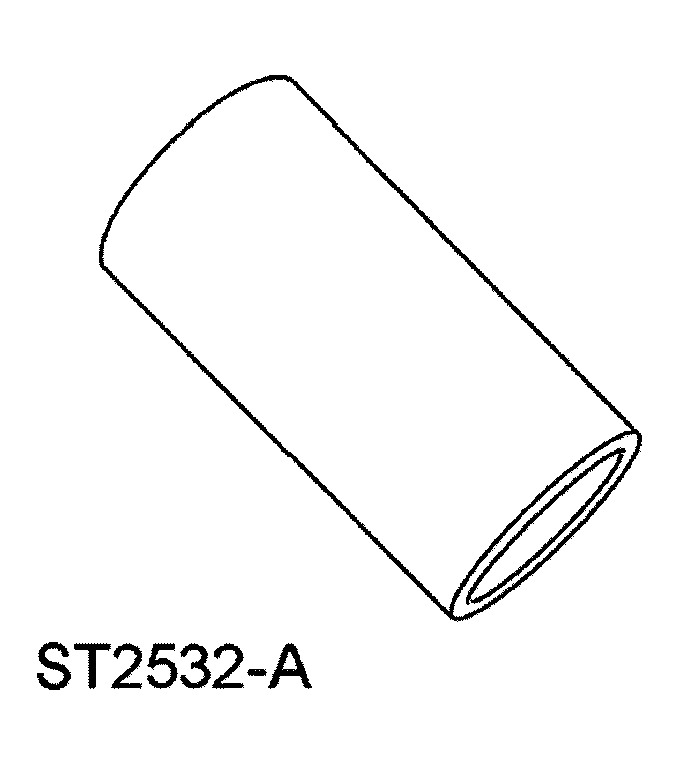

G03949083Courtesy of FORD MOTOR CO.
 Aligner, Fluid Pump Handle 307--431

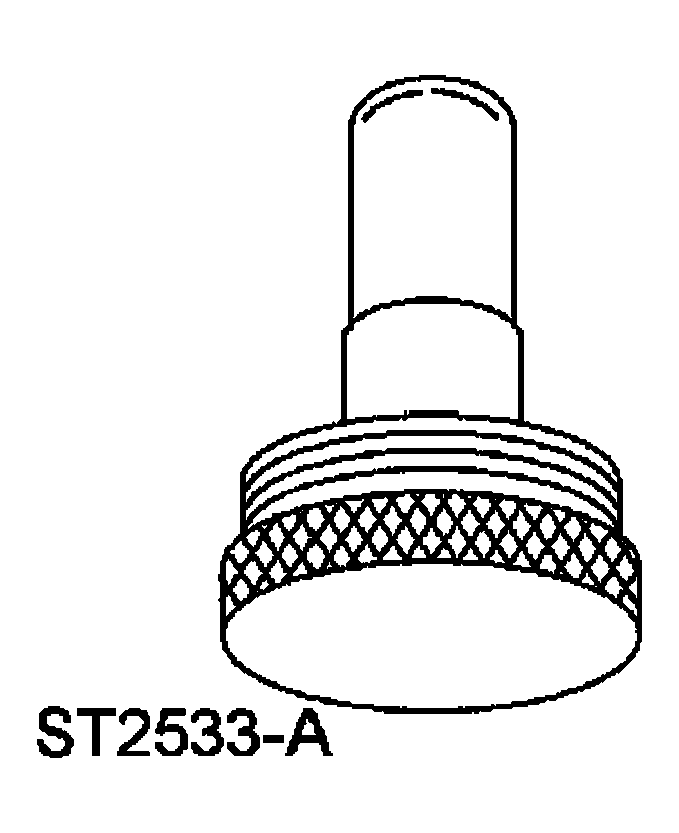

G03997480Courtesy of FORD MOTOR CO.
 Aligner, Fluid Pump Pilot 307--432

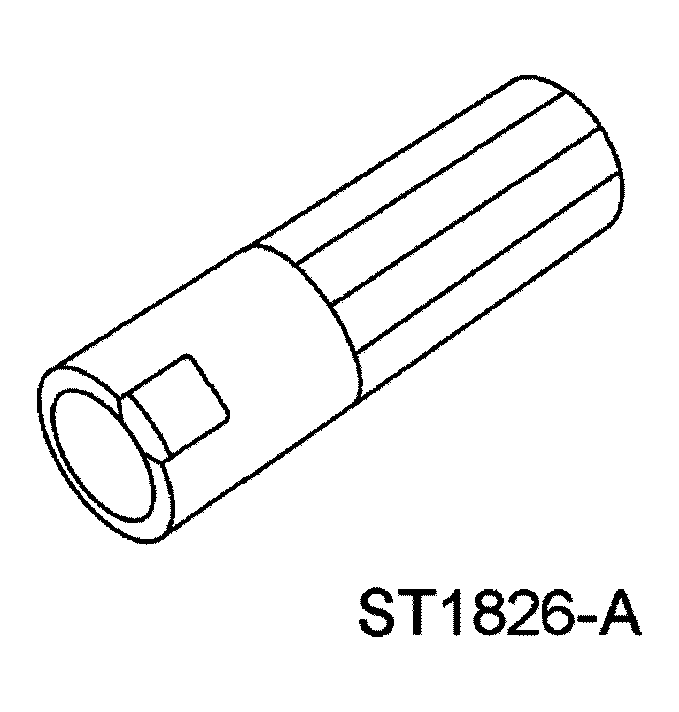

G03949081Courtesy of FORD MOTOR CO.
 Sizer, Piston Seal 307--338 (T95L-70010-G)

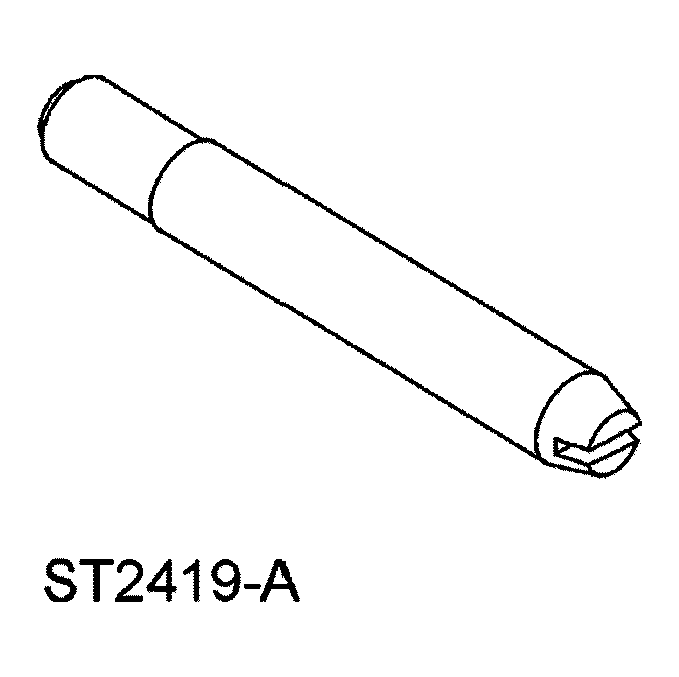

G03948951Courtesy of FORD MOTOR CO.
 Alignment Pins, Transmission Pump 307--398

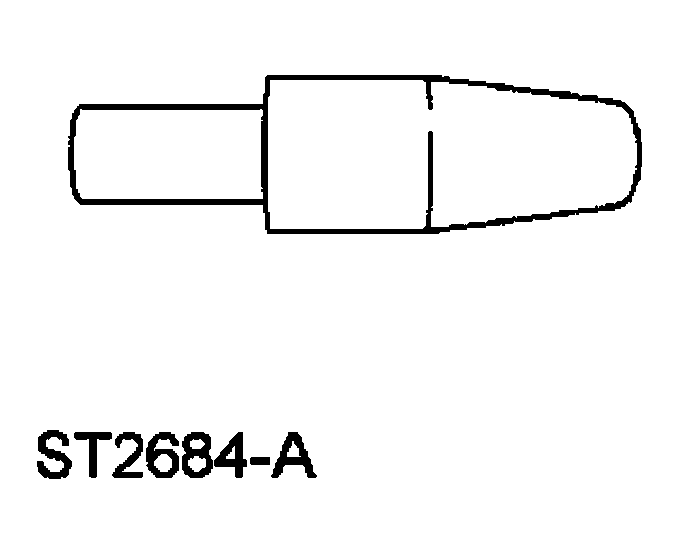

G03997483Courtesy of FORD MOTOR CO.
 Transmission Fluid Pump Seal Aligner 307-451/1

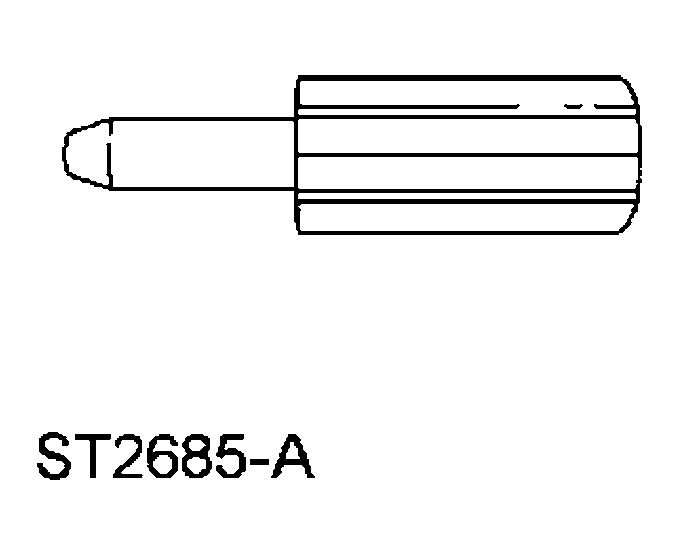

G03985325Courtesy of FORD MOTOR CO.
 Transmission Fluid Pump Seal Sizer 307-451/2

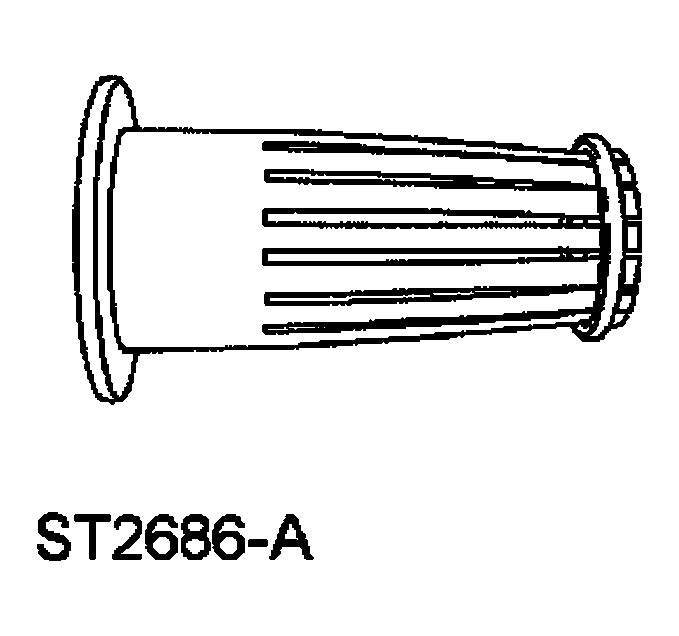

G03997485Courtesy of FORD MOTOR CO.
 Transmission Fluid Pump Seal Installer 307-451/3
MATERIAL SPECIFICATIONS

Item Specification
Multi-Purpose Grease XG-4 ESR-M1C159-A
