Extension Housing Gasket: Notes

SPECIAL TOOLS

G04008227Courtesy of FORD MOTOR CO.
 Installer, Drive Pinion Flange 205--479
G04008228Courtesy of FORD MOTOR CO.
 Installer, Output Shaft Flange 307--404

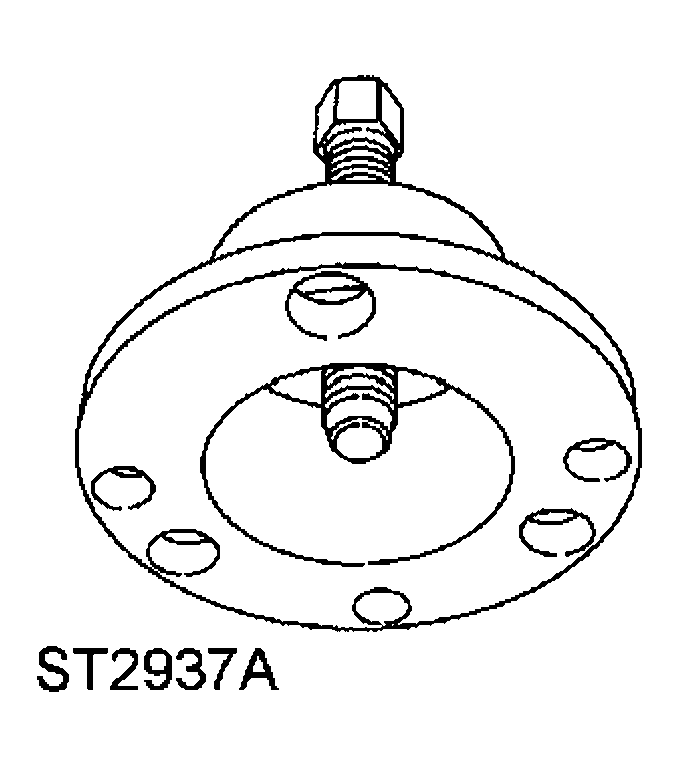

G03985159Courtesy of FORD MOTOR CO.
 Remover, Output Shaft Flange 307--523

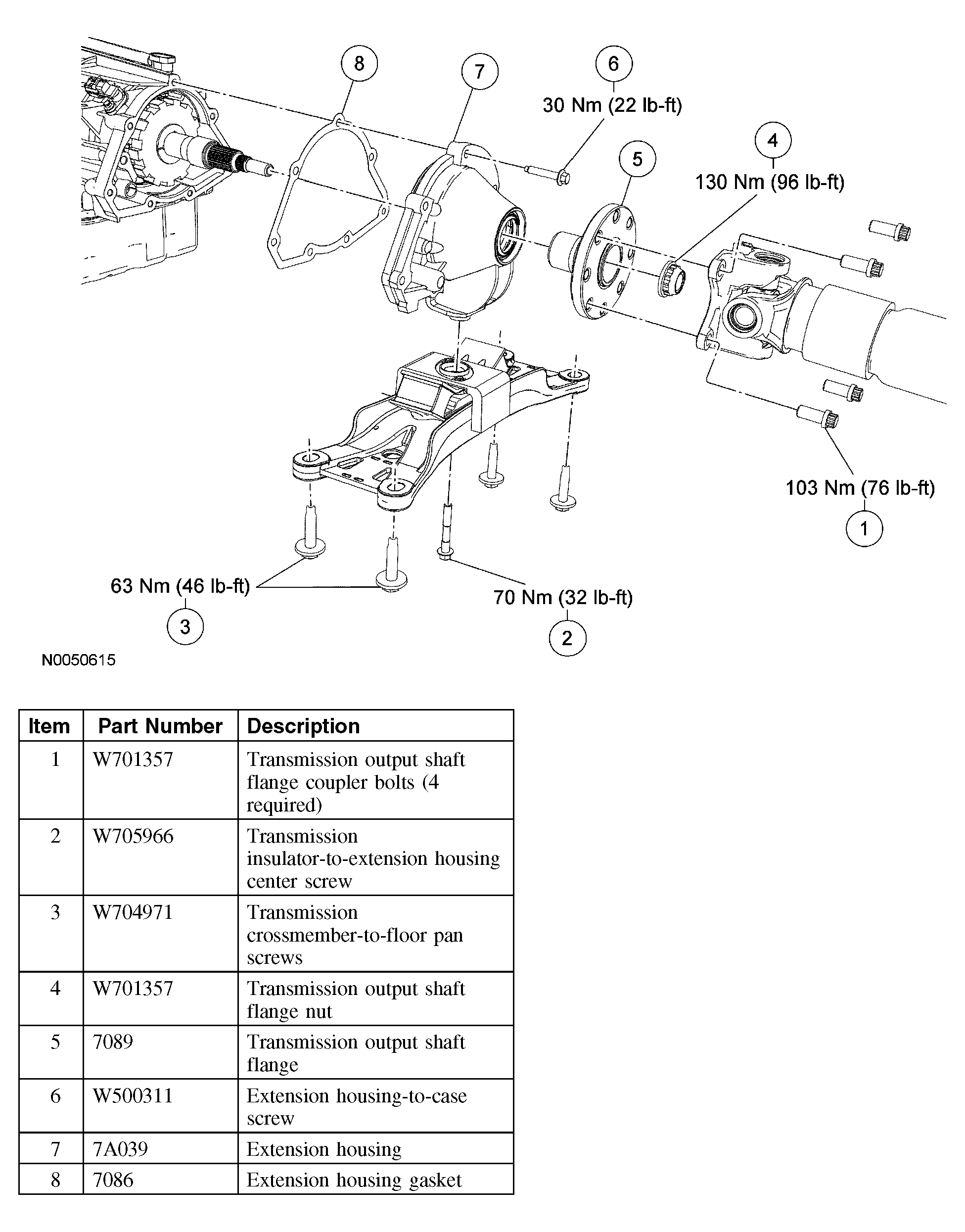

Fig 1: Identifying Extension Housing Gasket
G03985160Courtesy of FORD MOTOR CO.
