Extension Housing Seal: Notes

SPECIAL TOOLS

G03885061Courtesy of FORD MOTOR CO.
Slide Hammer 100-001 (T50T-100-A)
G03922675Courtesy of FORD MOTOR CO.
Remover, Torque Converter Fluid Seal 307--309 (T94P-77001-BH)
G03985144Courtesy of FORD MOTOR CO.
Installer, Drive Pinion Oil Seal 205--115
G04008227Courtesy of FORD MOTOR CO.
Installer, Drive Pinion Flange 205-479
G04008228Courtesy of FORD MOTOR CO.
Installer, Output Shaft Flange 307-404

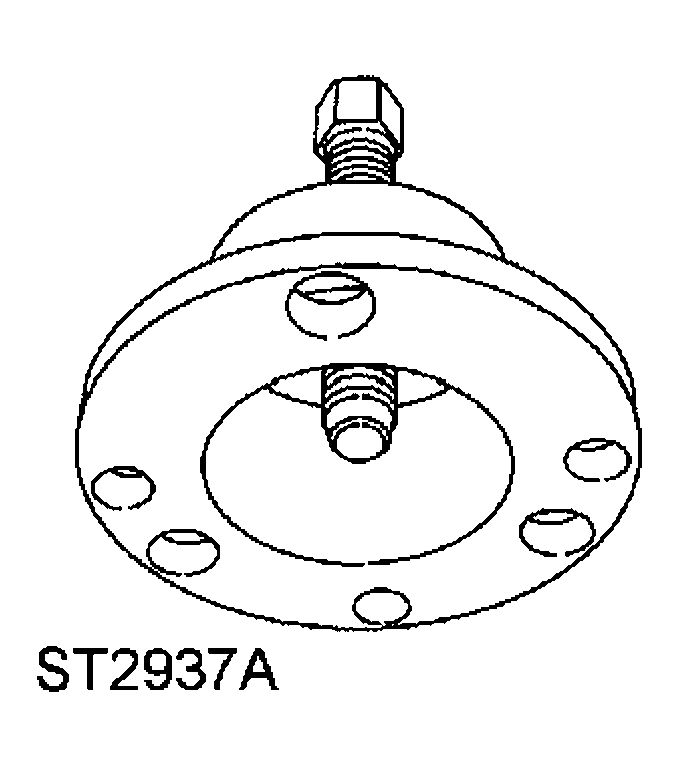

G03985147Courtesy of FORD MOTOR CO.
Remover, Output Shaft Flange 307--523

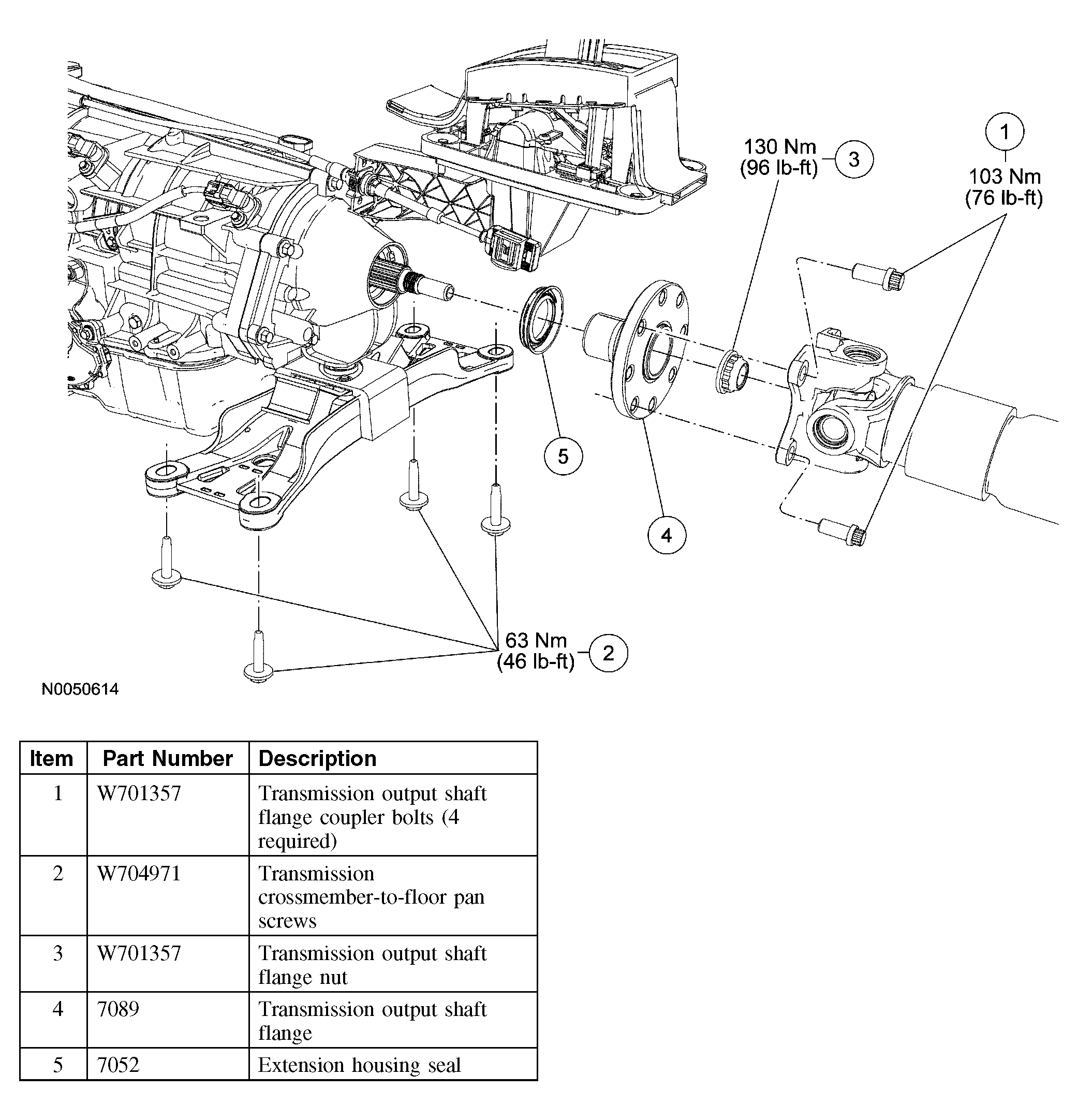

Fig 1: Identifying Extension Housing Seal Components
G03985148Courtesy of FORD MOTOR CO.
