Removal and Installation

CAUTION: Electronic modules are sensitive to electrical charges. The ABS module can be damaged if exposed to these charges.

Remove the bolt and position the air cleaner assembly aside.
- To install, tighten to 8 Nm (71 lb-in).
Disconnect the ABS module electrical connector.
Remove the 4 screws and the ABS module.

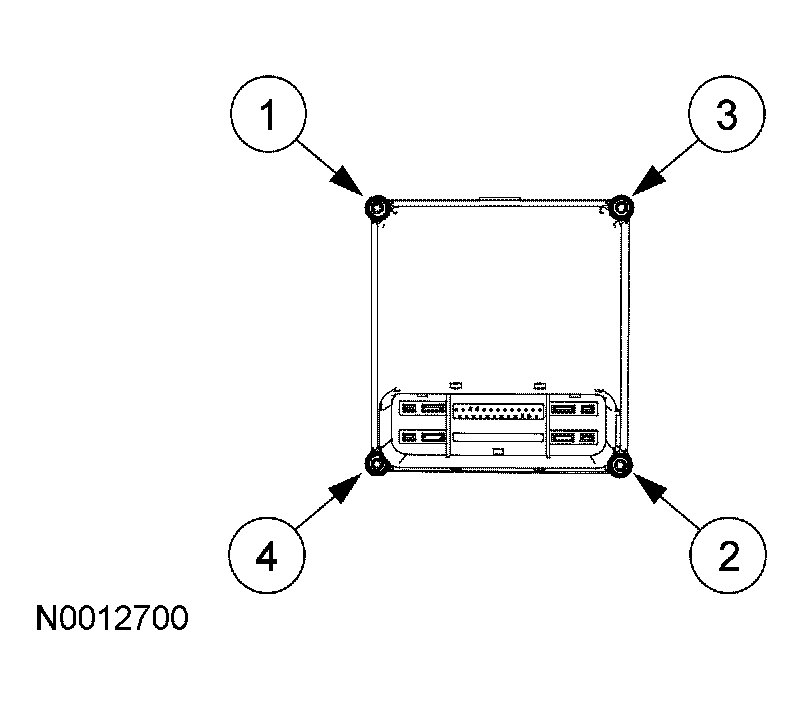

- To install, tighten to 3 Nm (27 lb-in) in the sequence shown.

  Fig 1: Removing ABS Module
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
