Steering Column Shaft - Lower: Notes

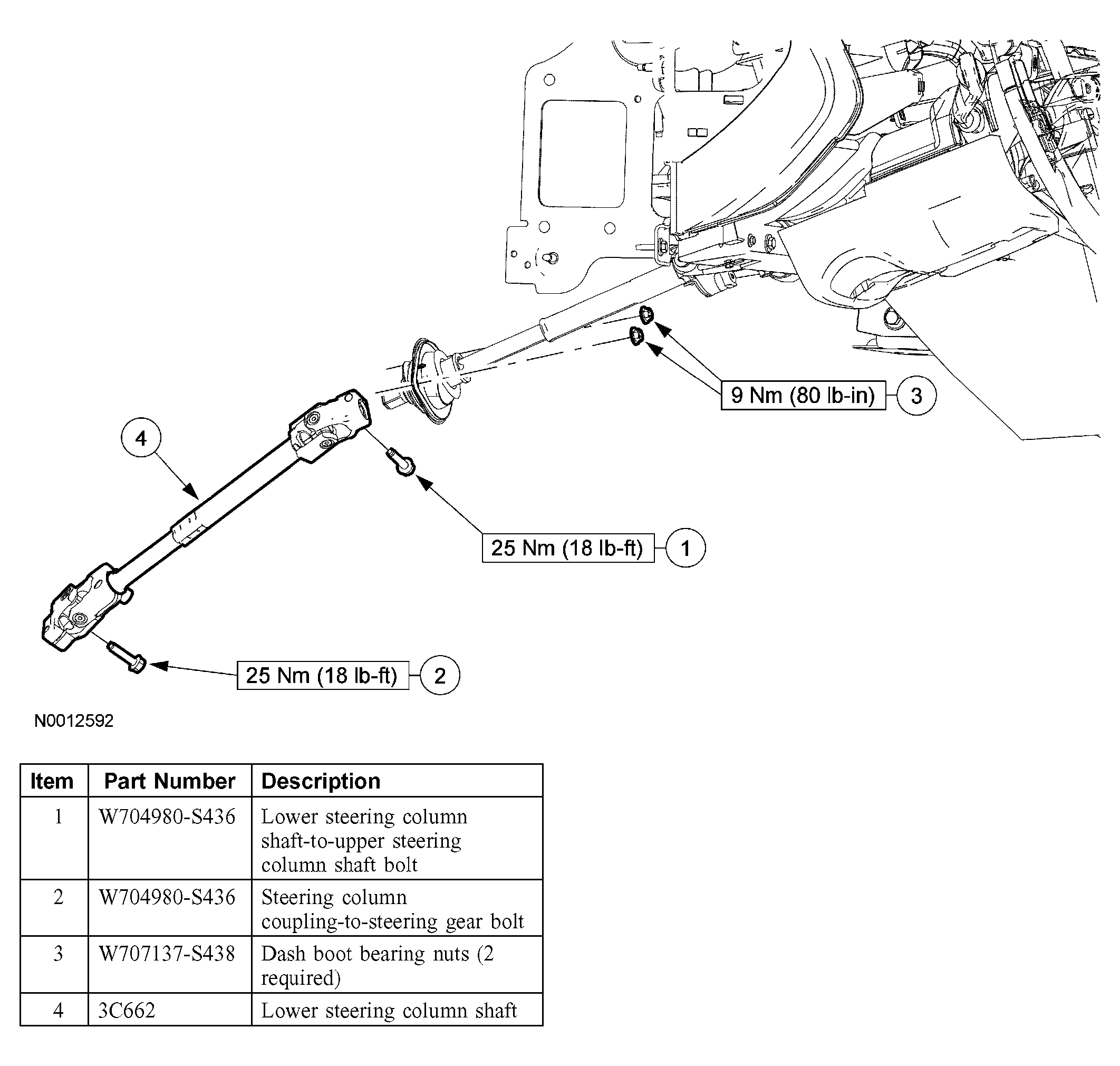

Fig 1: Identifying Components Of Steering Column Shaft - Lower

G03983542

Courtesy of FORD MOTOR CO.
