Home >> Ford >> 2005 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Front Engine Block
April 5, 2026: LEMON Manuals is launched! Read the announcement.

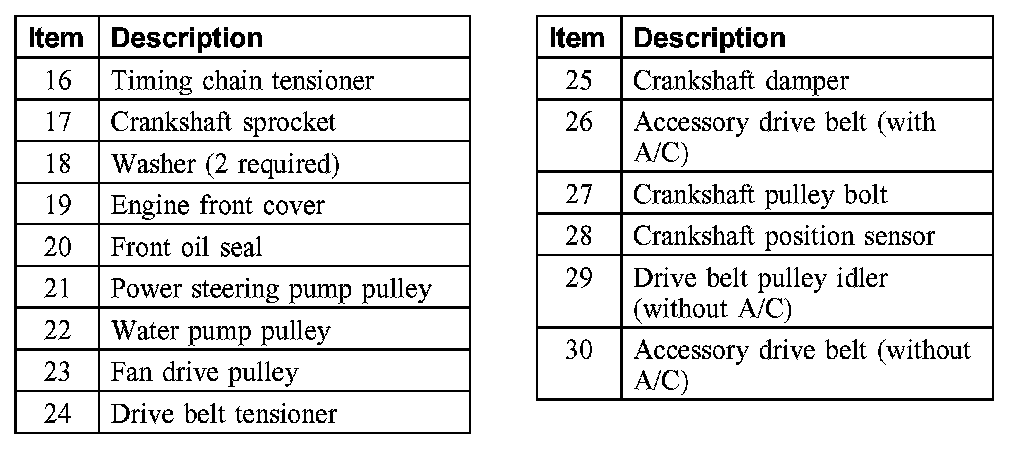

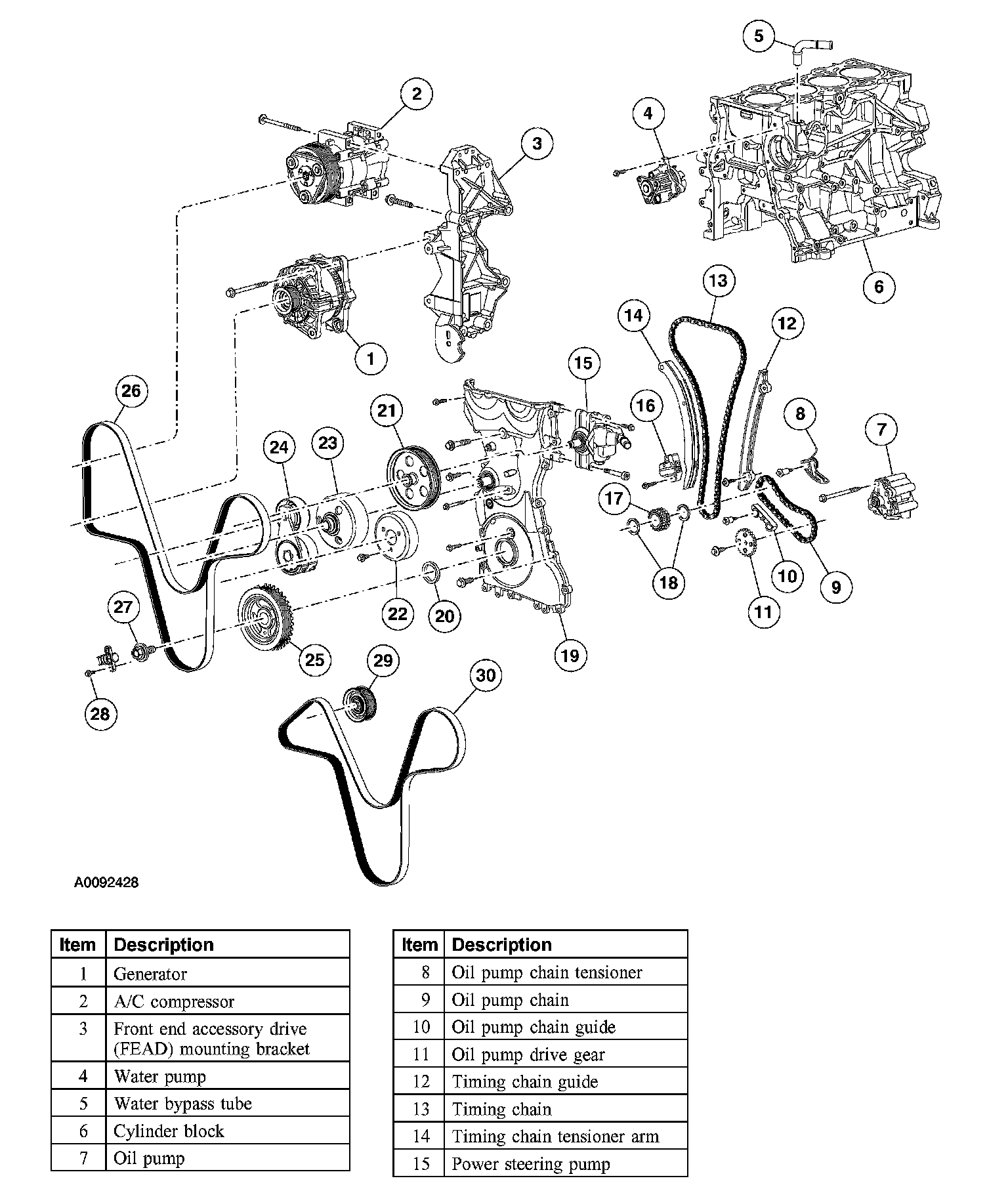

Front Engine Block
