Ignition Switch: Service and Repair

Ignition Switch
Removal and Installation
1. Depower the supplemental restraint system (SRS). Refer to Air Bag Systems.

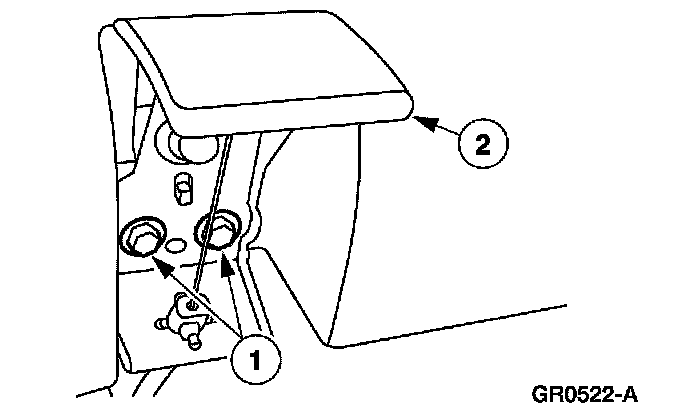

2. Detach the hood latch release handle and position aside.
1. Remove the bolts.
2. Position the hood latch release handle aside.





3. Remove the lower instrument panel steering column cover.
1. Remove the screws.
2. Remove the lower instrument panel steering column cover.

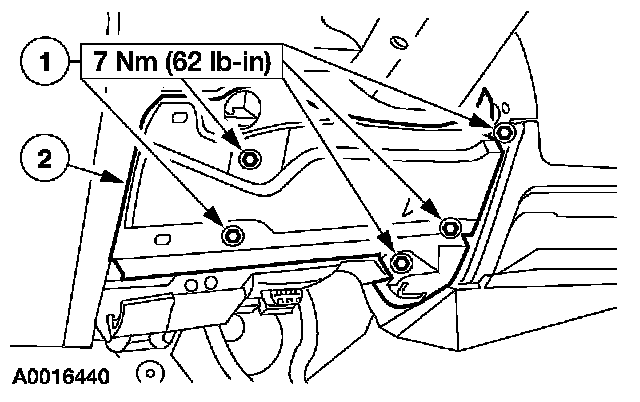

4. Remove the instrument panel steering column opening cover reinforcement.
1. Remove the bolts.
2. Remove the instrument panel steering column opening cover reinforcement.
5. Disconnect the ignition switch electrical connector.

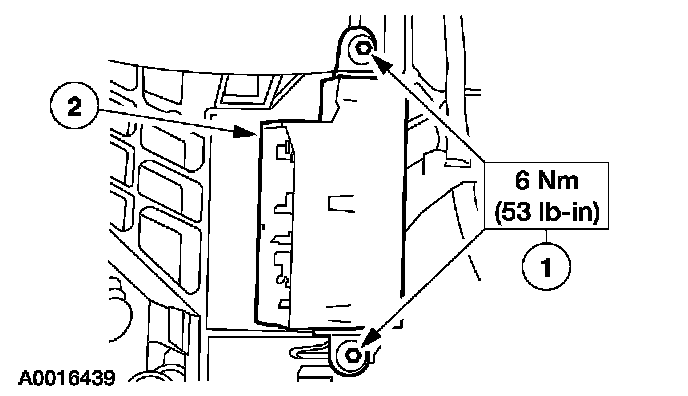

6. NOTE: The ignition switch should be in the OFF position.

Remove the ignition switch.
1. Remove the screws.
2. Remove the ignition switch.
7. To install, reverse the removal procedure.
