Test I: No Module/Network Communication

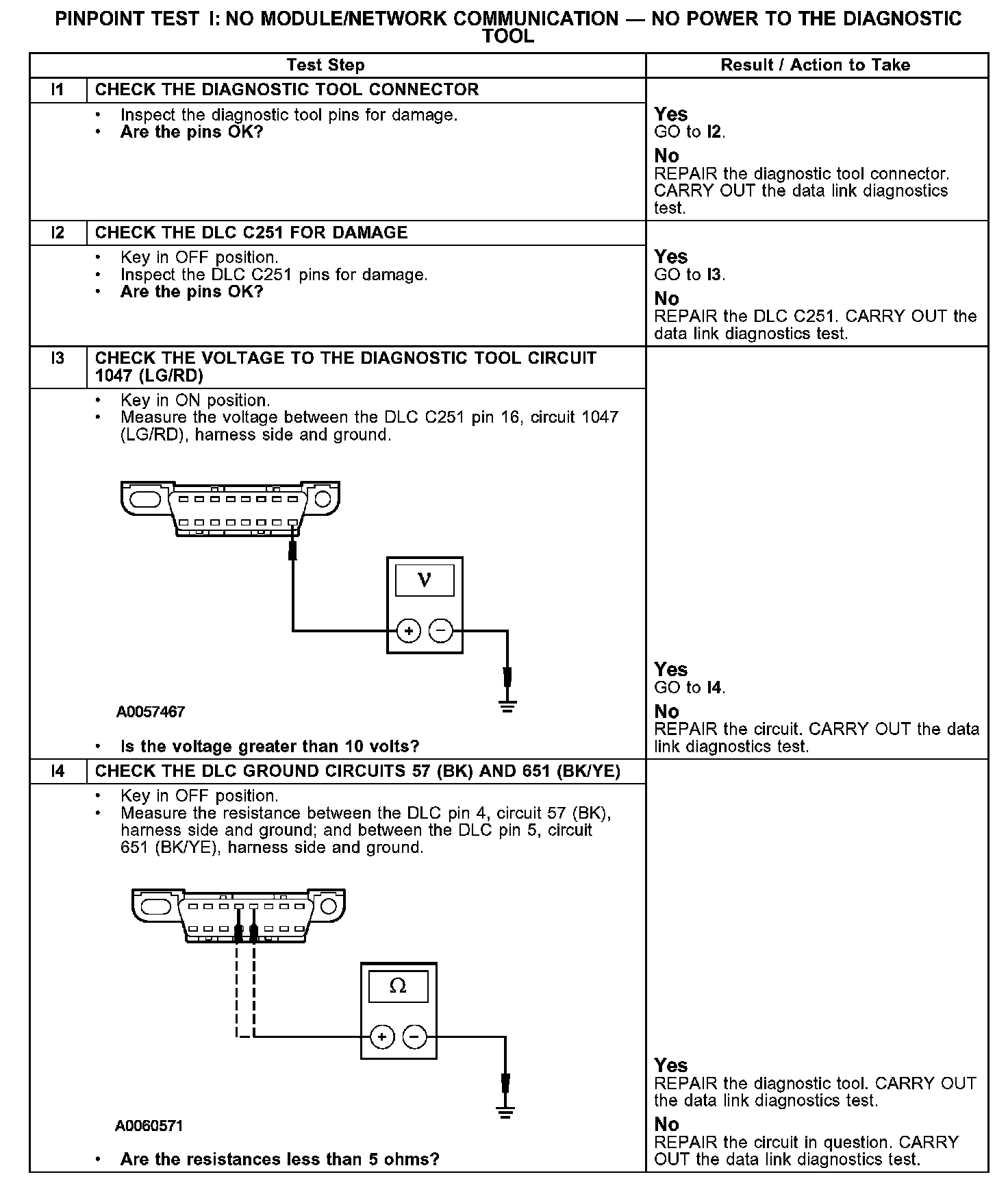

PINPOINT TEST I: NO MODULE/NETWORK COMMUNICATION NO POWER TO THE DIAGNOSTIC TOOL


Test I1-I4:
