System Specifications

CRANKSHAFT PULLEY
Crankshaft Pulley Bolts 50 Nm (37 ft. lbs.)

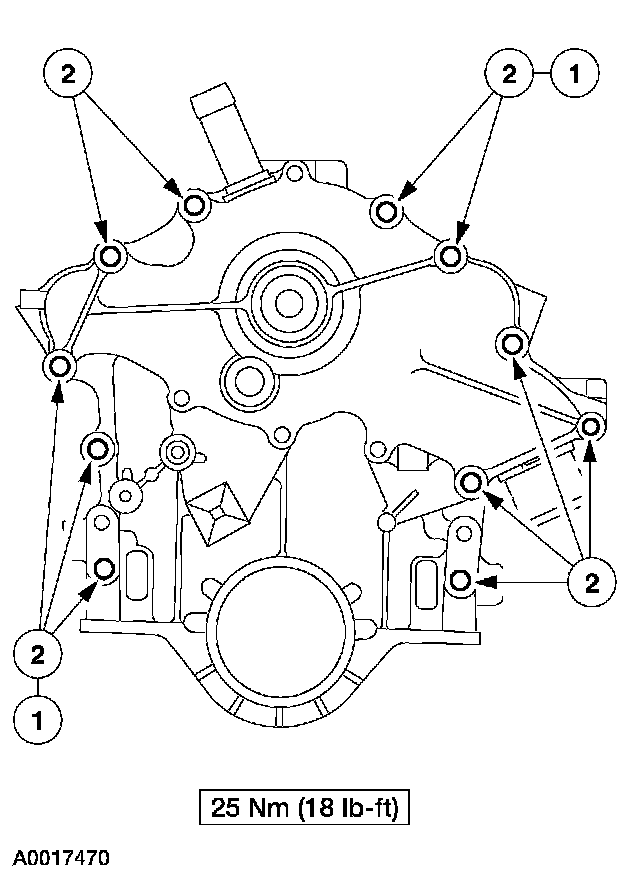

FRONT COVER






Front Cover Bolts 25 Nm (18 ft.lbs.)

CRANKSHAFT DAMPER
Crankshaft Damper Bolt 145 Nm (107 ft.lbs.)
