Hydraulic Control Unit (HCU): Notes

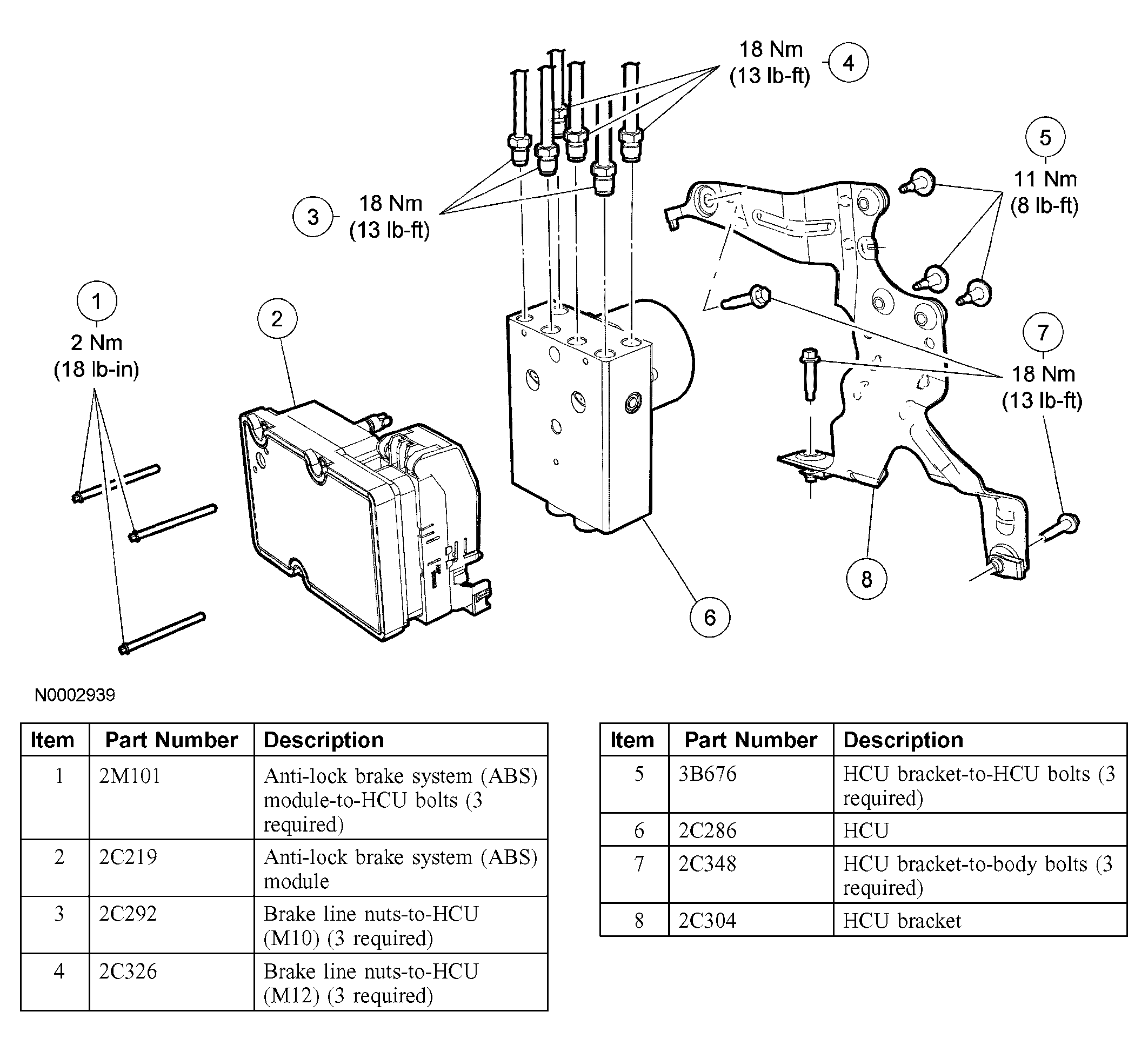

Fig 1: Removing Hydraulic Control Unit With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
